Designed for agricultural implements requiring dependable power transfer and driveline protection. The FD2 slip clutch helps reduce shock loads and overload conditions that can damage driveline and gearbox components during operation.
This PTO shaft is suitable for a variety of agricultural applications requiring reliable PTO performance and smooth power transmission. The telescoping driveline design accommodates implement movement while maintaining efficient operation in field conditions.
Designed for ditchers and other agricultural implements requiring a flange-style implement connection. This Series 8 PTO shaft provides reliable power transfer and durable driveline performance in demanding field conditions.
The flange plate features a 4-hole mounting pattern with holes measured approximately 5.94 in. apart in an X pattern and a hole diameter of 5/16 in. for secure implement attachment. The driveline design accommodates implement movement while maintaining dependable power transmission during operation.
Suitable for heavy-duty agricultural applications requiring a ditcher flange implement connection.
Product Detail
Assembly Description
AX8910A-FLANGE/MC
Brand
Eurocardan
Description
Ditcher Special Flange Plate on I.E. - 13/8 in. x 6 Spline MC T.E.
Restore reliable power transfer to your post hole digger with this durable auger gearbox. Built with a ductile iron housing for long lasting strength and dependable field performance.
Features a 1-1/4 in. smooth input shaft and a 2 in. smooth output shaft for standard fitment. Includes a bevel gear system with a 2.92:1 gear ratio for efficient torque conversion. Compatible with 30-45 HP for standard post hole digging applications. Uses 90 weight gear oil for lubrication. Manufacturer Part Number: RW-260.
Installation & Oil Fill Tip:
To properly fill with oil, remove the 1/4 in. plug at the rear of the gearbox and pour 90 weight gear oil through the top plug until it starts running out of the 1/4 in. plug. Replace and tighten the plug snugly.
This Series 5 PTO shaft connects to the transmission of agricultural machines and operates in rotational motion. It features a tractor end and an implement end, both with female connections for secure power transfer in demanding farm applications.
The slip clutch is designed to engage when torque exceeds safe levels, protecting the implement gearbox from damage. Built for reliable performance, this assembly delivers consistent power transfer in heavy-duty agricultural operations.
Keep PTO-driven equipment operating efficiently with this Series 6 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.
This PTO assembly features 1-3/8 in. 6-spline yokes on both the implement and tractor ends for secure PTO driveline connections. Rated for 62 HP at 540 RPM and 98 HP at 1000 RPM, it is designed to provide dependable operation and efficient power transfer for PTO-driven agricultural equipment.
Keep PTO-driven equipment operating efficiently with this Series 5 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.
This PTO assembly features an FD2 slip clutch and 1-3/8 in. 6-spline connections for implement and tractor compatibility. Rated for 47 HP at 540 RPM and 72 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.
Product Detail
Assembly Description
AX51071-16401
Brand
Eurocardan
Description
FD2 Slip Clutch - 1-3/8 in. x 6 Spline
HP at 1000 RPM
72 HP
HP at 540 RPM
47 HP
Series Size
5
Type
PTO Assembly
Used On
5 ft HD Lift Cutter, 8 ft Lift Type Main Drive, Medium Duty Tillers
This Series 6 PTO shaft features a tractor end and implement end, both equipped with quick detach yokes for fast, tool-free connection and disconnection. Designed as a replacement shaft, it is suitable for various agricultural applications requiring reliable power transfer.
Built for heavy-duty performance, this PTO shaft delivers consistent operation in demanding farm environments. The quick detach yokes on both ends simplify installation and removal, reducing downtime during equipment changes.
Restore reliable power transfer to your rotary cutter with this heavy duty replacement gearbox. Built with a ductile iron housing for long lasting strength and dependable field performance in demanding mowing applications.
Features a 1-3/8 in. smooth input shaft and a 1-1/2 in. 12-spline output shaft for standard fitment. Operates at a maximum of 540 RPM with a 1:1.93 gear ratio and bevel gear design for efficient torque conversion. Designed for 4, 5, and 6 ft. rotary cutters with 35-45 HP compatibility. Mounting features 4 holes with a 5/8 in. size on a 6-3/4 in. bolt pattern. Manufacturer Part Number: RW-300.
This Series 4 PTO shaft operates in rotational motion and features a tractor end and implement end, both with female connections for secure power transfer. The slip clutch is designed to engage when torque exceeds safe levels, protecting the implement gearbox from damage.
Built for reliable agricultural performance, this PTO shaft includes safety chains for secure operation. The dual female yoke configuration ensures balanced power transfer from tractor to implement in demanding farm environments.
Restore reliable power transfer to your rotary cutter with this heavy duty replacement gearbox. Built with a ductile iron housing for long lasting strength and dependable field performance in demanding mowing applications.
Features a 1-3/8 in. smooth input shaft and a 1-1/2 in. 12-spline output shaft for standard fitment. Operates at a maximum of 540 RPM with a 1:1.47 gear ratio and bevel gear design for efficient torque conversion. The input shaft can rotate clockwise or counter-clockwise for versatile installation. Designed for 4, 5, and 6 ft. rotary cutters with 40 HP compatibility. Fits many brands of mowers.
Mounting features 4 holes with a 5/8 in. size on a 6-3/4 in. bolt circle, with 4-3/4 in. distance between mounting holes and a 3/8 in. mounting base thickness. Stands 9 inches tall overall. Uses 90 weight gear oil (not included). The input shaft snap ring is included and located in the plastic tube attached to the shaft. Manufacturer Part Number: RW-300.
This AJ4 44-19/32 in. OL series 4 constant velocity PTO shaft delivers smooth and reliable power transfer from tractor to implement. Equipped with 6-spline connections on both the tractor and implement ends, this shaft uses metal pull collar assemblies for secure attachment.
Featuring a constant velocity design for uniform rotation at varying angles, this PTO shaft is built for durability and dependable performance in demanding agricultural field conditions.
This Series 6 PTO shaft features a tractor end with a quick detach yoke and an implement end with a smooth bore, making it suitable for various agricultural applications. The quick detach yoke allows for fast, tool-free connection and disconnection.
Built for heavy-duty performance, this PTO shaft delivers reliable power transfer in demanding farm environments. The smooth bore implement end with keyway and set screw ensures secure attachment for compatible equipment.
Restore reliable power transfer to your rotary cutter with this heavy duty replacement gearbox. Built with a ductile iron housing for long lasting strength and dependable field performance in demanding mowing applications.
Features a 1-3/8 in. 6-spline input shaft and a 1-1/2 in. 12-spline output shaft for standard fitment. Operates at a maximum of 540 RPM with a 1:1.47 gear ratio and bevel gear design for efficient torque conversion. Designed for 4, 5, and 6 ft. rotary cutters with 35-45 HP compatibility. Mounting features 4 holes with a 5/8 in. size on a 6-3/4 in. bolt pattern.
**Installation Tip:** After installing the pan and blades onto the gearbox, ensure the blades when turned back toward the gearbox shaft do not hit the shaft or nut but clear them before using the rotary cutter.
Manufacturer Part Number: RW-300-6S.
Product Detail
Bevel
Yes
Brand
Grizzly
Capacity
40 HP
Description
Mounting Pattern: (4) 3/4 in. Holes - 8 in. Pattern - 5.5 in. Center
This Series 6 PTO shaft features a tractor end with a quick detach yoke and an implement end with a standard yoke, making it suitable for various agricultural applications. The quick detach yoke allows for fast, tool-free connection and disconnection.
Built for heavy-duty performance, this PTO shaft delivers reliable power transfer in demanding farm environments. The dual yoke configuration ensures secure, balanced power transfer from tractor to implement.
This Series 4 PTO shaft is designed for use with tillers and features a tractor end yoke and an implement end yoke. The tractor end includes a quick detach yoke with a splined connection, while the implement end features a smooth yoke with a slip clutch for overload protection.
The slip disc clutch helps protect machinery gears from potential damage during sudden torque spikes. Built for reliable agricultural performance, this PTO shaft delivers consistent power transfer in demanding tilling operations.
Keep PTO-driven equipment operating efficiently with this Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.
This PTO assembly features an FD1 slip clutch and 1-3/8 in. 6-spline connections for implement and tractor compatibility. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.
Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.
This PTO assembly features an FDO slip clutch and 1-3/8 in. x 6-spline connections for implement and tractor compatibility. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.
Connected to the transmission, this tiller PTO shaft transfers energy by operating in rotational motion. It features dual yokes with female ends and a slip clutch designed to protect the implement gearbox from damage.
The clutch engages when torque exceeds safe levels or if a foreign object causes obstruction, preventing costly repairs to the gear box. Built for reliable agricultural performance, this PTO shaft delivers consistent power transfer in demanding tilling operations.

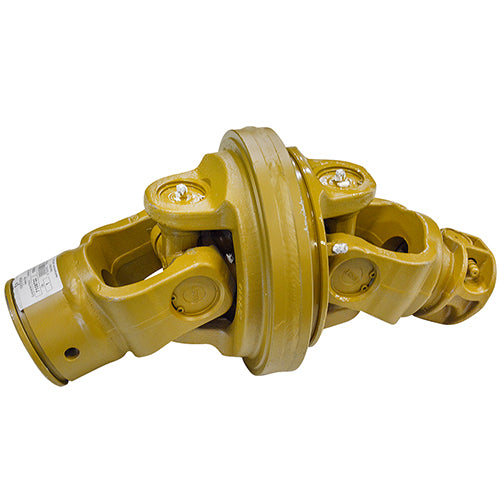

This G08 constant velocity tractor end assembly (Model number: 7108722) is designed for use with series 8 PTO shafts. It features improved universal joints and new style construction for enhanced durability and performance in demanding agricultural applications.
The push-pin yoke design allows for easy attachment without having to push the attaching pin in to latch on the tractor end power take-off. Larger bearing caps and longer-lasting bearings provide extended service life, while the easy removal feature requires just pushing the release pin. The new and improved longer-lasting bearing in the cap ensures reliable performance, and the tri-lobed shafting compatibility fits standard series 8 PTO shaft configurations.
This Series 4 PTO shaft features a tractor end with a splined connection and an implement end with a round bore, making it suitable for various agricultural applications. The shear bolt design provides overload protection to safeguard connected equipment.
Built for reliable performance, this PTO shaft delivers consistent power transfer in demanding farm environments. The round bore implement end with shear bolt hole ensures secure attachment for compatible equipment.
This Series 4 PTO shaft features a tractor end with a quick detach yoke and an implement end with a round bore, making it suitable for various agricultural applications including post hole diggers. The quick detach yoke allows for fast, tool-free connection and disconnection.
Built for reliable performance, this PTO shaft delivers consistent power transfer in demanding farm environments. The round bore implement end with shear bolt hole and set screw ensures secure attachment for compatible equipment.
This Series 4 PTO shaft is built for reliable power transfer in agricultural applications. Featuring 1-3/8 inch 6-spline yokes on both the tractor and implement ends, it provides secure, balanced connections for consistent performance in the field.
Engineered for durability, this shaft handles standard PTO operating speeds with dependable torque delivery. The precision-machined splines ensure a tight fit and reduce vibration during operation.
This Series 4 PTO shaft operates in rotational motion and features a tractor end and implement end, both with female connections for secure power transfer. Safety chains are included which attach to the exterior of the shaft for secure operation.
Built for reliable agricultural performance, this PTO shaft delivers consistent power transfer in demanding farm environments. It is also compatible with the 3-point hay tedder for versatile use across multiple implements.
This Series 8 FD4 slip clutch with yoke provides dependable torque limiting protection for PTO-driven agricultural equipment. The 4-disc friction design allows controlled slippage when overload conditions occur, helping prevent damage to both the implement and tractor driveline components.
Built with a 1-3/4 in. x 20 spline yoke end, this clutch is engineered for secure engagement and consistent performance under demanding field conditions. The FD4 series is widely used across a range of farming applications where overload protection is essential.
Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power while supporting reliable driveline performance.
This PTO assembly features a 1-1/4 in. smooth implement yoke with set screw shaft lock and a 1-3/8 in. x 6-spline tractor yoke for compatible PTO applications. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed for post hole digger and similar PTO-driven equipment requiring reliable power transfer.
Product Detail
Assembly Description
AX45000-0183
Brand
Eurocardan
Description
1-1/4 in. Smooth Yoke with Set Screw Shaft Lock; 3/8 in. Shear Pin
