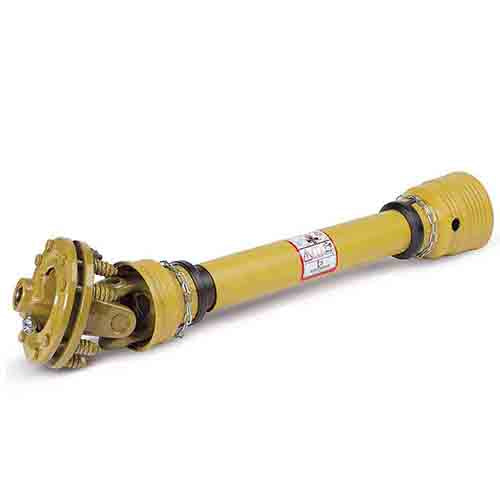

38 in. Series 5 PTO Assembly with FD2 Slip Clutch and 1-3/8 in. 6-Spli

Description

Keep PTO-driven equipment operating efficiently with this Series 5 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features an FD2 slip clutch and 1-3/8 in. 6-spline connections for implement and tractor compatibility. Rated for 47 HP at 540 RPM and 72 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.

Dimension

Extended Length:

51 in.

Length - Overall:

38 in.

Weight:

44 lb

Specification

Assembly Description:

AX51071-16401

Brand:

Eurocardan

Description:

FD2 Slip Clutch - 1-3/8 in. x 6 Spline

Features:

Series 5 PTO assembly with FD2 slip clutch protection
1-3/8 in. x 6-spline driveline connections for compatible PTO equipment
Slip clutch helps protect driveline components from shock loads
Rated for 47 HP at 540 RPM and 72 HP at 1000 RPM
Designed for rotary tillers, lift cutters, and other PTO-driven equipment

HP at 1000 RPM:

72 HP

HP at 540 RPM:

47 HP

Series Size:

Type:

PTO Assembly

Used On:

5 ft HD Lift Cutter, 8 ft Lift Type Main Drive, Medium Duty Tillers

38 in. Series 5 PTO Assembly with FD2 Slip Clutch and 1-3/8 in. 6-Spline Yokes
