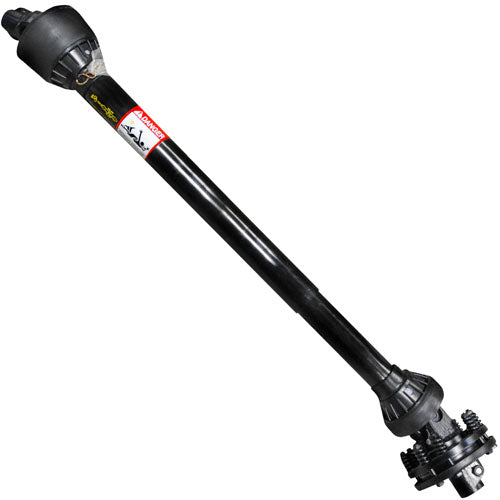

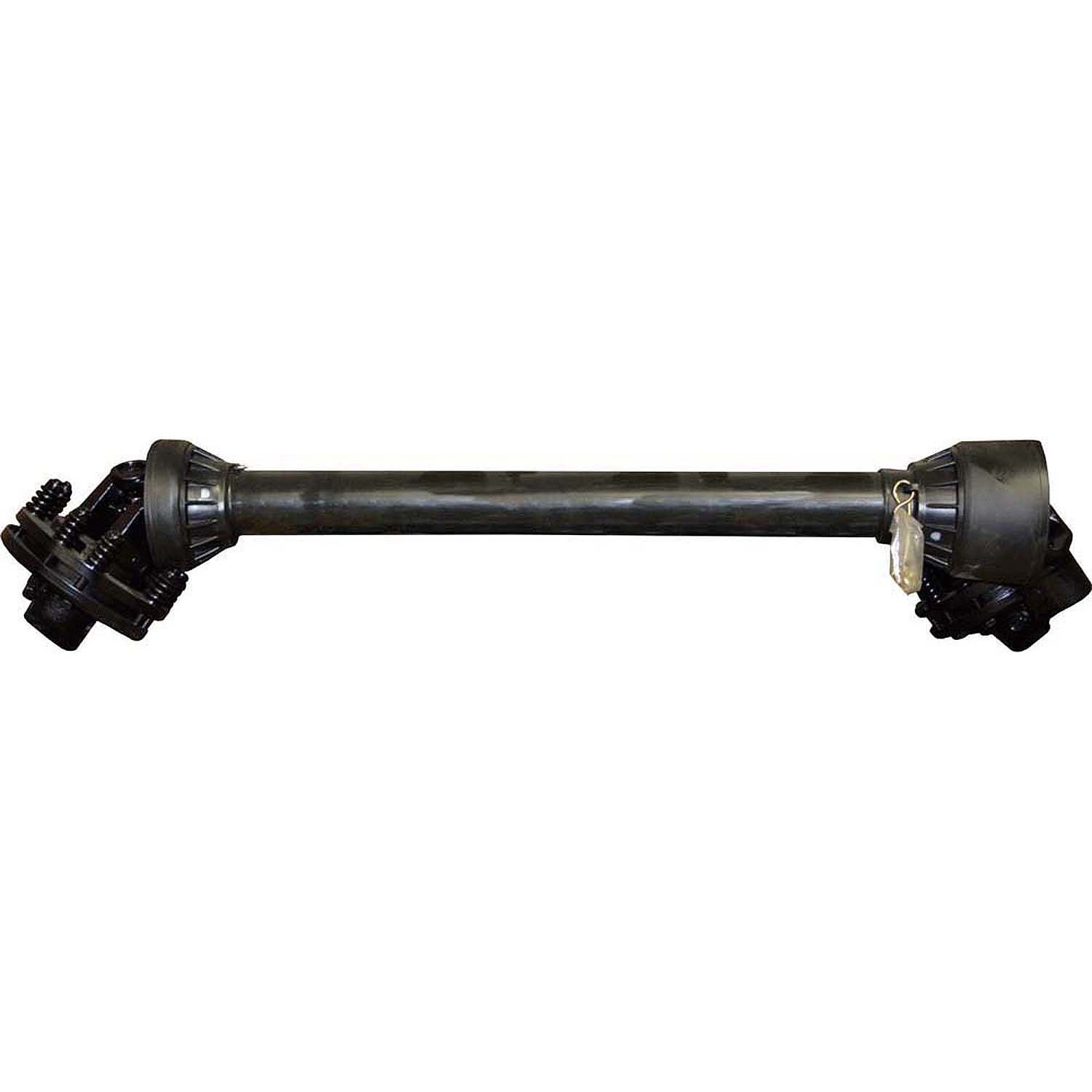

43 in. Series 4 PTO Shaft with Slip Clutch

Product Documents

89797_ins_001.pdf

Description

This Series 4 PTO shaft operates in rotational motion and features a tractor end and implement end, both with female connections for secure power transfer. The slip clutch is designed to engage when torque exceeds safe levels, protecting the implement gearbox from damage.

Built for reliable agricultural performance, this PTO shaft includes safety chains for secure operation. The dual female yoke configuration ensures balanced power transfer from tractor to implement in demanding farm environments.

Dimension

Diameter - Overall:

1-3/8 in.

Extended Length:

58-3/8 in.

Length - Overall:

44.3 in.

Length - Retracted:

43 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

Slip clutch protects implement gearbox by engaging during torque overload
Dual female yoke configuration ensures balanced power transfer from tractor to implement
8 hub bolt clutch assembly provides robust, secure mounting
Safety chains included for secure operation and compliance with safety standards
Series 4 construction engineered for reliable agricultural performance

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Clutch Type:

Slip Clutch

Implement End Component:

Yoke

Implement End Gender:

Female

Implement End Spline Count:

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Gender:

Female

Tractor End Spline Count:

Type:

PTO Shaft
