Cultivator and Chisel Plow Parts

Product	Dimension	Specification
1-1/4 in. Ribbed Cultivator Shank with Bracket and Bolts SKU: #83749 Ribbed cultivator shank with bracket and bolts for rolling cultivator assemblies, uses wedge clamp for secure attachment.	Dimensions Diameter - Shank 1-1/4 in. Weight 17 lb	Specifications Style Ribbed with Bracket Type Field Cultivator Point
20 in. Trip Cultivator Shank for IH Models SKU: #38854A Trip cultivator shank with adjustable spring tension, designed for IH models, supports sweep attachments for versatile tillage.	Dimensions Diameter - Rod 1-3/16 in. Height 20 in. Hole Size 1-1/16 in.	Specifications Material Steel Style Trip Shank Type Cultivator Shank

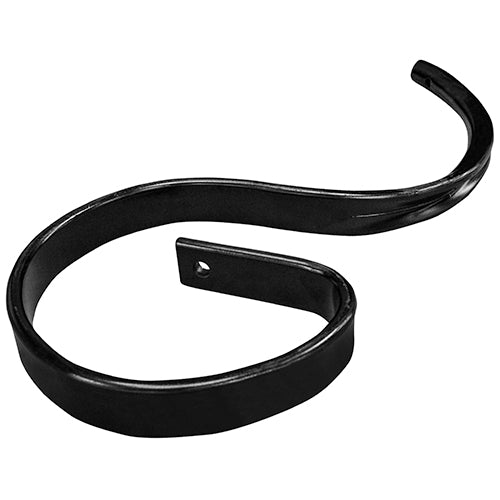

1-3/4 in. x 1/2 in. x 26 in. High Clearance Danish S-Tine Shank SKU: #101602 High clearance Danish S-tine shank, heat treated steel construction, designed for use with danish style cultivators and sweep attachments.	Dimensions Height 26 in. Thickness 1/2 in. Weight 11 lb	Specifications Material Heat Treated Steel Style Danish, High Clearance Type S-Tine
1-1/4 in. x 1/2 in. x 26 in. High Clearance S-Tine Shank SKU: #101601 High clearance S-tine shank without point, heat treated steel construction, designed for soil preparation and field leveling.	Dimensions Ground Clearance 15-3/8 in. Height 26 in. Thickness 1/2 in.	Specifications Material Heat Treated Steel Style High Clearance, Without Point Type S-Tine
1-1/4 in. x 1/2 in. x 22 in. Heavy Duty Danish S-Tine Shank SKU: #101600 Heavy duty Danish S-tine shank without point, heat treated steel construction, designed for danish style cultivators and sweep attachments.	Dimensions Ground Clearance 14-1/2 in. Height 22 in. Thickness 1/2 in.	Specifications Material Heat Treated Steel Style Danish, Heavy Duty, Without Point Type S-Tine
26 in. x 1-1/4 in. x 1/2 in. High Clearance S-Tine SKU: #102235 High clearance S-tine designed to fit John Deere 940-960 cultivators for tillage and cultivation applications.	Dimensions Height 26 in. Length - Overall 18-1/2 in. Thickness 1/2 in.	Specifications Style High Clearance Type S-Tine
1-1/4 in. x 3/8 in. x 21-1/4 in. Standard Duty Danish S-Tine Shank SKU: #101599 Standard duty Danish S-tine shank without point, heat treated steel construction, designed for danish style cultivators and sweep attachments.	Dimensions Ground Clearance 14-1/2 in. Height 21-1/4 in. Thickness 3/8 in.	Specifications Material Heat Treated Steel Style Danish, Standard Duty, Without Point Type S-Tine
16-7/8 in. Heat Treated Cultivator C-Shank SKU: #10406 Heat treated cultivator C-shank with reversible bolt holes, designed for flexible mounting and reliable tillage performance.	Dimensions Height 16 in. Length - Overall 16-7/8 in. Thickness 3/8 in.	Specifications Brand Agmate Hole Count 3 Material Heat Treated 5160 Steel (RC 38-42)
Wedge Clamp for IH Cultivator SKU: #109931 Steel wedge clamp for IH cultivators, raw steel finish, secures shank to tool bar with wedge bolt.	Dimensions Length - Overall 5 in. Weight 3.5 lb Width - Overall 3 in.	Specifications Finish Raw Steel Fits Bar Size 1-3/8 in. Material Steel

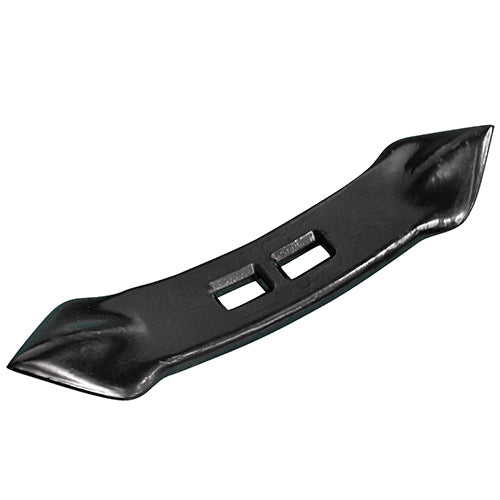

11-1/2 in. x 2 in. x 3/8 in. Field Cultivator Point SKU: #108014 Field cultivator point with slotted hole pattern, designed for efficient soil penetration and reliable tillage performance.	Dimensions Bolt Size 7/16 in. Hole Spacing 1-3/4 in. to 2 in. Length - Overall 11-1/2 in.	Specifications Style ST-20 Type Field Cultivator Point
11 in. x 2 in. x 5/16 in. Reversible Chisel Plow Point SKU: #87349 Reversible chisel plow point with dual mounting holes, designed for efficient soil penetration and extended service life.	Dimensions Bolt Size 7/16 in. Hole Spacing 2 in. Length - Overall 11 in.	Specifications Brand Agmate Hole Count 2 Style Reversible
11 in. x 2 in. x 3/8 in. Reversible Field Cultivator Point SKU: #87350 Reversible field cultivator point with slotted mounting hole, designed for efficient soil preparation and extended service life.	Dimensions Bolt Size 7/16 in. Hole Spacing 2 in. Length - Overall 11 in.	Specifications Brand Agmate Hole Count 2 Style Reversible
2-3/4 in. x 5/16 in. S-Tine Clamp for 2-1/2 in. Tool Bar SKU: #102236 Heat treated steel S-tine clamp for tool bars, designed to securely hold S-tine shanks during cultivator operations.	Dimensions Fits Shank Thickness 1/2 in. Fits Shank Width 1-3/4 in. Thickness 5/16 in.	Specifications Fits Bar Size 2-1/2 in. x 2-1/2 in. Material Heat Treated Steel Type S-Tine Clamp
1-3/4 in. x 1/2 in. S-Tine Clamp for 3 in. x 3 in. Tool Bar SKU: #103026 S-tine clamp for tool bars, steel construction, designed to securely mount S-tine shanks for cultivator applications.	Dimensions Fits Shank Thickness 1/2 in. Fits Shank Width 1-3/4 in. Weight 2 lb	Specifications Fits Bar Size 3 in. x 3 in. Material Steel Type S-Tine Clamp
11 in. x 2-1/2 in. x 5/16 in. Reversible Field Cultivator Point SKU: #108019 Reversible field cultivator point with slotted bolt pattern, designed for weed removal, residue cleanup, and level seedbed preparation.	Dimensions Bolt Size 7/16 in. Hole Spacing 1-1/2 in. Length - Overall 11 in.	Specifications Style Reversible Type Field Cultivator Point
12 mm x 45 mm Cultivator Clamp for 3 in. x 3 in. Square Bar SKU: #83453 12 mm x 45 mm clamp designed to fit 3 in. x 3 in. square bar cultivator and chisel plow applications.	Dimensions Thickness 15/32 in. Weight 1.74 lb Width - Overall 1-3/4 in	Specifications Fits Bar Size 3 in. x 3 in. Type Clamp
1-3/4 in. S-Tine Clamp for 2-1/2 in. Tool Bar SKU: #38132 S-tine clamp for tool bars, designed to securely mount S-tine shanks for cultivator applications.	Dimensions Fits Shank Width 1-3/4 in. Weight 1.5 lb	Specifications Fits Bar Size 2-1/2 in. x 2-1/2 in. Type S-Tine Clamp
10-1/2 in. x 1-3/4 in. x 5/16 in. Reversible Field Cultivator Point SKU: #108013 Reversible field cultivator point with slotted bolt pattern, designed for weed removal, residue cleanup, and level seedbed preparation.	Dimensions Hole Spacing 1-3/4 in. Length - Overall 10-1/2 in. Thickness 5/16 in.	Specifications Style Reversible Type Field Cultivator Point
11 in. x 2 in. x 1/4 in. Reversible C-Shank Field Cultivator Point SKU: #15511 Reversible field cultivator point for C-shank cultivators, slotted bolt pattern for versatile mounting, durable steel construction.	Dimensions Bolt Size 7/16 in. Length - Overall 11 in. Thickness 1/4 in.	Specifications Brand Agmate Material Steel Style Reversible, C-Shank
1/2 in. x 1-3/4 in. S-Tine Clamp for 2 in. Tool Bar SKU: #83745 S-tine clamp for tool bars, fits S-tine shanks and uses carriage bolt for secure mounting.	Dimensions Thickness 15/32 in. Weight 1.25 lb Width - Overall 1-3/4 in	Specifications Fits Bar Size 2 in. x 2 in. Type Clamp
Wedge Bolt with Nut for IH Cultivators SKU: #85136 Wedge bolt with nut for IH cultivators and tractors, tapered design for secure shank holding, nut included.	Dimensions Weight 1 lb	Specifications Type Wedge Bolt
2 in. x 5/16 in. S-Tine Clamp for 2 in. Tool Bar SKU: #102237 Heat treated steel S-tine clamp for tool bars, bolt and nut not included, designed for secure S-tine shank mounting.	Dimensions Fits Shank Thickness 3/8 in. Fits Shank Width 1-1/4 in. Hole Size 1/2 in.	Specifications Fits Bar Size 2 in. x 2 in. Material Heat Treated Steel Type S-Tine Clamp
12-1/2 in. x 1-1/4 in. x 3/8 in. Standard Duty S-Tine SKU: #104001 Standard duty S-tine designed for cultivator and tillage equipment applications.	Dimensions Height 12-1/2 in. Length - Overall 8-13/16 in. Thickness 3/8 in.	Specifications Style Standard Duty Type S-Tine
Wedge Bolt with 5/8 in. Nut for IH Cultivators SKU: #107357 Wedge bolt with 5/8 in. coarse nut for IH cultivators, secures wedge clamp to tool bar for reliable shank mounting.	Dimensions Weight 0.6 lb	Specifications Color Black Thread 5/8 in. Thread Type Coarse
Wedge and Clamp Assembly for IH Cultivators and Planters SKU: #82406 Wedge and clamp assembly for IH cultivators, planters, and fertilizer units, steel construction, includes bolts and nuts.	Dimensions No dimensions available	Specifications Fits Bar Size 1-3/8 in. Material Steel Type Clamp

Diameter - Rod	1-3/16 in.
Height	20 in.
Hole Size	1-1/16 in.
Hole Spacing	1-3/4 in.
Weight	12 lb

Material	Heat Treated Steel
Style	Danish, High Clearance
Type	S-Tine

Height	26 in.
Thickness	1/2 in.
Weight	11 lb
Width - Overall	1-3/4 in.

Ground Clearance	15-3/8 in.
Height	26 in.
Thickness	1/2 in.
Weight	7.5 lb
Width - Overall	1-1/4 in.

Ground Clearance	14-1/2 in.
Height	22 in.
Thickness	1/2 in.
Weight	7 lb
Width - Overall	1-1/4 in.

Height	26 in.
Length - Overall	18-1/2 in.
Thickness	1/2 in.
Weight	7 lb
Width - Overall	1-1/4 in.

Brand	Agmate
Hole Count	3
Material	Heat Treated 5160 Steel (RC 38-42)
Style	C-Shank (Curved, 117°)
Type	Cultivator Shank

Height	16 in.
Length - Overall	16-7/8 in.
Thickness	3/8 in.
Width - Overall	1-3/4 in.

Finish	Raw Steel
Fits Bar Size	1-3/8 in.
Material	Steel
Type	Wedge Clamp

Bolt Size	7/16 in.
Hole Spacing	1-3/4 in. to 2 in.
Length - Overall	11-1/2 in.
Thickness	3/8 in.
Weight	2.5 lb
Width - Overall	2 in.

Fits Bar Size	2-1/2 in. x 2-1/2 in.
Material	Heat Treated Steel
Type	S-Tine Clamp

Fits Shank Thickness	1/2 in.
Fits Shank Width	1-3/4 in.
Thickness	5/16 in.
Weight	2 lb
Width - Overall	2-3/4 in.

Fits Bar Size	2 in. x 2 in.
Material	Heat Treated Steel
Type	S-Tine Clamp

Height	12-1/2 in.
Length - Overall	8-13/16 in.
Thickness	3/8 in.
Weight	1 lb
Width - Overall	1-1/4 in.
