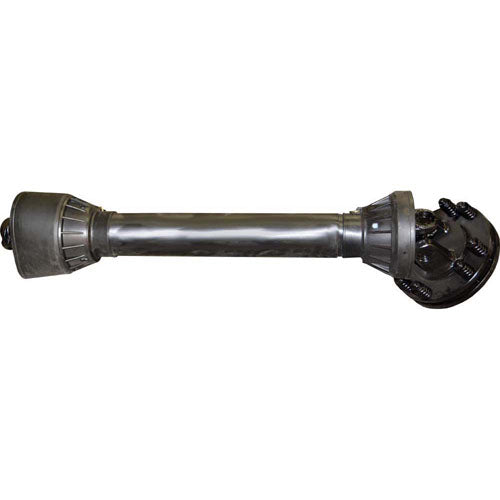

37-5/16 in. Series 5 PTO Shaft with Slip Clutch

Product Documents

89807_ins_001.pdf

Description

This Series 5 PTO shaft connects to the transmission of agricultural machines and operates in rotational motion. It features a tractor end and an implement end, both with female connections for secure power transfer in demanding farm applications.

The slip clutch is designed to engage when torque exceeds safe levels, protecting the implement gearbox from damage. Built for reliable performance, this assembly delivers consistent power transfer in heavy-duty agricultural operations.

Dimension

Diameter - Overall:

1-3/8 in.

Extended Length:

46-5/8 in.

Length - Retracted:

37-5/16 in.

Spline Count:

Weight:

46.28 lb

Specification

Brand:

Grizzly

Features:

Slip clutch protects implement gearbox by engaging during torque overload
Dual female yoke configuration ensures balanced power transfer from tractor to implement
8 hub bolt clutch assembly provides robust, secure mounting
Series 5 construction engineered for reliable agricultural performance
Shielded operation recommended for safety around rotating components

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Clutch Type:

Slip Clutch

Implement End Component:

Yoke

Implement End Gender:

Female

Implement End Spline Count:

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Gender:

Female

Tractor End Spline Count:

Type:

PTO Shaft
