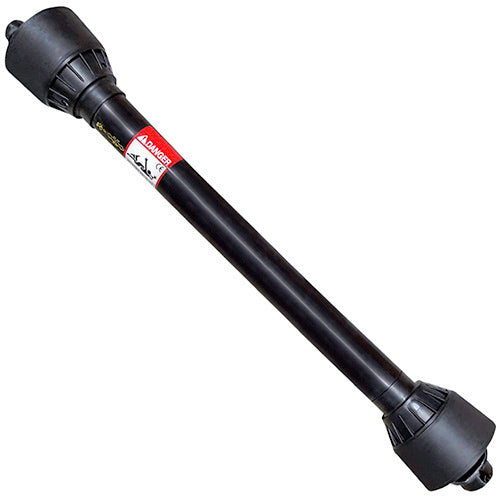

48-11/16 in. Series 6 PTO Shaft with Quick Detach Yoke

Product Documents

102267_ins_001.pdf

Description

This Series 6 PTO shaft features a tractor end with a quick detach yoke and an implement end with a smooth bore, making it suitable for various agricultural applications. The quick detach yoke allows for fast, tool-free connection and disconnection.

Built for heavy-duty performance, this PTO shaft delivers reliable power transfer in demanding farm environments. The smooth bore implement end with keyway and set screw ensures secure attachment for compatible equipment.

Dimension

Extended Length:

63-5/8 in.

Implement End Bore Size:

1-1/2 in.

Implement End Keyway Width:

3/8 in.

Implement End Set Screw:

3/8 in.

Length - Retracted:

48-11/16 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

Quick detach yoke enables fast, tool-free connection on tractor end
Smooth bore implement end with keyway and set screw for secure equipment attachment
Series 6 construction engineered for reliable power transfer in demanding farm operations
Dual end configuration compatible with various agricultural implements
Rated for both standard and high-speed PTO speeds

Implement End Bore Type:

Smooth Bore

Series:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Connection Style:

Quick Detach

Tractor End Spline Count:

Type:

PTO Shaft
