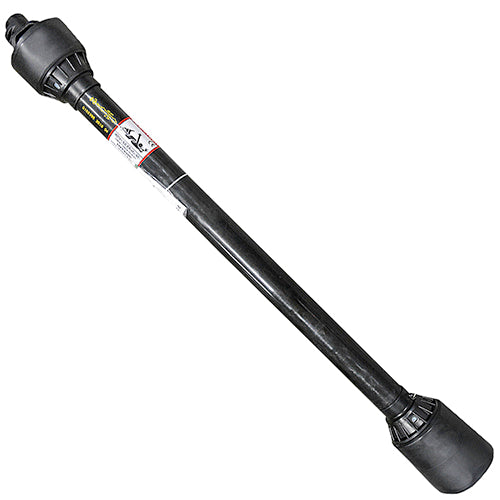

51-5/8 in. Series 4 PTO Shaft with Quick Detach Yoke

Product Documents

102266_ins_001.pdf

Description

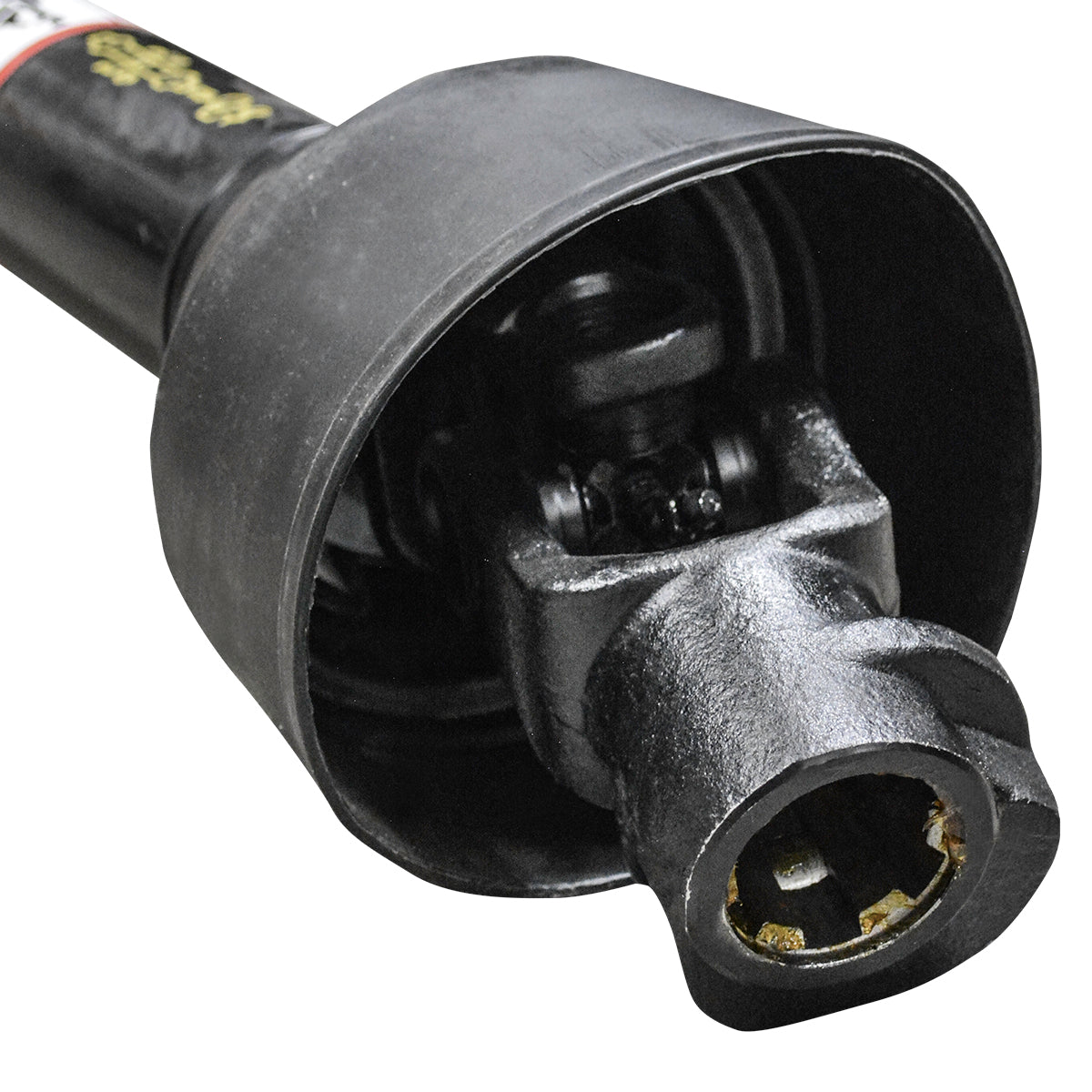

This Series 4 PTO shaft features a tractor end with a quick detach yoke and an implement end with a round bore, making it suitable for various agricultural applications including post hole diggers. The quick detach yoke allows for fast, tool-free connection and disconnection.

Built for reliable performance, this PTO shaft delivers consistent power transfer in demanding farm environments. The round bore implement end with shear bolt hole and set screw ensures secure attachment for compatible equipment.

Dimension

Diameter - Overall:

1-3/8 in.

Extended Length:

69 in.

Implement End Bore Size:

1-1/4 in.

Implement End Hole Size:

3/8 in.

Implement End Set Screw:

1/4 in.

Length - Retracted:

51-5/8 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

Quick detach yoke enables fast, tool-free connection on tractor end
Round bore implement end with shear bolt hole and set screw for secure equipment attachment
Standard bell shielding on both ends for operator safety
Series 4 construction engineered for reliable agricultural performance
Commonly used with post hole diggers for versatile farm applications

HP at 1000 RPM:

HP at 540 RPM:

Implement End Bore Type:

Round Bore

Implement End Hole Type:

Shear Bolt Hole

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Connection Style:

Quick Detach

Tractor End Spline Count:

Type:

PTO Shaft

Used On:

Post hole diggers
