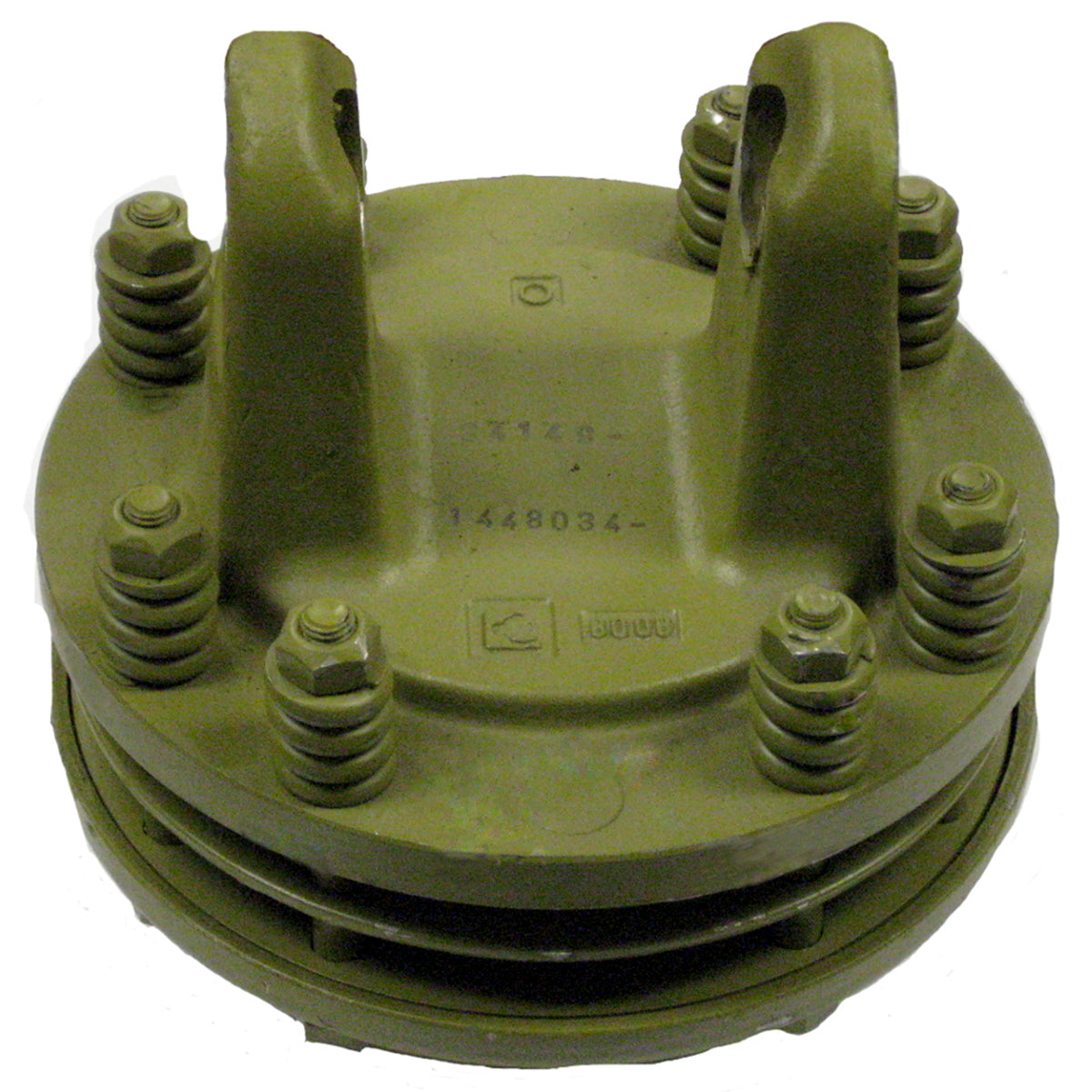

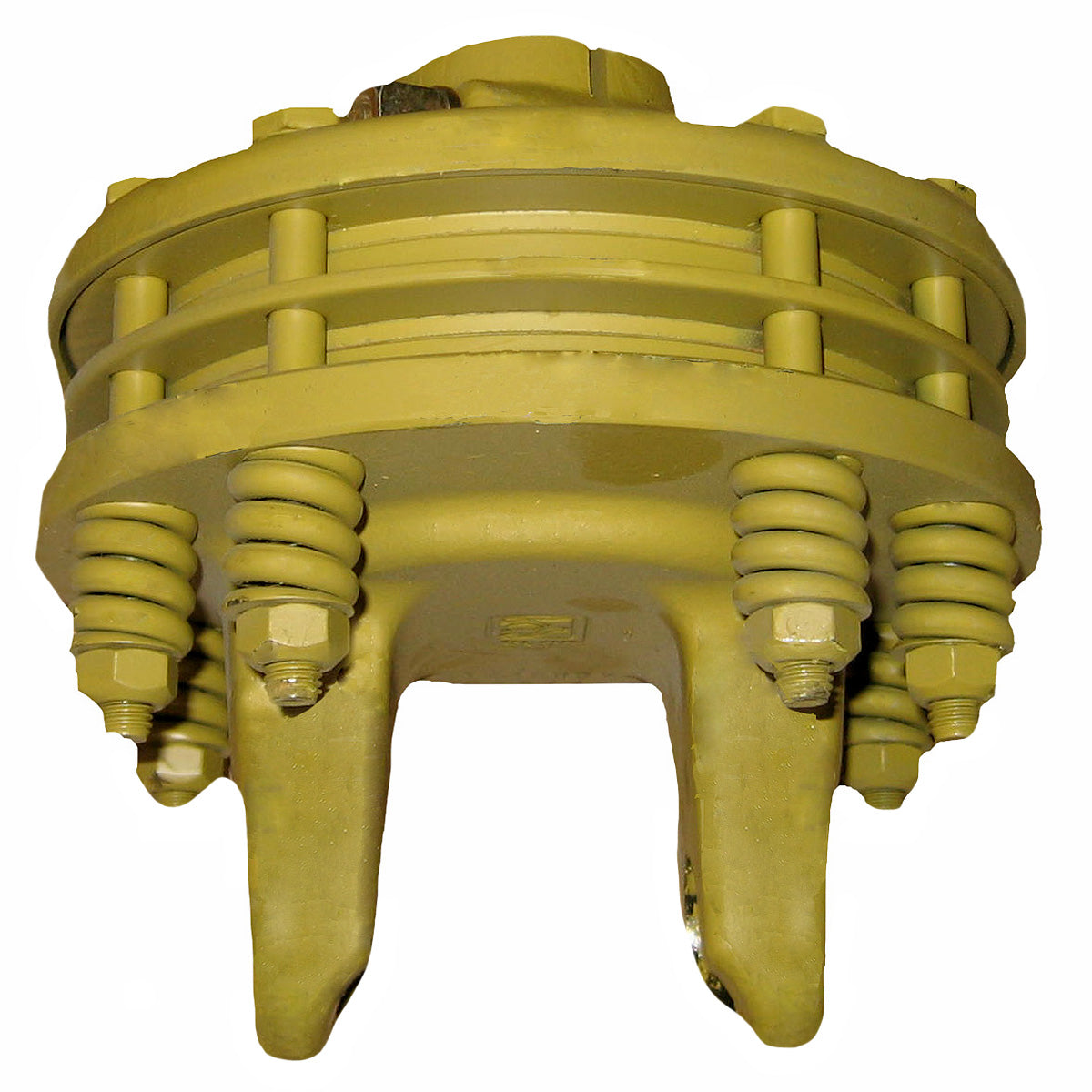

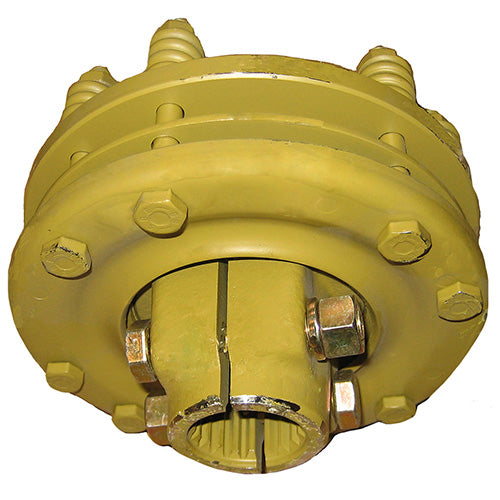

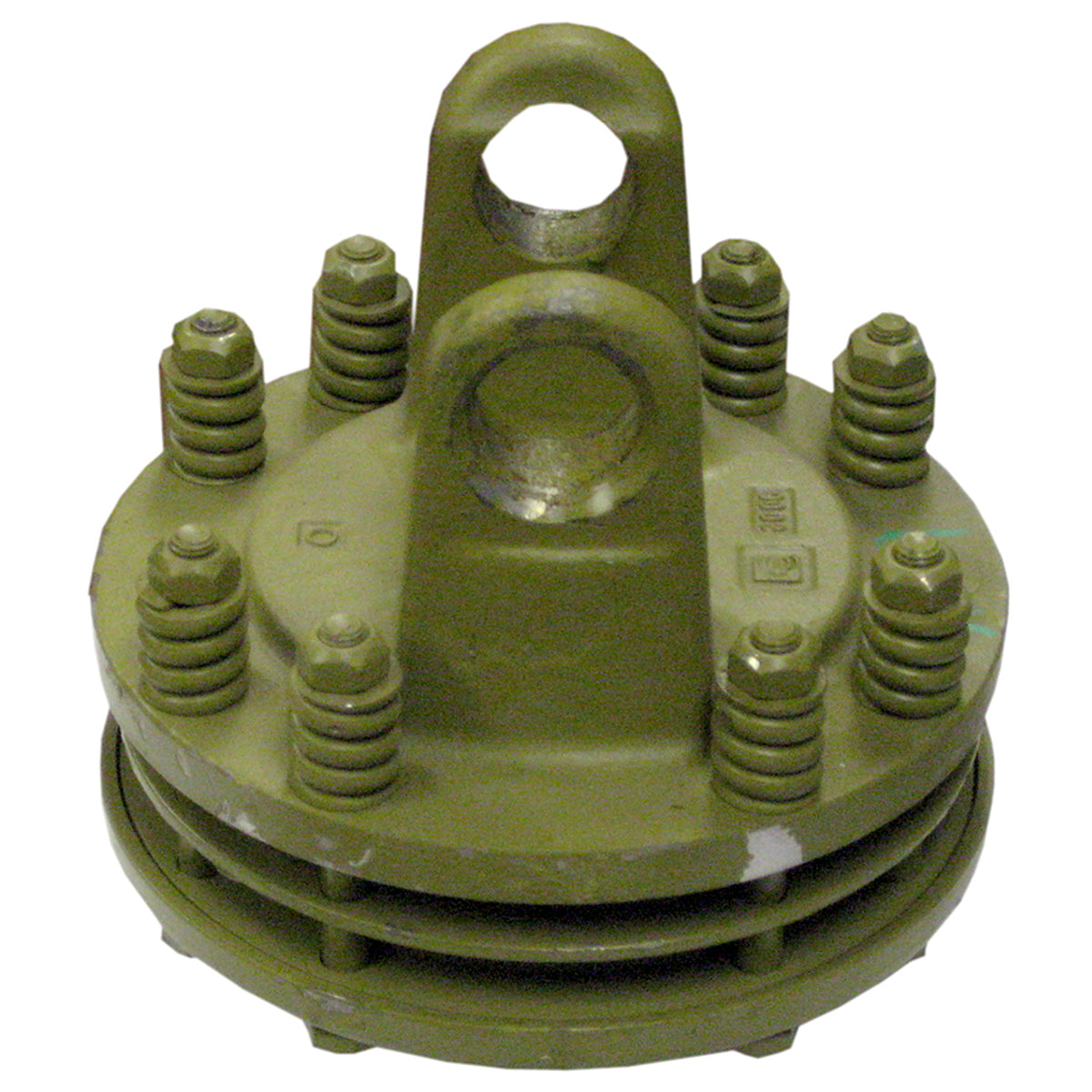

1-3/4 in. x 20 Spline Series 8 FD4 Slip Clutch with Yoke

Product Documents

34149_brk_001.pdf

34149_brk_002.pdf

34149_brk_003.pdf

34149_cat_002.pdf

Description

This Series 8 FD4 slip clutch with yoke provides dependable torque limiting protection for PTO-driven agricultural equipment. The 4-disc friction design allows controlled slippage when overload conditions occur, helping prevent damage to both the implement and tractor driveline components.

Built with a 1-3/4 in. x 20 spline yoke end, this clutch is engineered for secure engagement and consistent performance under demanding field conditions. The FD4 series is widely used across a range of farming applications where overload protection is essential.

Dimension

Cross Height:

4-3/16 in.

Cross Kit Diameter:

1-3/8 in.

Shaft Size:

1-3/4 in.

Spline Count:

Weight:

30 lb

Specification

Brand:

Eurocardan

Cross Kit Use:

32194

Disc Count:

Eurocardan Part #:

1448034

Features:

4-disc friction design provides smooth, controlled torque limiting to protect driveline components from overload damage
1-3/4 in. x 20 spline yoke end ensures a precise, secure fit with compatible PTO shafts for reliable power transfer
Series 8 rated construction built to handle the demands of medium-duty agricultural implements and equipment
Replaceable friction disc allows for easy maintenance and extended service life without full clutch replacement
Standard cross kit compatibility simplifies repairs and reduces downtime in the field

Number of Pieces:

Series:

Series Size:

Type:
