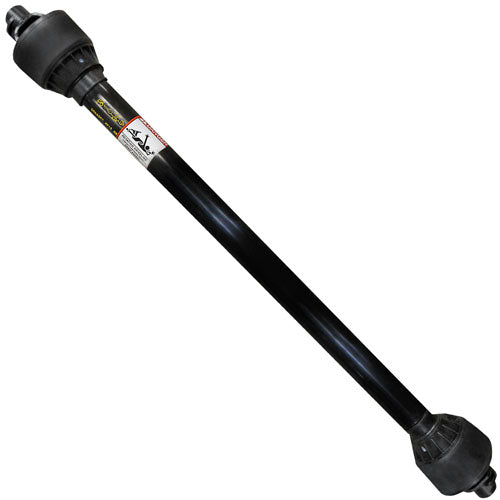

53 in. Series 4 PTO Shaft with Safety Chains
SKU: #89799
Description
This Series 4 PTO shaft operates in rotational motion and features a tractor end and implement end, both with female connections for secure power transfer. Safety chains are included which attach to the exterior of the shaft for secure operation.
Built for reliable agricultural performance, this PTO shaft delivers consistent power transfer in demanding farm environments. It is also compatible with the 3-point hay tedder for versatile use across multiple implements.
Dimension
Cross Kit Diameter:
27 mm
Cross Kit Width:
74.6 mm
Extended Length:
70-13/16 in.
Length - Retracted:
53 in.
Spline Count:
6
Specification
Brand:
Grizzly
Features:
- Safety chains included for secure operation and compliance with safety standards
- Dual female yoke configuration ensures balanced power transfer from tractor to implement
- Compatible with 3-point hay tedder for versatile agricultural use
- Series 4 cross kit compatibility allows easy maintenance and part replacement
- Rated for both standard and high-speed PTO speeds
HP at 1000 RPM:
54
HP at 540 RPM:
35
Implement End:
1-3/8 in.
Implement End Component:
Yoke
Implement End Gender:
Female
Implement End Spline Count:
6
Series:
4
Series Size:
4
Tractor End:
1-3/8 in.
Tractor End Component:
Yoke
Tractor End Gender:
Female
Tractor End Spline Count:
6
Type:
PTO Shaft
Used On:
3-point hay tedder
53 in. Series 4 PTO Shaft with Safety Chains
