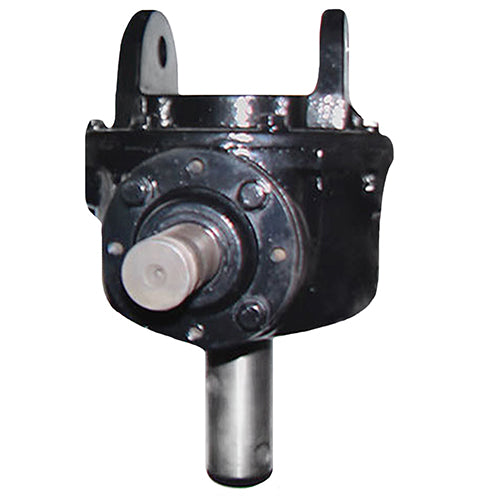

1-1/4 in. Smooth Input Shaft 2.92:1 Ratio Auger Gearbox

Description

Restore reliable power transfer to your post hole digger with this durable auger gearbox. Built with a ductile iron housing for long lasting strength and dependable field performance.

Features a 1-1/4 in. smooth input shaft and a 2 in. smooth output shaft for standard fitment. Includes a bevel gear system with a 2.92:1 gear ratio for efficient torque conversion. Compatible with 30-45 HP for standard post hole digging applications. Uses 90 weight gear oil for lubrication. Manufacturer Part Number: RW-260.

Installation & Oil Fill Tip:

To properly fill with oil, remove the 1/4 in. plug at the rear of the gearbox and pour 90 weight gear oil through the top plug until it starts running out of the 1/4 in. plug. Replace and tighten the plug snugly.

Dimension

Dimensions:

Bolt Pattern
Inside Mounting Ears: 4-5/16 in.
Outside Mounting Ears: 5-1/2 in.

Input Shaft Length:

2-1/8 in.

Output Shaft Length:

4-1/4 in.

Top Pin:

7/8 in.

Specification

Bevel:

Yes

Brand:

Grizzly

Eurocardan Part #:

RW-260

Features:

Ductile iron housing for superior strength and long lasting durability
1-1/4 in. smooth input shaft for standard PTO fitment
2 in. smooth output shaft for reliable auger power transfer
2.92:1 gear ratio with bevel gear design for efficient torque conversion
30-45 HP compatibility for standard post hole digging applications

Input:

1-1/4 in.

Input Type:

Smooth

Material:

Ductile Iron (Housing)

Output:

2 in.

Output Type:

Smooth

Ratio:

2.92:1

Type:

Auger Gearbox
