Tractor Linkage Bushings

ProductDimension Specification

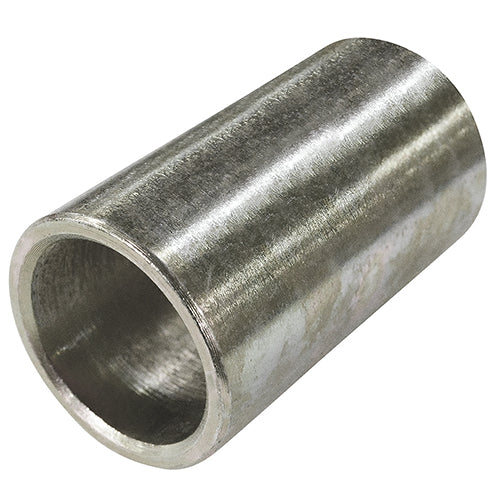

LAB 2-3-2 1/2" BUSHING LIFT ARM
Lift Arm Bushing

SKU: #105573

Replacement lift arm bushing designed for Category 2 lift arm pin applications.
Dimensions
Diameter - Inner
1-1/8 in.
Diameter - Outer
1-7/16 in.
Diameter - Pin
15/32 in.
Specifications
Material
C1018/1020 Carbon Steel
Type
Lift Arm Bushing

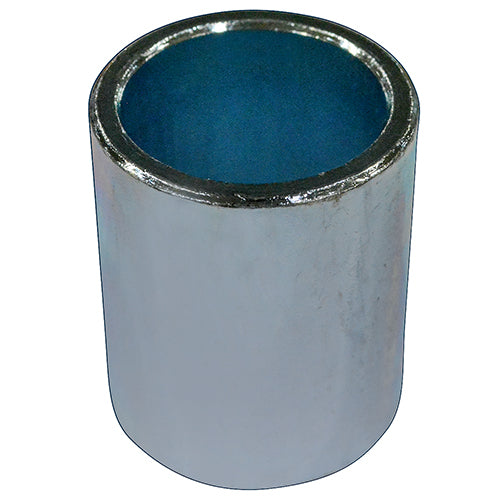

CONVERSION BUSHING FOR LIFT ARM
1-7/16 in. x 1-3/4 in. CAT 2 to CAT 3 Trivalent Zinc Conversion Bushing

SKU: #106066

1-7/16 in. x 1-3/4 in. lift arm conversion bushing. Converts CAT 2 to CAT 3 in minutes. Mild steel with trivalent zinc plated finish.
Dimensions
Diameter - Inner
1-1/8 in.
Diameter - Outer
1-7/16 in.
Length - Overall
1-3/4 in.
Specifications
Class
CAT 2 to CAT 3
Finish
Trivalent Zinc
Material
Mild Steel
TOP LINK CONVERSION BUSHING
1-1/4 in. OD x 1 in. ID x 1-7/8 in. CAT 2 to CAT 3 Trivalent Zinc Top Link Conversion Bushing

SKU: #106065

1-1/4 in. OD x 1 in. ID x 1-7/8 in. top link conversion bushing. Converts CAT 2 top link pin to CAT 3 implement. Mild steel with trivalent zinc finish.
Dimensions
Diameter - Inner
1 in.
Diameter - Outer
1-1/4 in.
Length - Overall
1-7/8 in.
Specifications
Class
CAT 2 to CAT 3
Finish
Trivalent Zinc
Material
Mild Steel

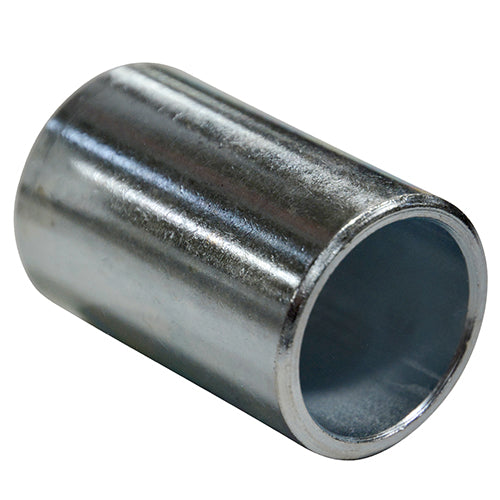

TOP LINK RDCR BUSHING
1 in. OD x 3/4 in. ID x 1-5/8 in. CAT 1 to CAT 2 Trivalent Chromate Top Link Reducer Bushing

SKU: #106609

Category 1 to Category 2 top link reducer bushing with a trivalent chromate finish for tractor linkage applications.
Dimensions
Diameter - Inner
3/4 in.
Diameter - Outer
1 in.
Length - Overall
1-5/8 in.
Specifications
Class
CAT 1 to CAT 2
Type
Top Link Reducer Bushing

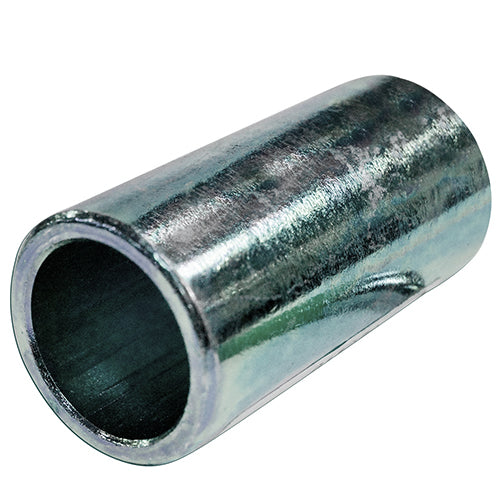

CONVERSION BUSHING TOP LINK CAT
1 in. OD x 3/4 in. ID x 2 in. CAT 1 to CAT 2 Trivalent Zinc Top Link Conversion Bushing

SKU: #106101

1 in. OD x 3/4 in. ID x 2 in. top link conversion bushing. Converts CAT 1 top link pin to CAT 2 implement. Mild steel with trivalent zinc finish.
Dimensions
Diameter - Inner
3/4 in.
Diameter - Outer
1 in.
Length - Overall
2 in.
Specifications
Finish
Trivalent Zinc
Material
Mild Steel
Style
Top Link Adapter
CAT 0-1 LIFT ARM RDCR
Category 0 to Category 1 Lift Arm Reducer Bushing

SKU: #106610

Lift arm reducer bushing designed to convert Category 0 lift arm connections to Category 1 applications.
Dimensions
Diameter - Inner
5/8 in.
Diameter - Outer
7/8 in.
Length - Overall
1-3/8 in.
Specifications
Finish
Trivalent White
Type
Lift Arm Reducer Bushing

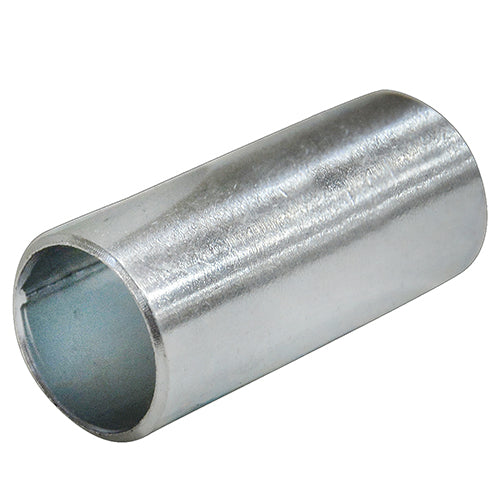

TOP LINK RDCR BUSHING CAT 0-1
3/4 in. OD x 5/8 in. ID x 1-3/8 in. CAT 0 to CAT 1 Trivalent Zinc Top Link Reducer Bushing

SKU: #108288

3/4 in. OD x 5/8 in. ID x 1-3/8 in. top link reducer bushing. Converts CAT 0 top link pin to CAT 1 implement. Ideal for sub-compact tractors.
Dimensions
Diameter - Inner
5/8 in.
Diameter - Outer
3/4 in.
Length - Overall
1-3/8 in.
Specifications
Class
CAT 0 to CAT 1
Color
White (Trivalent Zinc)
Finish
Trivalent Zinc

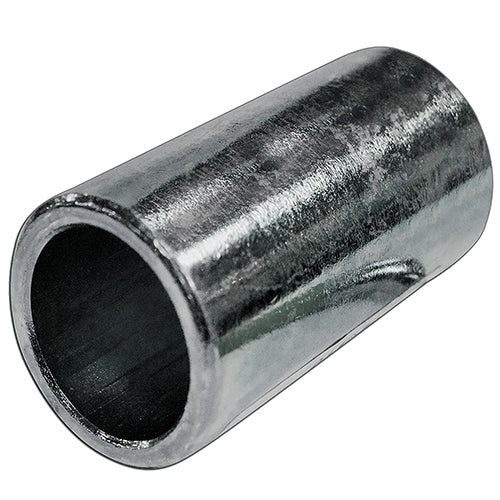

LIFT ARM BUSHING CAT 1 TO CAT 2
Category 1 to Category 2 Lift Arm Bushing

SKU: #106048

Conversion lift arm bushing designed to adapt Category 1 lift arms for use with Category 2 equipment.
Dimensions
Diameter - Inner
7/8 in.
Diameter - Outer
1-1/8 in.
Length - Overall
1-3/4 in.
Specifications
Finish
Trivalent White Zinc
Material
Mild Steel
Type
Lift Arm Bushing

Showing 8/8
