Hydraulic Cylinder Repair Parts

Product	Dimension	Specification
4 in. Hydraulic Cylinder Base Clevis SKU: #102132A 4 in. hydraulic cylinder base clevis with 1 in. pin hole.	Dimensions Pin Hole Size 1 in.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 4 in.

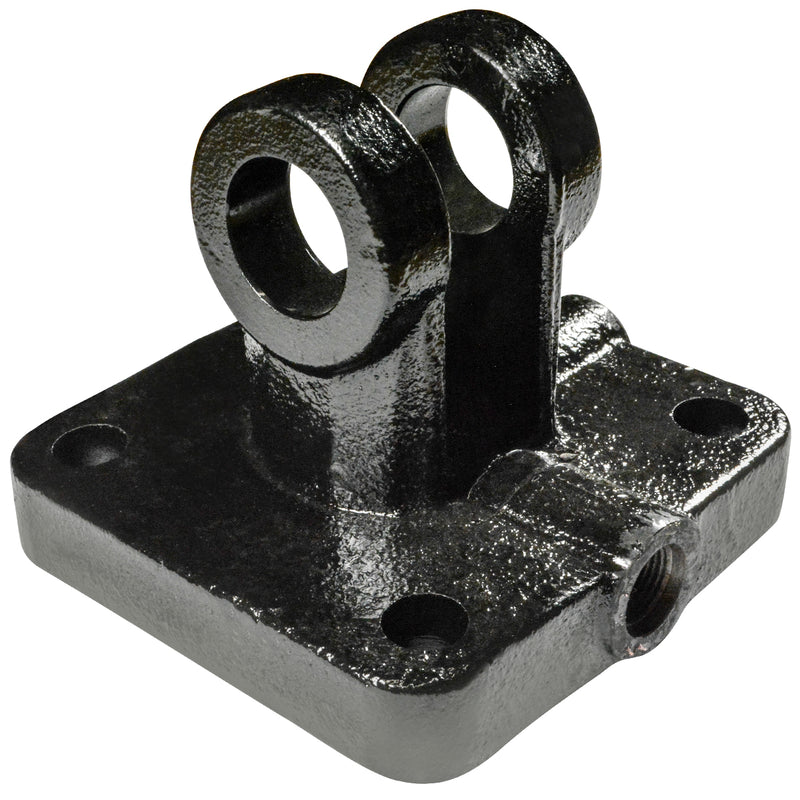

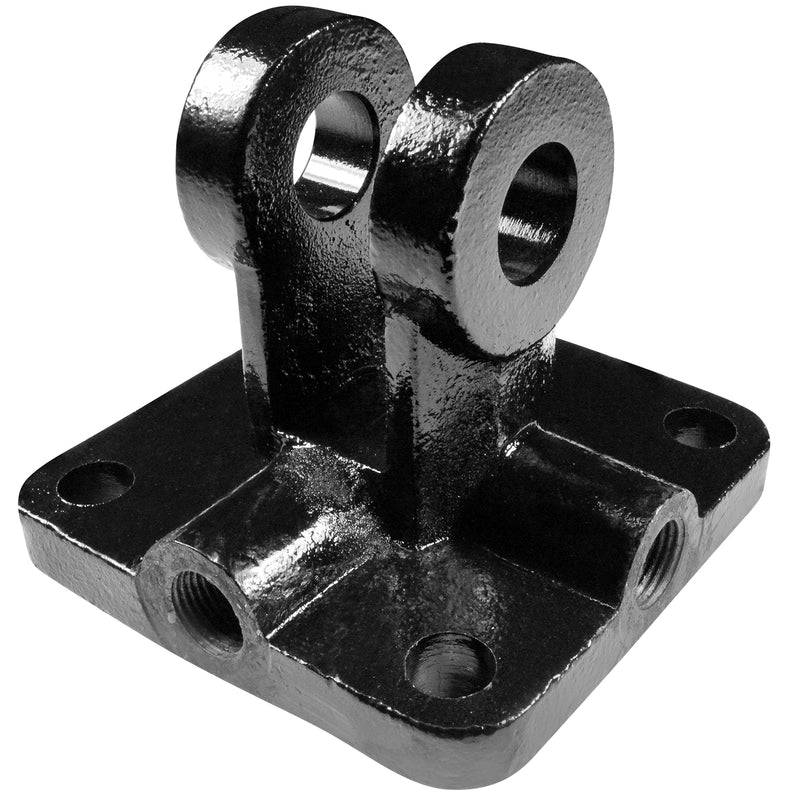

BASE CLEVIS 4" ROD 2500PSI BLACK SKU: #107933 4 in. rod 2,500 PSI black hydraulic cylinder base clevis for secure cylinder mounting.	Dimensions Weight 7.2 lb	Specifications Brand Grizzly Color Black Fits Bore Size 4 in.

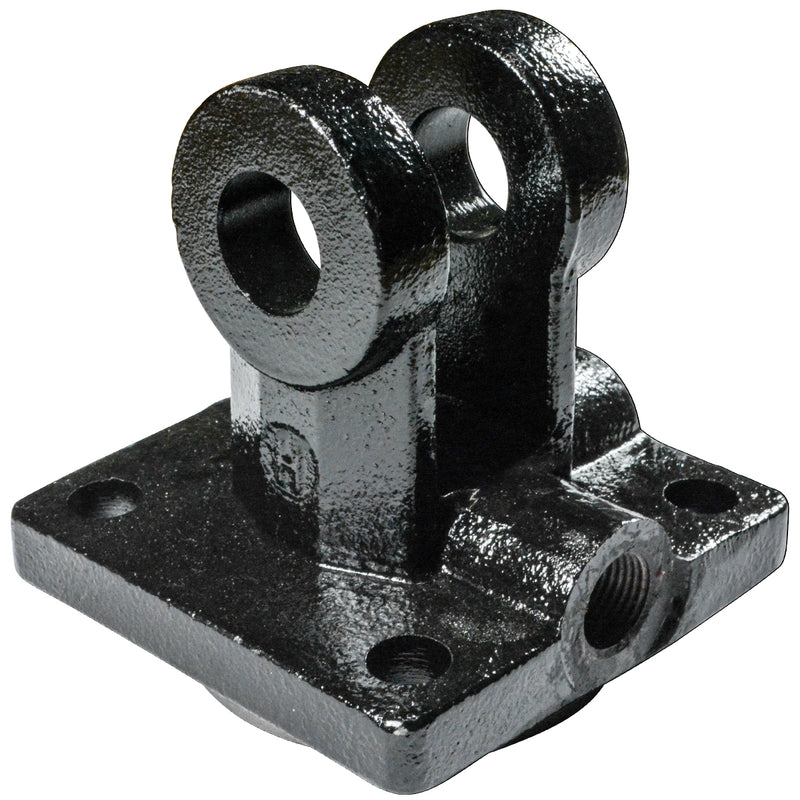

3-1-2-in-hydraulic-cylinder-base-clevis SKU: #102131A 3-1/2 in. hydraulic cylinder base clevis with 1-1/4 in. pin hole.	Dimensions Pin Hole 1 Pin Hole Size 1-1/4 in. Weight 6.16 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3-1/2 in.

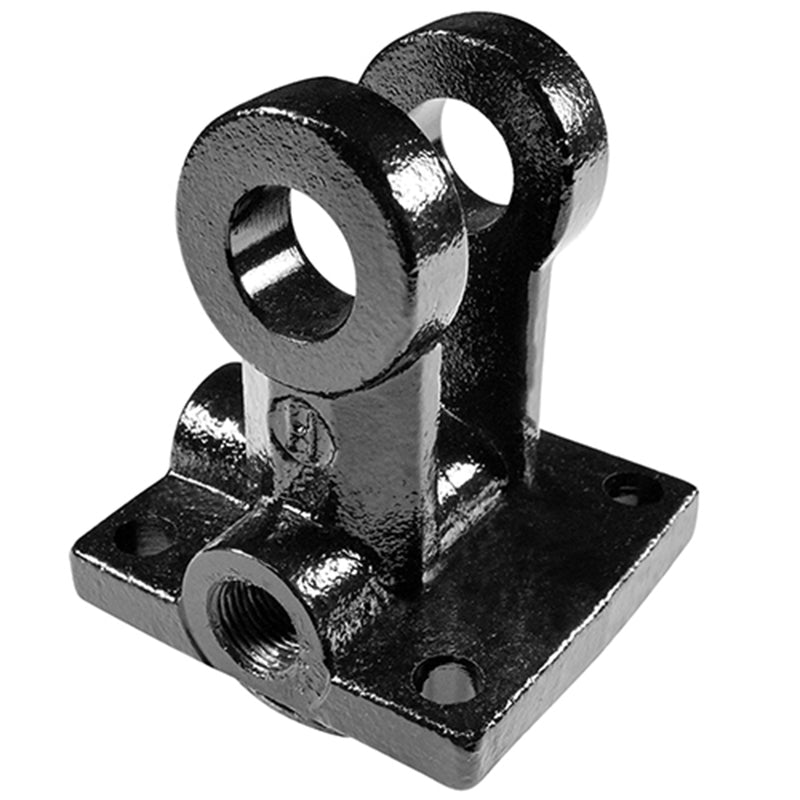

3 in. Hydraulic Cylinder Base Clevis SKU: #102130A 3 in. hydraulic cylinder base clevis for secure cylinder mounting.	Dimensions Pin Hole Size 1 in. Weight 4.65 lbs.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3 in.

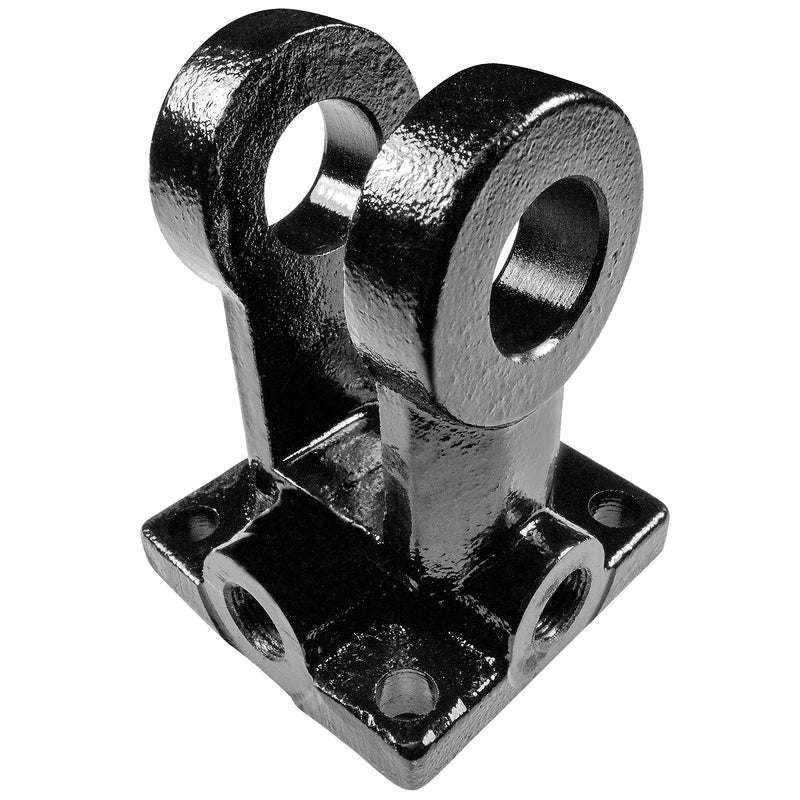

2-1/2 in. Hydraulic Cylinder Base Clevis SKU: #102129A 2-1/2 in. hydraulic cylinder base clevis with 1 in. pin hole.	Dimensions Pin Hole 1 Pin Hole Size 1 in. Weight 3.28 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2-1/2 in.

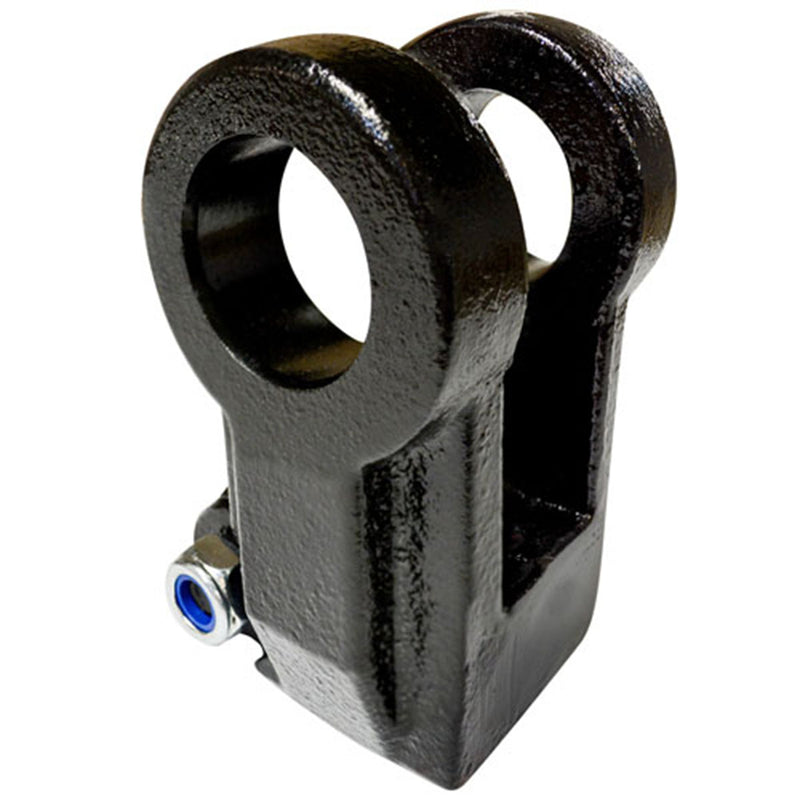

1-1/4 in. Hydraulic Rod Clevis with Pin SKU: #102110A 1-1/4 in. hydraulic rod clevis with pin designed for hydraulic cylinder and linkage applications.	Dimensions Pin Hole 1 in. Pin Hole Size 1 in. Weight 2.75 lb	Specifications Brand Grizzly Cylinder Bore 3-1/2 in. Fits Bore Size -

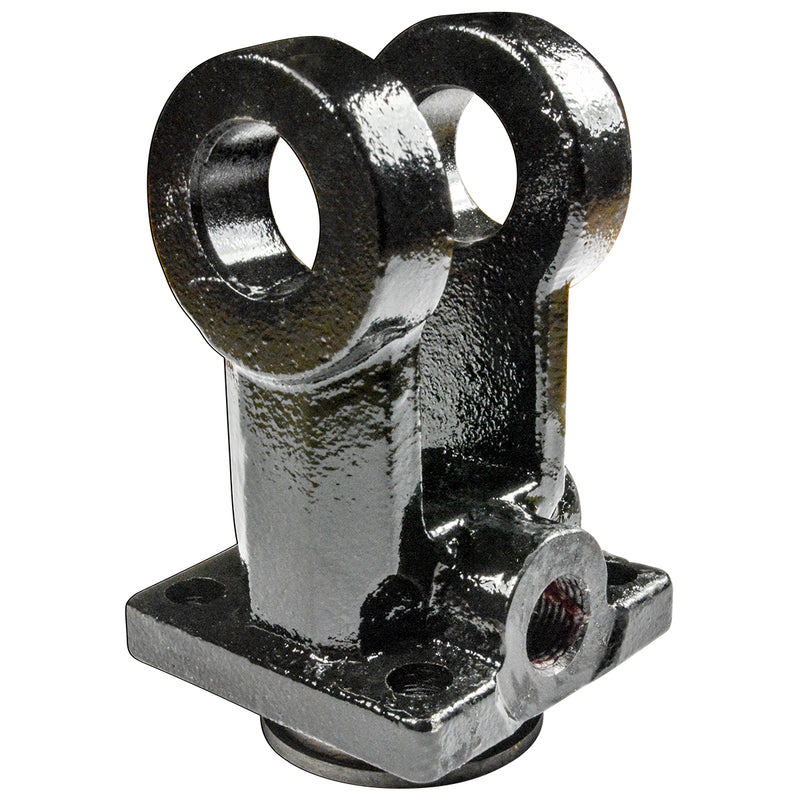

2 in. Hydraulic Cylinder Base Clevis SKU: #102128A 2 in. hydraulic cylinder base clevis with 1 in. pin hole.	Dimensions Pin Hole Size 1 in. Weight 2.64 lbs.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2 in.

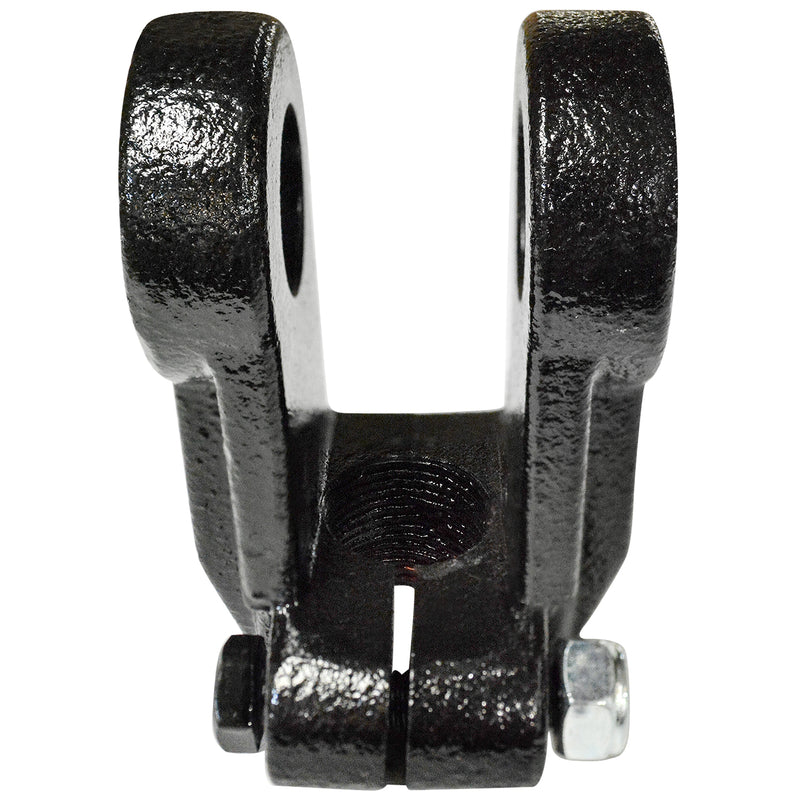

1-1/8 in.-12 UNF Hydraulic Cylinder Rod Clevis SKU: #102105A Hydraulic cylinder rod clevis with 1-1/8 in.-12 UNF thread and 1 in. pin compatibility.	Dimensions Pin Hole Size 1 in Thread Pitch 12 UNF	Specifications Brand Grizzly Cylinder Bore 2 in. Fits Bore Size -

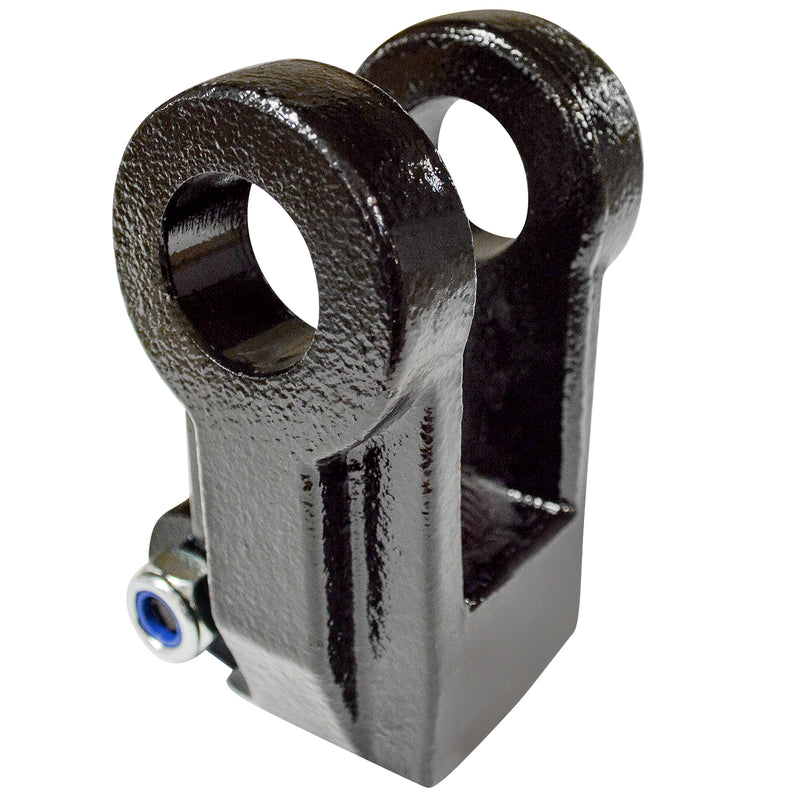

1-1/4 in. Hydraulic Cylinder Rod Clevis SKU: #102108A Hydraulic cylinder rod clevis for 3 in. cylinders with 1-1/4 in. rods.	Dimensions Pin Hole 1 Pin Hole Size 1 in. Weight 2.38 lb	Specifications Brand Grizzly Cylinder Bore 3 in. Fits Bore Size -
1-1/2 in. UNF Hydraulic Cylinder Rod Clevis SKU: #107154A Hydraulic cylinder rod clevis with 1-1/2 in. UNF fine thread and 1 in. pin hole for compatible hydraulic cylinder applications.	Dimensions Pin Hole Size 1 in. Thread Pitch UNF Fine Thread Weight 2 lb	Specifications Brand Grizzly Fits Rod Size 1-1/2 in. or 2 in. Thread 1-1/2 in.

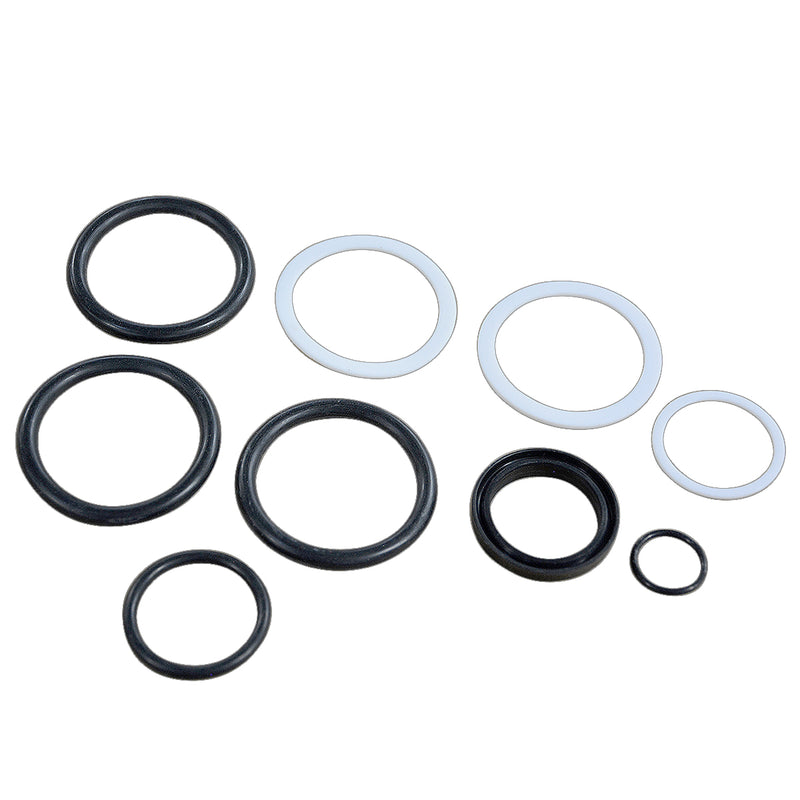

Hydraulic Cylinder Combo Seal Kit for Seal Kits 46905 & 102092 SKU: #108523 Combo hydraulic cylinder seal kit combining components from seal kits 46905 and 102092.	Dimensions Pin Hole Size - Weight 0.61 lb	Specifications Brand Grizzly Cylinder Bore - Rod Thread -

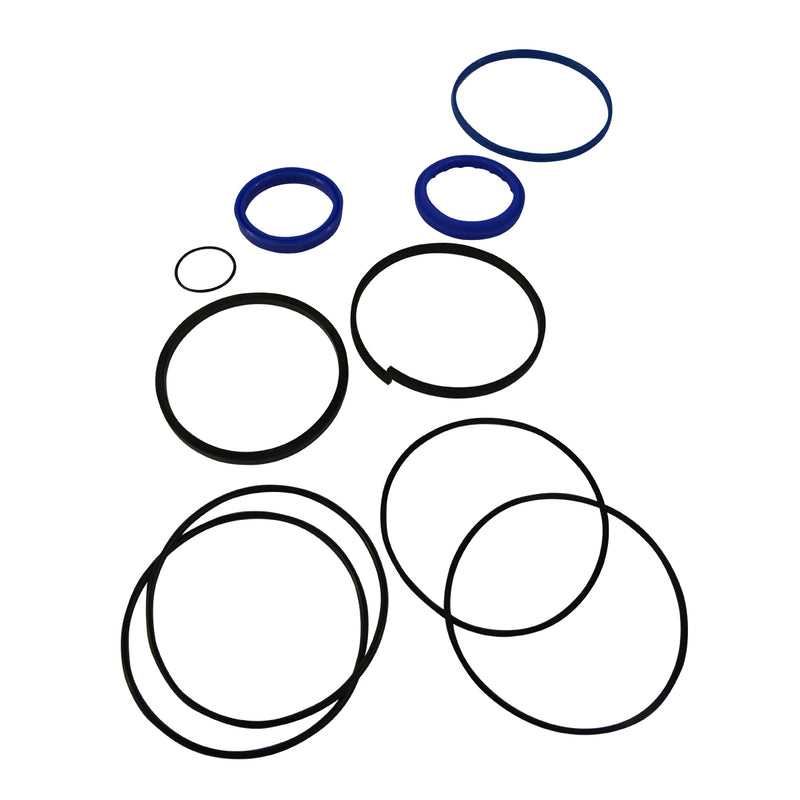

4 in. Bore x 2 in. Rod Hydraulic Cylinder Seal Kit SKU: #123742 Hydraulic cylinder seal kit for 4 in. bore and 2 in. rod applications.	Dimensions Pin Hole Size - Weight 0.5 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 4 in.

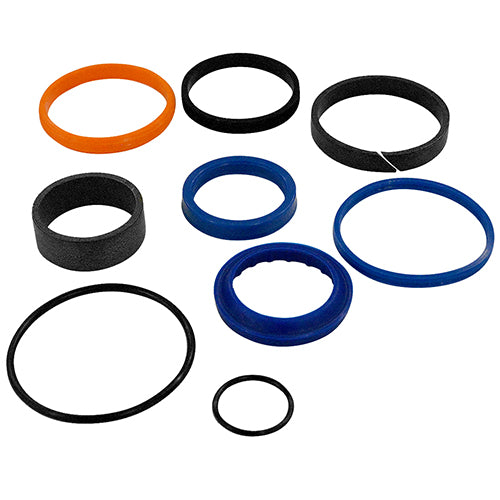

2-1/2 in. Bore x 1-1/4 in. Rod Hydraulic Cylinder Seal Kit TC2500125-SKT SKU: #123743 Hydraulic cylinder seal kit for 2-1/2 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.5 lb.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2-1/2 in.
2 in. Bore x 1-1/4 in. Rod Seal Kit T3020XX09 SKU: #102100 8-piece hydraulic cylinder seal kit for 2 in. bore and 1-1/4 in. rod applications.	Dimensions Diameter - Rod 1-1/4 in. Weight .17 lbs.	Specifications Brand Grizzly Cylinder Bore 2 in. Fits Bore Size 2 in.
4 in. Bore x 1-3/4 in. Rod Hydraulic Cylinder Seal Kit SKU: #102098A Hydraulic cylinder seal kit for 4 in. bore and 1-3/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.17 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 4 in.

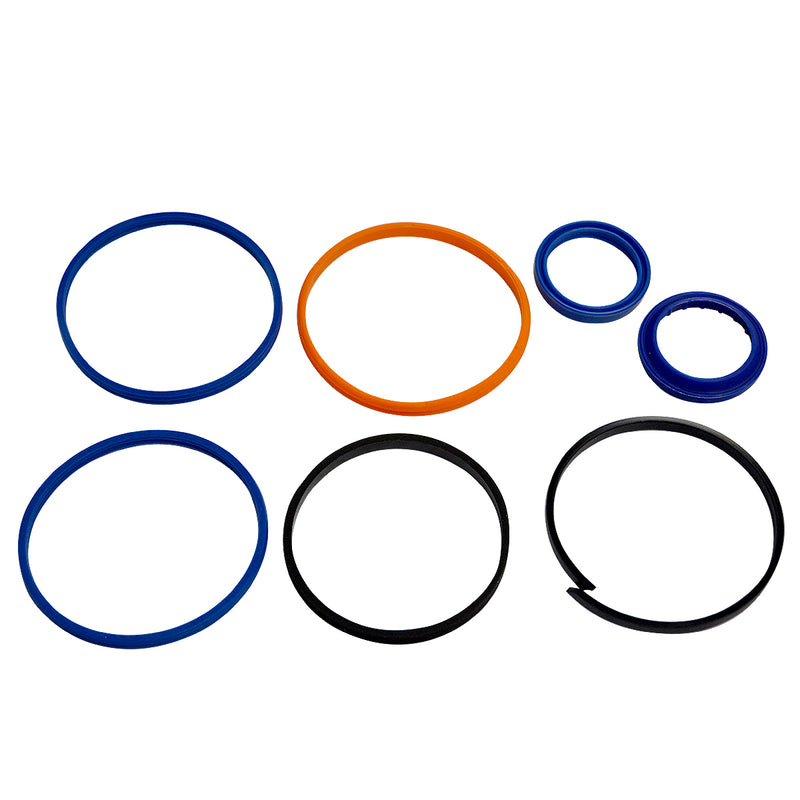

3 in. Bore x 1-1/4 in. Rod Seal Kit T2530XX10 SKU: #102092 Hydraulic cylinder seal kit for 3 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size -	Specifications Cylinder Bore - Fits Bore Size 3 in. Fits Rod Size 1-1/4 in.

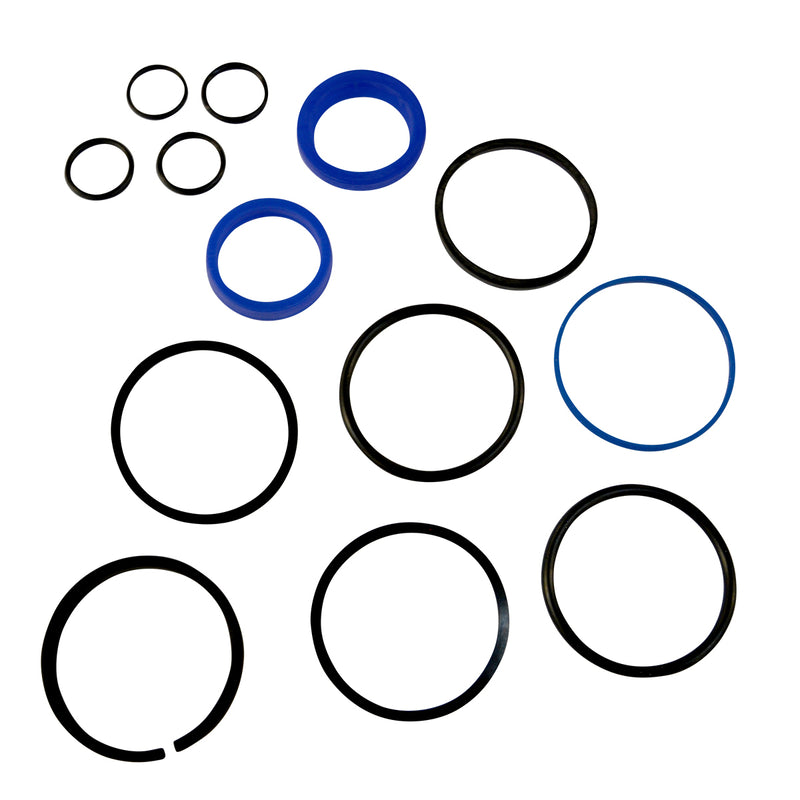

2 in. Bore x 1-1/8 in. Rod Hydraulic Cylinder Seal Kit SKU: #117379 Hydraulic cylinder seal kit for 2 in. bore and 1-1/8 in. rod applications.	Dimensions Diameter - Rod 1-1/8 in. Pin Hole Size - Weight 0.11 lb	Specifications Brand Grizzly Cylinder Bore 2 in. Fits Bore Size 2 in.

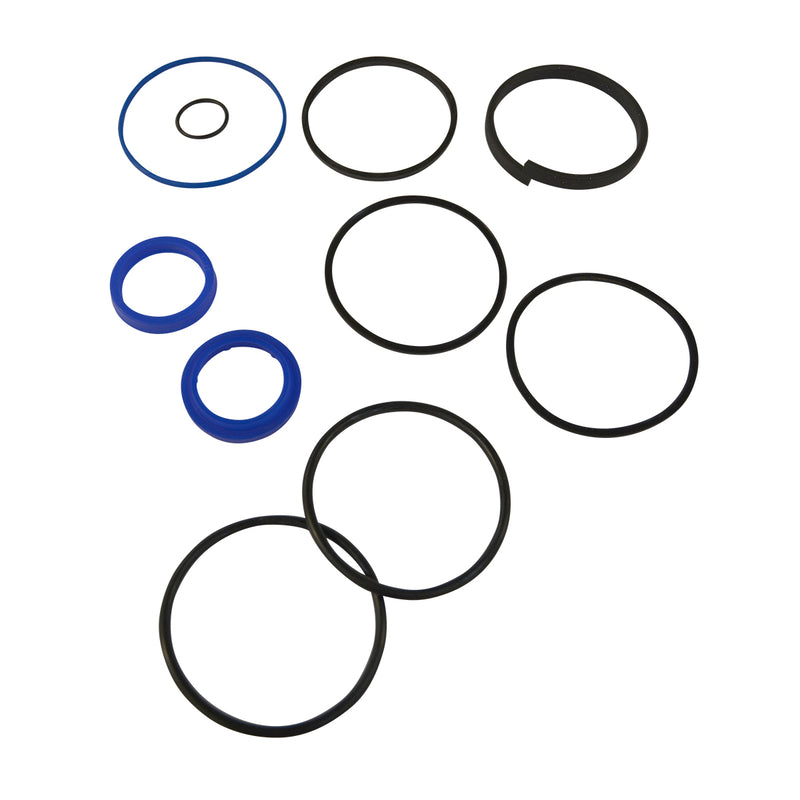

2-1/2 in. Bore x 1-1/8 in. Rod Hydraulic Cylinder Seal Kit SKU: #117380 Hydraulic cylinder seal kit for 2-1/2 in. bore and 1-1/8 in. rod applications.	Dimensions Pin Hole Size - Weight 0.11 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2-1/2 in.
3 in. Bore x 1-1/4 in. Rod Seal Kit TC300125 SKU: #117381 Hydraulic cylinder seal kit for 3 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.11 lb.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3 in.
3-1/2 in. Bore x 1-1/2 in. Rod Hydraulic Cylinder Seal Kit SKU: #102095A Hydraulic cylinder seal kit for 3-1/2 in. bore and 1-1/2 in. rod applications.	Dimensions Pin Hole Size - Weight 0.11 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3-1/2 in.
3 in. Bore x 1-1/2 in. Rod Hydraulic Cylinder Seal Kit SKU: #106526A Hydraulic cylinder seal kit for 3 in. bore and 1-1/2 in. rod applications.	Dimensions Pin Hole Size - Weight 0.11 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3 in.

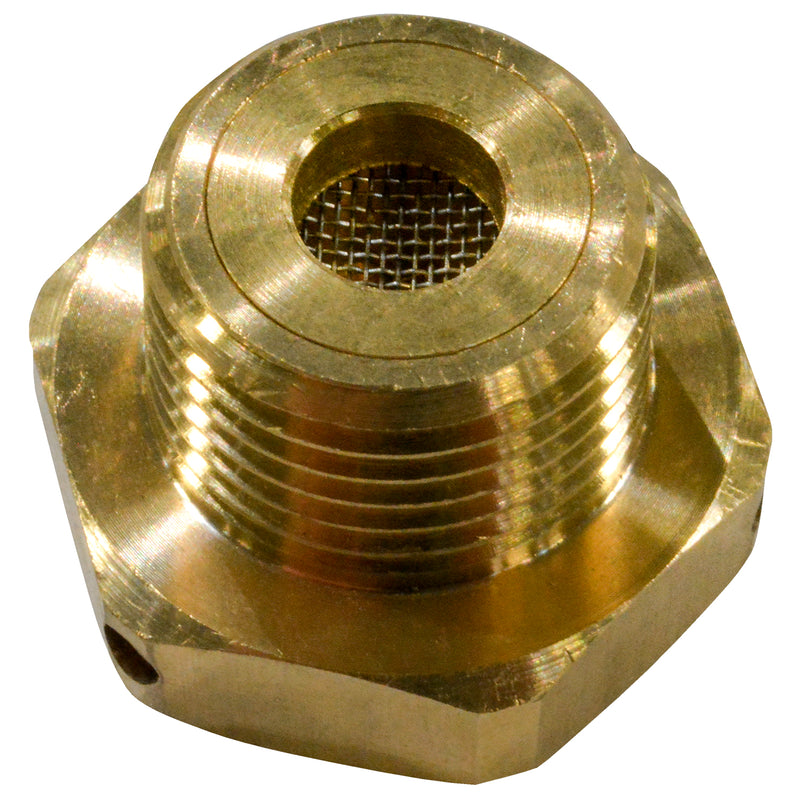

3/8 in. NPT Breather Plug SKU: #90614A 3/8 in. NPT brass breather plug with hex head for pressure-relief and venting applications.	Dimensions No dimensions available	Specifications Brand Grizzly Material Brass Thread 3/8 in.
2-1/2 in. Bore x 1-1/4 in. Rod Hydraulic Cylinder Seal Kit W3025125-SKTL SKU: #106525A Hydraulic cylinder seal kit for 2-1/2 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.07 lb.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2-1/2 in.
3 in. Bore x 1-1/4 in. Rod Seal Kit TC3000125 SKU: #105990A Hydraulic cylinder seal kit for 3 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.05 lb.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3 in.
2 in. Bore x 1-1/4 in. Rod Seal Kit TC3020125 SKU: #106524A Hydraulic cylinder seal kit for 2 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.05 lb.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2 in.

Brand	Grizzly
Cylinder Bore	-
Fits Bore Size	4 in.
Fits Rod Size	4 in.
Material	Ductile Cast Iron
Rod Thread	-
Type	Base Clevises

Brand	Grizzly
Color	Black
Fits Bore Size	4 in.
Material	Ductile Cast Iron
Type	Clevis
Working Pressure	2,500 PSI

Cylinder Bore	-
Fits Bore Size	3 in.
Fits Rod Size	1-1/4 in.
Rod Thread	-
Type	Seal Kit
