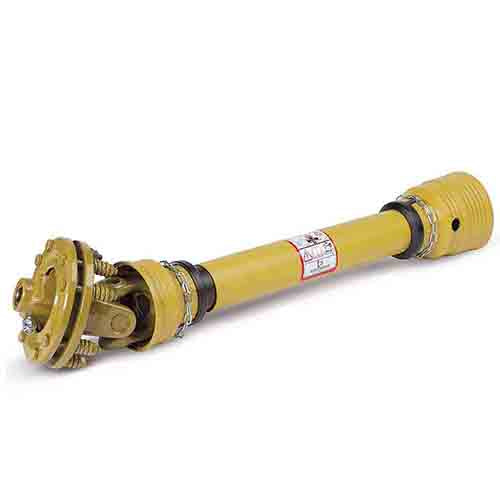

37-11/16 in. Series 4 PTO Assembly with FD1 Slip Clutch and 1-3/8 in.

Description

Keep PTO-driven equipment operating efficiently with this Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features an FD1 slip clutch and 1-3/8 in. 6-spline connections for implement and tractor compatibility. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.

Dimension

Extended Length:

51-1/2 in.

Length - Overall:

37-11/16 in.

Weight:

36 lb

Specification

Assembly Description:

AX41071-16405

Brand:

Eurocardan

Description:

FD1 Slip Clutch - 1-3/8 in. x 6 Spline

Features:

Series 4 PTO assembly with FD1 slip clutch protection
1-3/8 in. x 6-spline driveline connections for compatible PTO equipment
Slip clutch helps protect driveline components from shock loads
Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM
Designed for light-duty tillers and lift cutter applications

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Max RPM:

540

Series Size:

Type:

PTO Assembly

Used On:

5 ft Lift Cutter, Light Duty Tillers

37-11/16 in. Series 4 PTO Assembly with FD1 Slip Clutch and 1-3/8 in. 6-Spline Yokes
