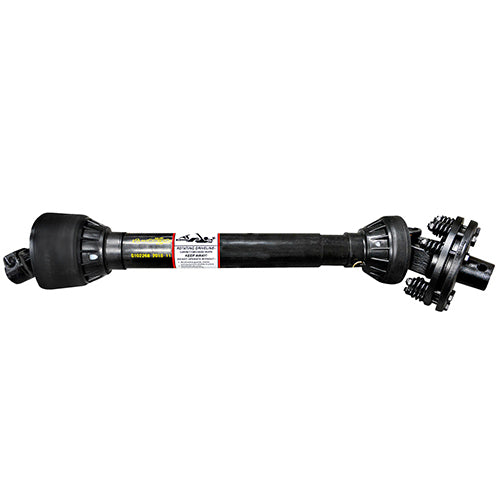

34-1/2 in. Series 4 PTO Shaft with Slip Clutch

Product Documents

102268_ins_001.pdf

Description

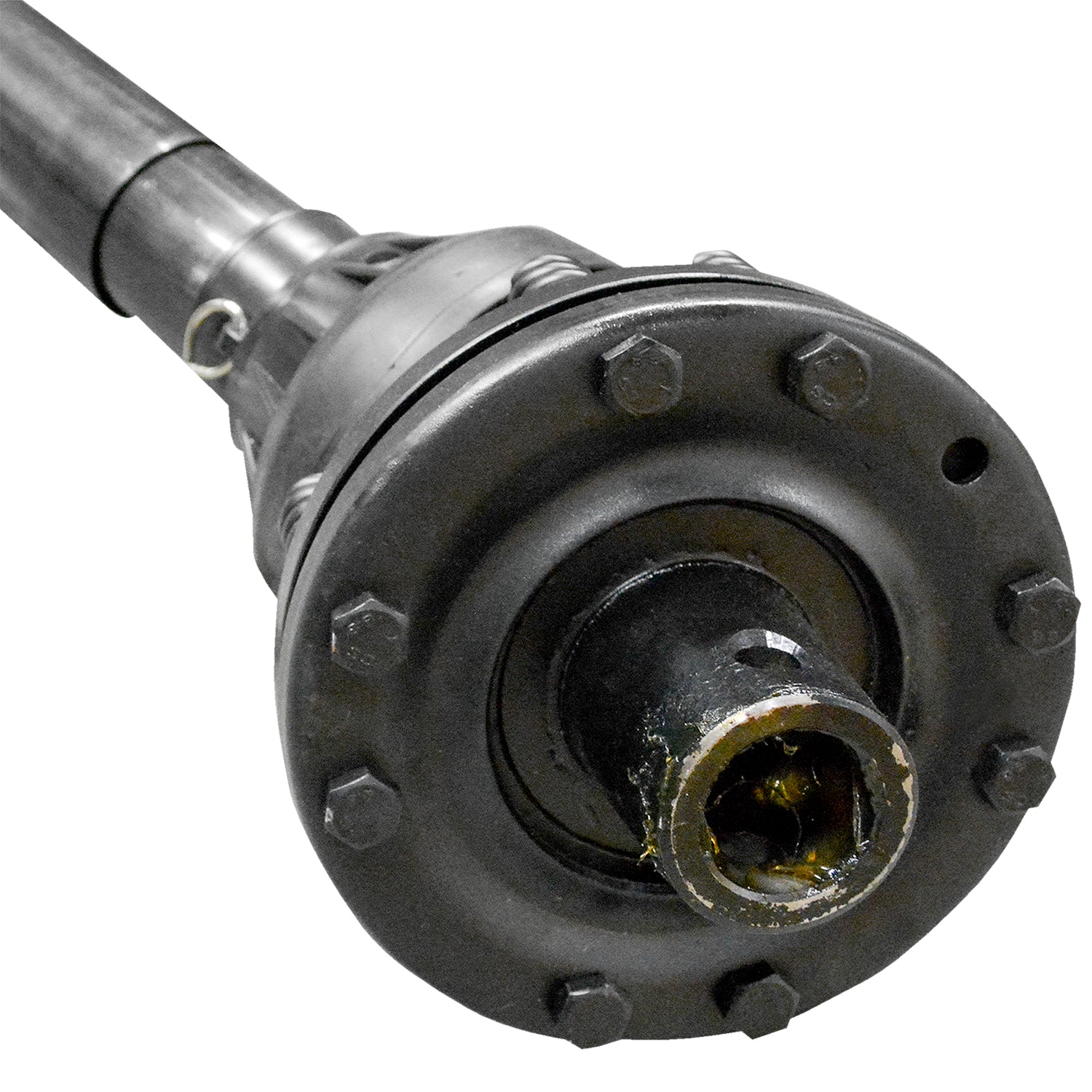

This Series 4 PTO shaft is designed for use with tillers and features a tractor end yoke and an implement end yoke. The tractor end includes a quick detach yoke with a splined connection, while the implement end features a smooth yoke with a slip clutch for overload protection.

The slip disc clutch helps protect machinery gears from potential damage during sudden torque spikes. Built for reliable agricultural performance, this PTO shaft delivers consistent power transfer in demanding tilling operations.

Dimension

Extended Length:

42-3/8 in.

Length - Retracted:

34-1/2 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

Slip disc clutch protects machinery gears from damage during torque overload
Quick detach yoke on tractor end enables fast, tool-free connection
Smooth implement end yoke with bolt attachment for secure equipment mounting
Series 4 construction engineered for reliable tilling performance
Rated for both standard and high-speed PTO speeds

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Attachment Type:

Bolt Attachment

Implement End Clutch Type:

Slip Clutch

Implement End Component:

Yoke

Implement End Connection Style:

Smooth

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Connection Style:

Quick Detach

Tractor End Spline Count:

Type:

PTO Shaft

Used On:

Series 4 tiller
