S-Tines

ProductDimension Specification
S-TINE 45X12 M10 WITHOUT PT
1-3/4 in. x 1/2 in. x 26 in. High Clearance Danish S-Tine Shank

SKU: #101602

High clearance Danish S-tine shank, heat treated steel construction, designed for use with danish style cultivators and sweep attachments.
Dimensions
Height
26 in.
Thickness
1/2 in.
Weight
11 lb
Specifications
Material
Heat Treated Steel
Style
Danish, High Clearance
Type
S-Tine

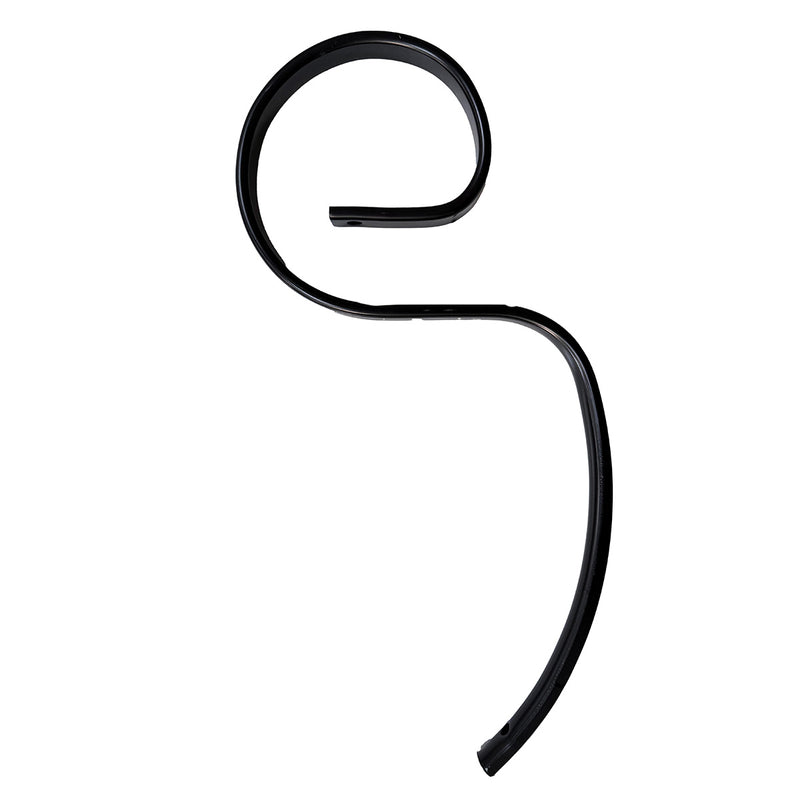

S-TINE 32X12 HIGH CLEARANCE W/O
1-1/4 in. x 1/2 in. x 26 in. High Clearance S-Tine Shank

SKU: #101601

High clearance S-tine shank without point, heat treated steel construction, designed for soil preparation and field leveling.
Dimensions
Ground Clearance
15-3/8 in.
Height
26 in.
Thickness
1/2 in.
Specifications
Material
Heat Treated Steel
Style
High Clearance, Without Point
Type
S-Tine

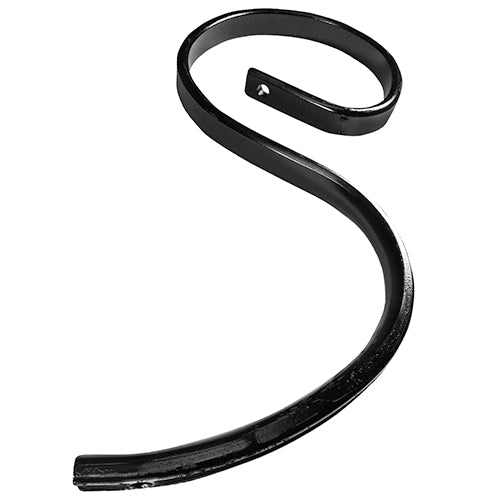

S-TINE 32X12 WITHOUT PT
1-1/4 in. x 1/2 in. x 22 in. Heavy Duty Danish S-Tine Shank

SKU: #101600

Heavy duty Danish S-tine shank without point, heat treated steel construction, designed for danish style cultivators and sweep attachments.
Dimensions
Ground Clearance
14-1/2 in.
Height
22 in.
Thickness
1/2 in.
Specifications
Material
Heat Treated Steel
Style
Danish, Heavy Duty, Without Point
Type
S-Tine
S-TINE 32X12 W/OUT PT 3" HIGH
26 in. x 1-1/4 in. x 1/2 in. High Clearance S-Tine

SKU: #102235

High clearance S-tine designed to fit John Deere 940-960 cultivators for tillage and cultivation applications.
Dimensions
Height
26 in.
Length - Overall
18-1/2 in.
Thickness
1/2 in.
Specifications
Style
High Clearance
Type
S-Tine

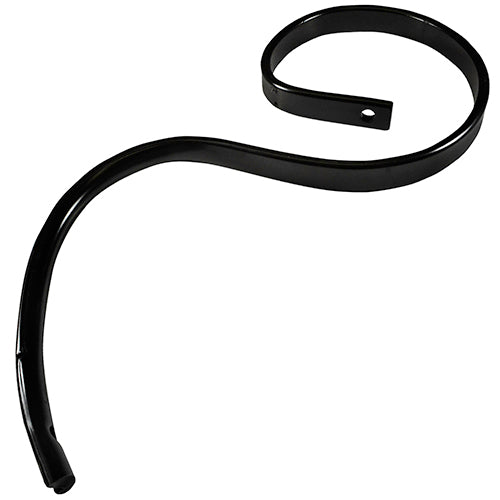

S-TINE 32X10 WITHOUT PT
1-1/4 in. x 3/8 in. x 21-1/4 in. Standard Duty Danish S-Tine Shank

SKU: #101599

Standard duty Danish S-tine shank without point, heat treated steel construction, designed for danish style cultivators and sweep attachments.
Dimensions
Ground Clearance
14-1/2 in.
Height
21-1/4 in.
Thickness
3/8 in.
Specifications
Material
Heat Treated Steel
Style
Danish, Standard Duty, Without Point
Type
S-Tine

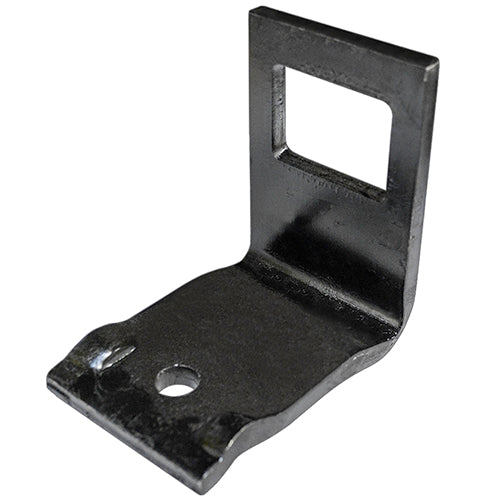

S-TINE CLAMP FOR 45X12 & 65X65
2-3/4 in. x 5/16 in. S-Tine Clamp for 2-1/2 in. Tool Bar

SKU: #102236

Heat treated steel S-tine clamp for tool bars, designed to securely hold S-tine shanks during cultivator operations.
Dimensions
Fits Shank Thickness
1/2 in.
Fits Shank Width
1-3/4 in.
Thickness
5/16 in.
Specifications
Fits Bar Size
2-1/2 in. x 2-1/2 in.
Material
Heat Treated Steel
Type
S-Tine Clamp

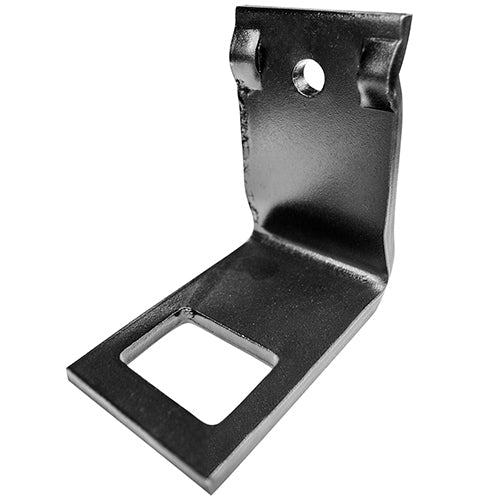

S-TINE CLAMP FOR 45X12X3X3
1-3/4 in. x 1/2 in. S-Tine Clamp for 3 in. x 3 in. Tool Bar

SKU: #103026

S-tine clamp for tool bars, steel construction, designed to securely mount S-tine shanks for cultivator applications.
Dimensions
Fits Shank Thickness
1/2 in.
Fits Shank Width
1-3/4 in.
Weight
2 lb
Specifications
Fits Bar Size
3 in. x 3 in.
Material
Steel
Type
S-Tine Clamp
12 mm x 45 mm Cultivator Clamp for 3 in. x 3 in. Square Bar

SKU: #83453

12 mm x 45 mm clamp designed to fit 3 in. x 3 in. square bar cultivator and chisel plow applications.
Dimensions
Thickness
15/32 in.
Weight
1.74 lb
Width - Overall
1-3/4 in
Specifications
Fits Bar Size
3 in. x 3 in.
Type
Clamp

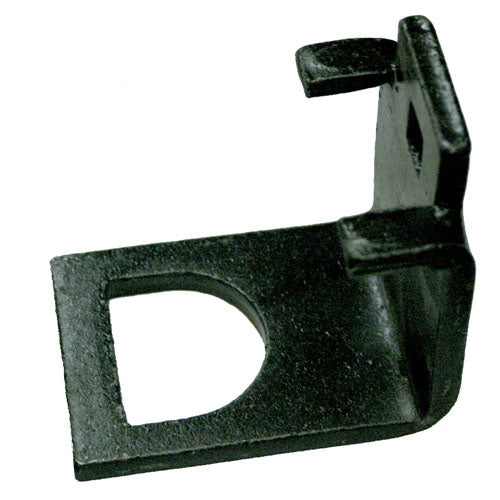

S TINE CLAMP 45MM TINE 2.5"X2.5"
1-3/4 in. S-Tine Clamp for 2-1/2 in. Tool Bar

SKU: #38132

S-tine clamp for tool bars, designed to securely mount S-tine shanks for cultivator applications.
Dimensions
Fits Shank Width
1-3/4 in.
Weight
1.5 lb
Specifications
Fits Bar Size
2-1/2 in. x 2-1/2 in.
Type
S-Tine Clamp

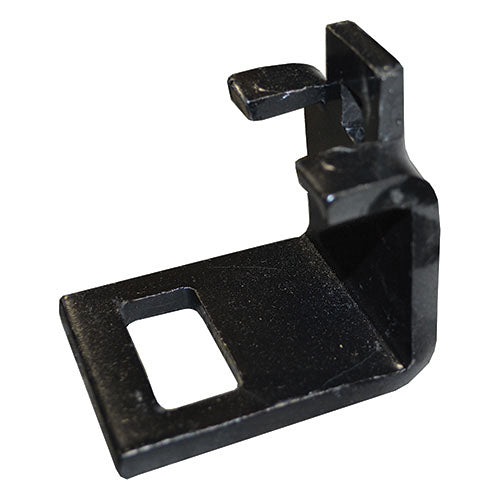

12 X 45 CLAMP FOR 2" X 2"
1/2 in. x 1-3/4 in. S-Tine Clamp for 2 in. Tool Bar

SKU: #83745

S-tine clamp for tool bars, fits S-tine shanks and uses carriage bolt for secure mounting.
Dimensions
Thickness
15/32 in.
Weight
1.25 lb
Width - Overall
1-3/4 in
Specifications
Fits Bar Size
2 in. x 2 in.
Type
Clamp

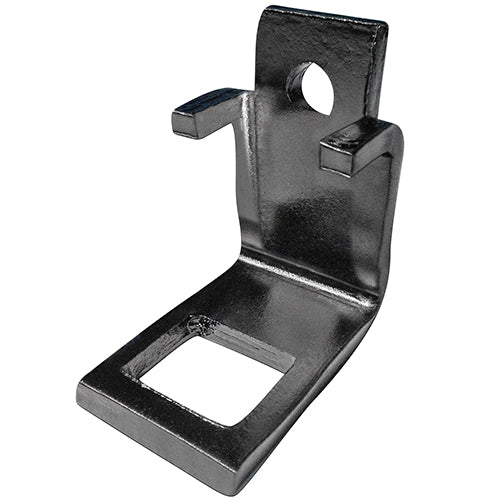

CLAMP 50X8 32X10MM M12
2 in. x 5/16 in. S-Tine Clamp for 2 in. Tool Bar

SKU: #102237

Heat treated steel S-tine clamp for tool bars, bolt and nut not included, designed for secure S-tine shank mounting.
Dimensions
Fits Shank Thickness
3/8 in.
Fits Shank Width
1-1/4 in.
Hole Size
1/2 in.
Specifications
Fits Bar Size
2 in. x 2 in.
Material
Heat Treated Steel
Type
S-Tine Clamp

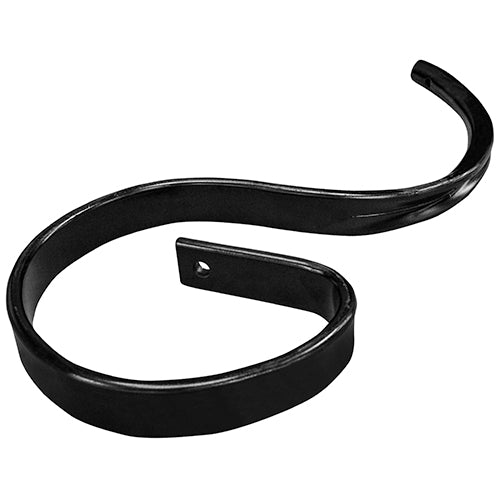

S-TINE WITHOUT PT 25X8
12-1/2 in. x 1-1/4 in. x 3/8 in. Standard Duty S-Tine

SKU: #104001

Standard duty S-tine designed for cultivator and tillage equipment applications.
Dimensions
Height
12-1/2 in.
Length - Overall
8-13/16 in.
Thickness
3/8 in.
Specifications
Style
Standard Duty
Type
S-Tine

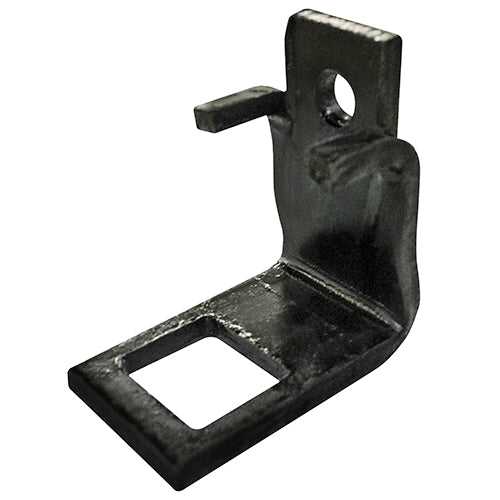

CLAMP 50X8 32X12+2"x2" M12
2 in. x 5/16 in. Heat Treated S-Tine Clamp for 2 in. Tool Bar

SKU: #102238

Heat treated steel S-tine clamp for tool bars, bolt and nut not included, designed for secure S-tine shank mounting.
Dimensions
Fits Shank Thickness
1/2 in.
Fits Shank Width
1-1/4 in.
Hole Size
1/2 in. Round
Specifications
Fits Bar Size
2 in. x 2 in.
Material
Heat Treated Steel
Type
S-Tine Clamp

Showing 13/13
