Sweeps, Forrowers, and Weeder Teeth

ProductDimension Specification
SNUB NOSE FURROWER 15"CUTTING
15 in. x 1/4 in. Snub Nose Furrower

SKU: #87355

The 15 in. x 1/4 in. snub nose furrower is designed for reliable furrow formation and durable field performance.
Dimensions
Length - Usable
15 in.
Thickness
1/4 in.
Weight
12.54 lb
Specifications
Hole Count
3
Material
Heat Treated Steel
Style
Snub Nose, Hole and Slot Bolt Pattern
2"X 18" X 1"CHISEL SPIKE 1/2"BH
18 in. x 2 in. x 1 in. Heat Treated Chisel Spike

SKU: #109309

Heat treated chisel spike with dual bolt holes for secure mounting, designed for effective soil penetration and tillage.
Dimensions
Hole Size
1/2 in.
Length - Overall
18 in.
Thickness
1 in.
Specifications
Brand
Agmate
Heat Treat
Heat Treated
Hole Count
2

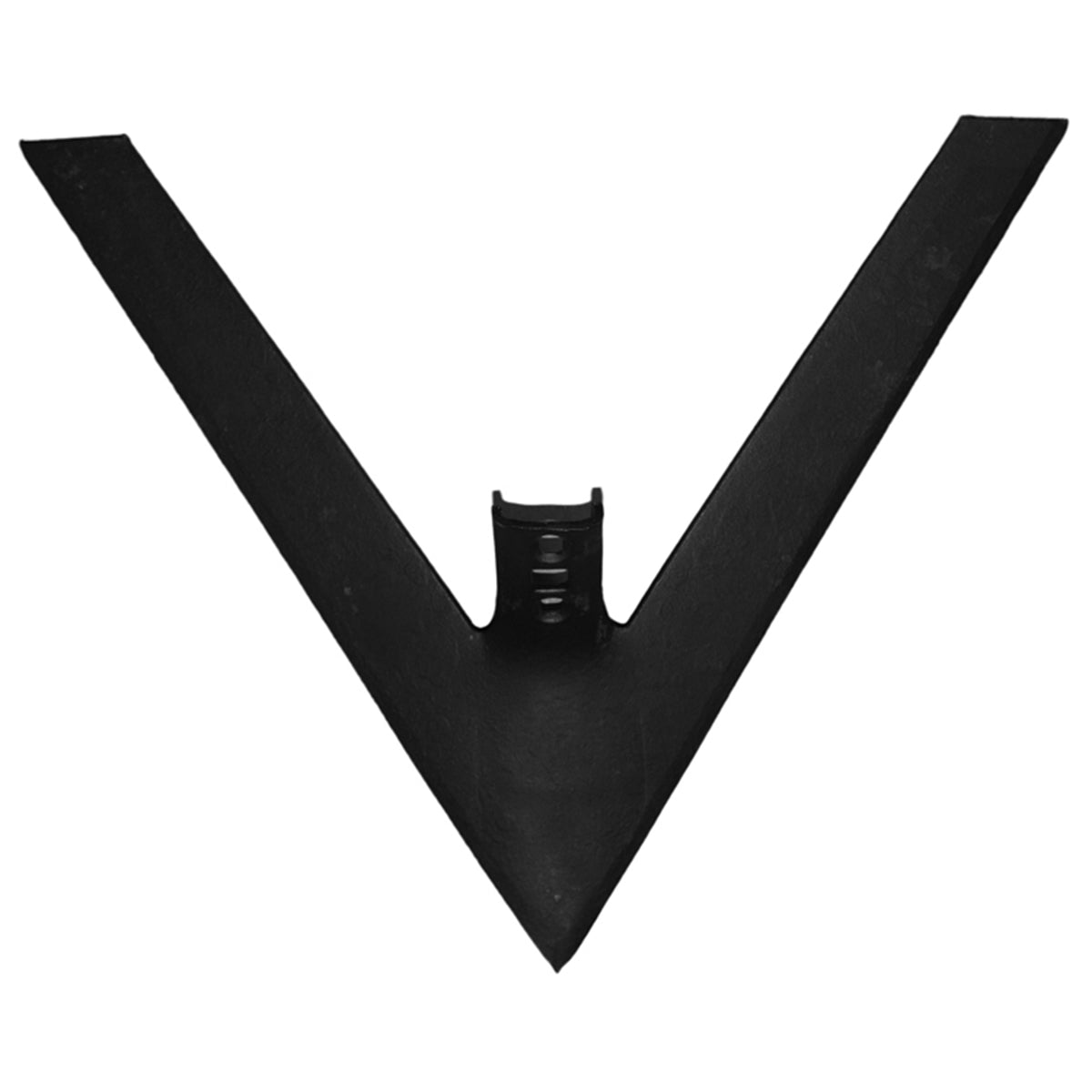

24" X 1/4" X 54 o STEM - ROW
24 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15367

24 in. x 1/4 in. row crop cultivator sweep with 2 in. center to center bolt pattern. Ideal for wide row crop cultivation.
Dimensions
Center-to-Center
2 in.
Stem Angle
54°
Thickness
1/4 in.
Specifications
Brand
Agmate
Hole Count
2
Style
Row Crop Cultivator

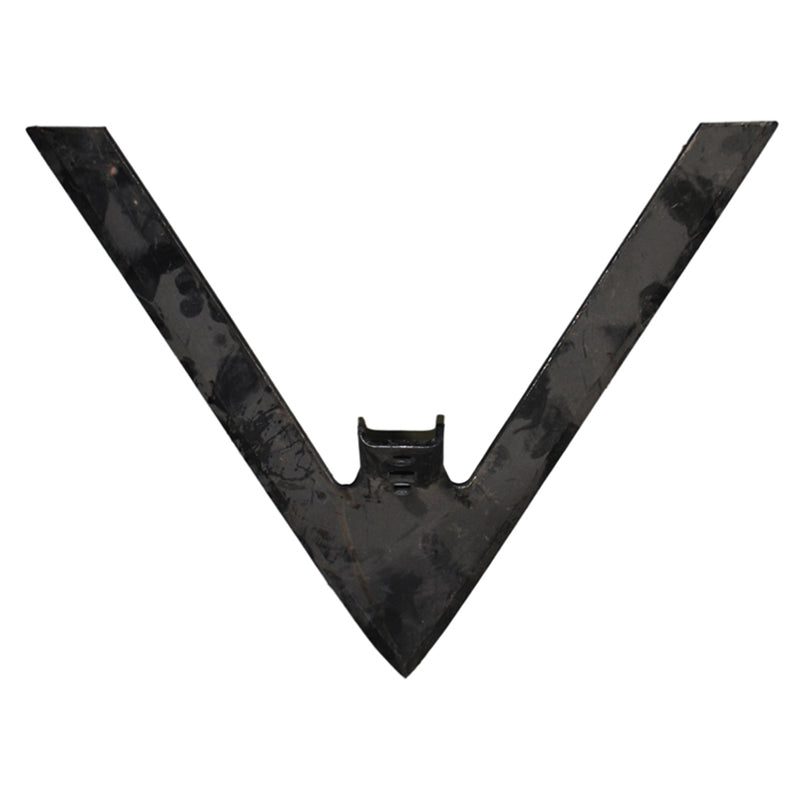

22" X 1/4" X 54 o STEM - ROW
22 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15365

22 in. x 1/4 in. row crop cultivator sweep with 2 in. center to center bolt pattern. Ideal for wide row crop cultivation.
Dimensions
Center-to-Center
2 in.
Stem Angle
54°
Thickness
1/4 in.
Specifications
Brand
Agmate
Hole Count
2
Style
Row Crop Cultivator
FURROWER 8" 1 HOLE W/11" WING
11 in. x 8 in. C1080 Heat Treated Steel Furrower Blade

SKU: #87657

11 in. wing width x 8 in. cutting width C1080 heat treated steel furrower blade with 7/16 in. bolt hole. Compact single hole mounting.
Dimensions
Bolt Hole
7/16 in.
Length - Usable
8 in.
Width - Overall
11 in.
Specifications
Hole Count
1
Material
C1080 Heat Treated Steel
Style
Furrower Blade, Single Hole Mount

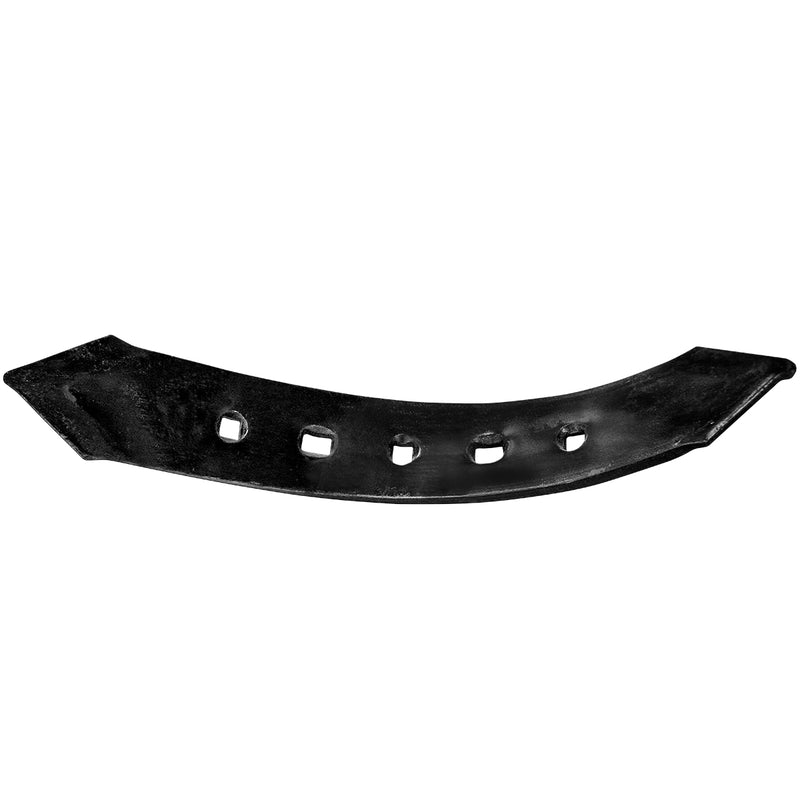

RH TWISTED CHISEL 3/8" X
23 in. x 3 in. x 3/8 in. Right Hand Twisted Chisel

SKU: #15460

Right hand twisted chisel designed for soil penetration and tillage applications.
Dimensions
Length - Overall
23 in.
Thickness
3/8 in.
Weight
6 lb
Specifications
Brand
Agmate
Type
Chisel Point

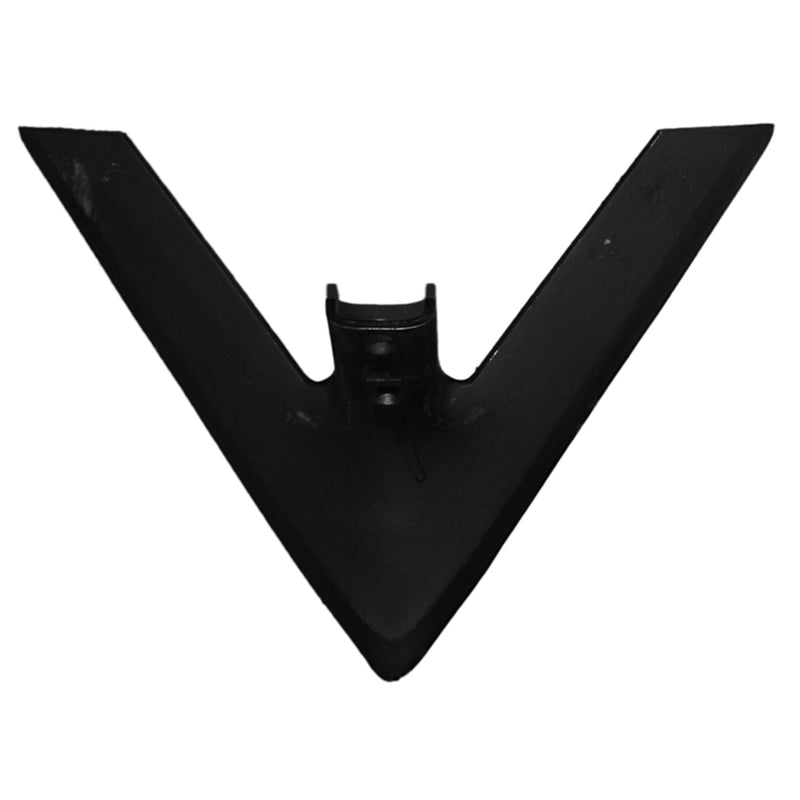

18" X 1/4" ROW CROP SWEEP
18 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15362

18 in. x 1/4 in. row crop cultivator sweep with 2-1/4 in. bolt centers. Wide wing design for effective row crop cultivation.
Dimensions
Center-to-Center
2-1/4
Stem Angle
54°
Thickness
1/4 in.
Specifications
Brand
Agmate
Hole Count
2
Style
Row Crop Cultivator
2" X 16" X 5/8" CHISEL PT
16 in. x 2 in. x 5/8 in. Chisel Plow Point

SKU: #89991

Chisel plow point with slotted and round bolt holes, designed for secure mounting and effective soil penetration.
Dimensions
Length - Overall
16 in.
Thickness
5/8 in.
Weight
5.5 lb
Specifications
Hole Count
2
Type
Chisel Point
FURROWER 8" 2-HOLE W/SLOT W/11"
11 in. x 1/4 in. Furrower Blade with 2-Hole Slot Pattern

SKU: #87356

11 in. wing width x 8 in. cutting width x 1/4 in. thick furrower blade with 2-hole slotted bolt pattern for adjustable shank mounting.
Dimensions
Bolt Pattern
2-Hole with Slot
Length - Usable
8 in.
Thickness
1/4 in.
Specifications
Brand
Agmate
Hole Count
2
Style
Furrower Blade, 2-Hole Slotted Bolt Pattern

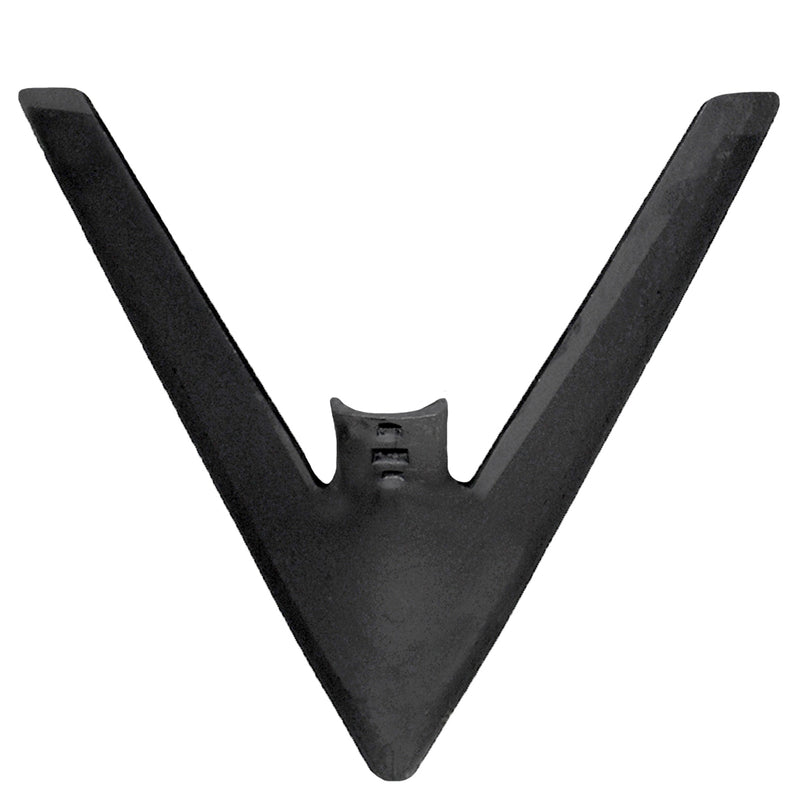

16" X 1/4" X 54STEM ROW CROP SWP
16 in. x 1/4 in. Heat Treated Row Crop Cultivator Sweep

SKU: #15355

Dimensions
No dimensions available
Specifications
No specifications available

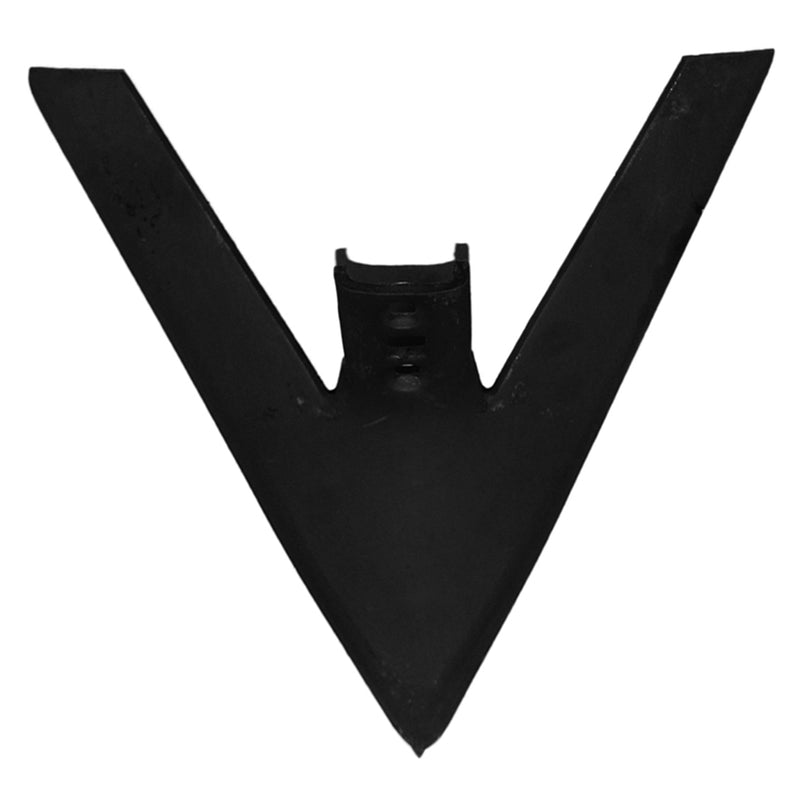

14" X 1/4" X 54 o STEM - ROW
14 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15349

14 in. x 1/4 in. row crop cultivator sweep with 2 in. center to center bolt pattern. Ideal for row crop cultivation.
Dimensions
Center-to-Center
2 in.
Stem Angle
54°
Thickness
1/4 in.
Specifications
Brand
Agmate
Hole Count
2
Style
Row Crop Cultivator

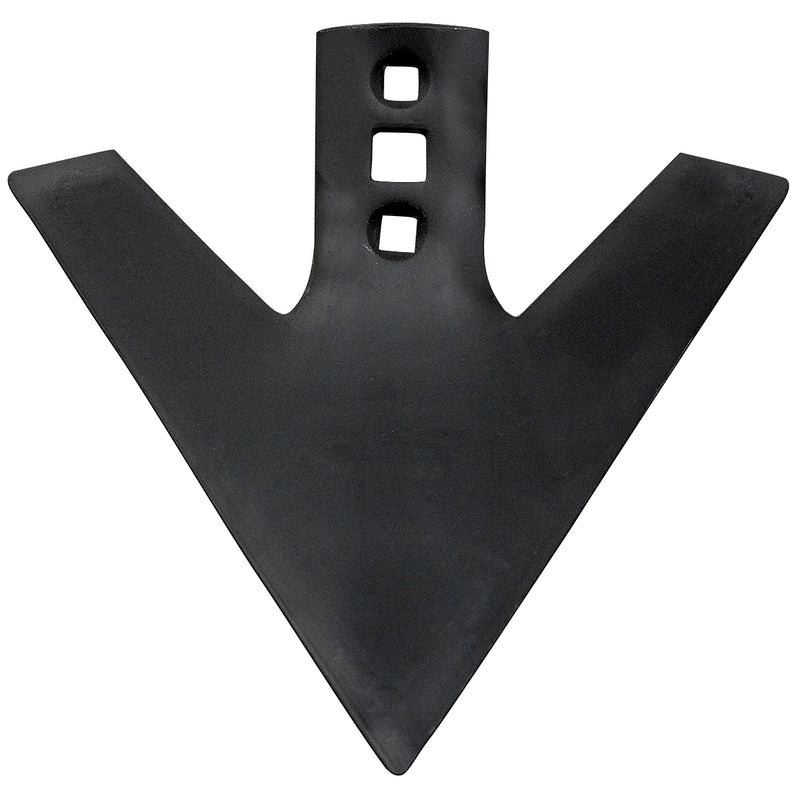

12" X 1/4" X 54 o STEM - ROW
12 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15347

12 in. x 1/4 in. row crop cultivator sweep with 2 in. bolt centers. Uses 7/16 in. #3 plow bolts for secure shank mounting.
Dimensions
Bolt Size
7/16 in.
Center-to-Center
2 in.
Stem Angle
54°
Specifications
Brand
Agmate
Hole Count
2
Style
Row Crop Cultivator

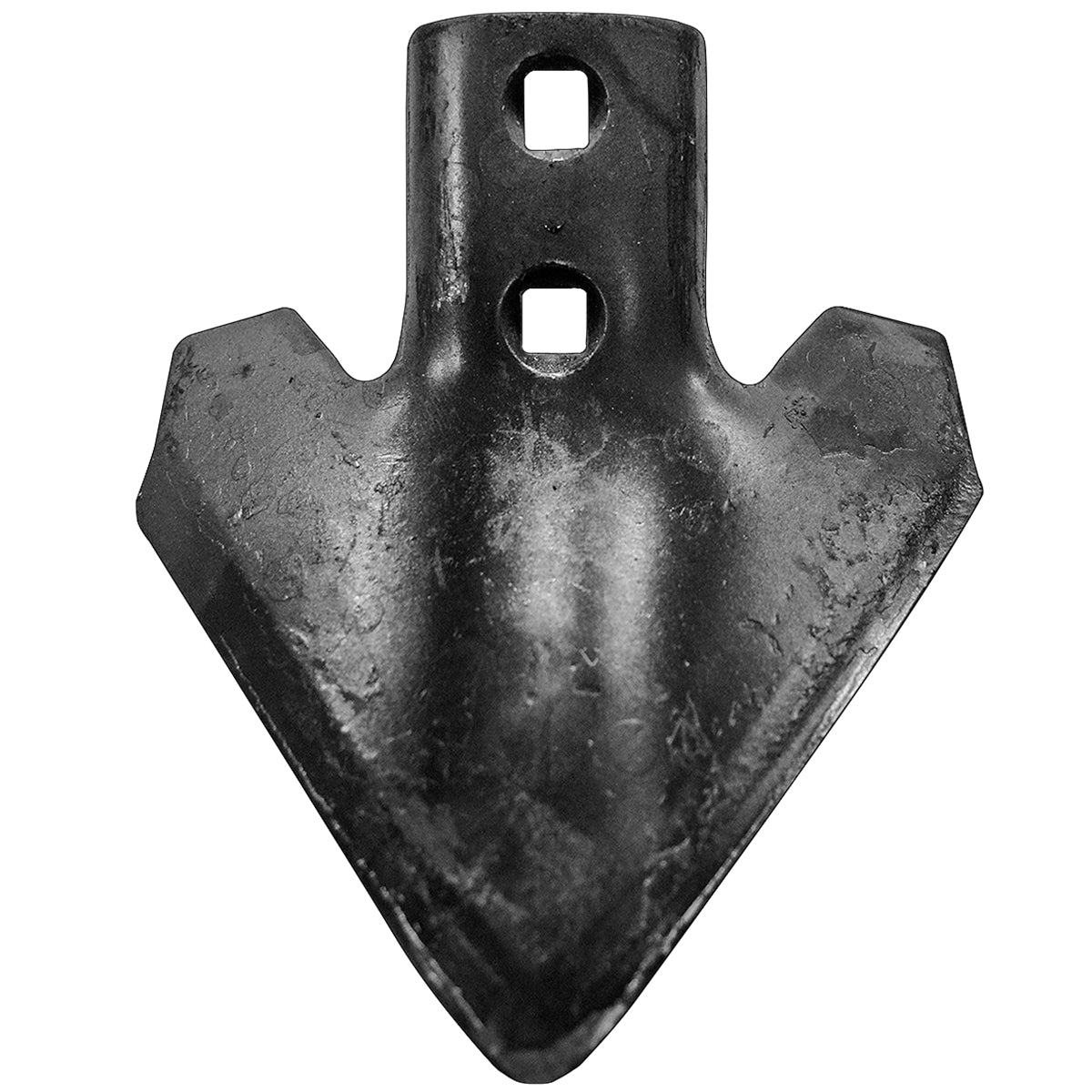

8" X 1/4" FIELD CULTIVATOR SWEEP
8 in. x 1/4 in. Forged Steel Field Cultivator Sweep

SKU: #15519

8 in. x 1/4 in. x 47° forged steel field cultivator sweep. Requires two 7/16 in. grade 5 plow bolts on 1-3/4 in. center pattern.
Dimensions
Bolt Center Spacing
1-3/4 in.
Bolt Pattern
Bolt Center
Hole Size
7/16 in.
Specifications
Brand
Agmate
Hole Count
2
Material
Forged Steel
10 X 1/4" FIELD CULTIVATOR SWEEP
10 in. x 1/4 in. Forged Steel Field Cultivator Sweep

SKU: #15521

10 in. x 1/4 in. x 47° forged steel field cultivator sweep. Requires two 7/16 in. grade 5 plow bolts on 1-3/4 in. center pattern.
Dimensions
Bolt Center Spacing
1-3/4 in.
Bolt Pattern
Bolt Center
Hole Size
7/16 in.
Specifications
Brand
Agmate
Hole Count
2
Material
Forged Steel

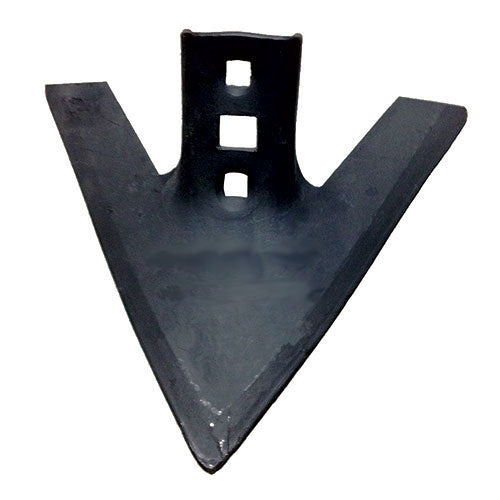

10" X 1/4" ROW CROP SWEEP
10 in. x 1/4 in. Wide Wing Row Crop Bedding Sweep

SKU: #28382

10 in. x 1/4 in. wide wing row crop bedding sweep with 2-1/4 in. bolt centers. Ideal for bedding and row crop cultivation.
Dimensions
Center-to-Center
2-1/4
Stem Angle
54°
Thickness
1/4 in.
Specifications
Brand
Agmate
Hole Count
3
Style
Wide Wing Bedding Sweep

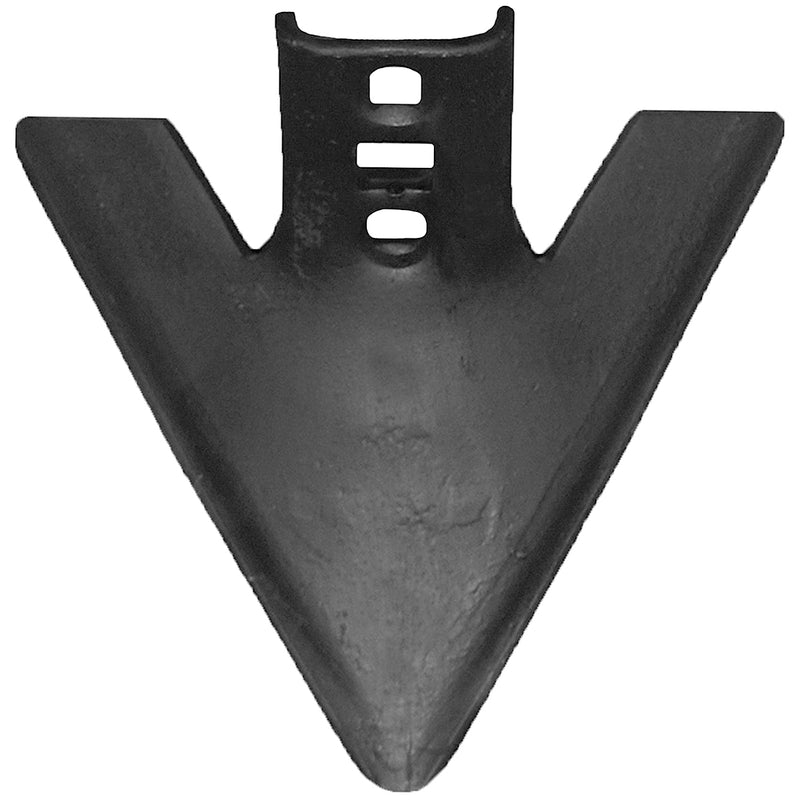

8" X 1/4" X 54 o STEM - ROW CROP
8 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15343

8 in. x 1/4 in. row crop cultivator sweep with 2 in. bolt centers. Uses 7/16 in. #3 grade 5 plow bolts for secure shank mounting.
Dimensions
Bolt Size
7/16 in.
Center-to-Center
2 in.
Stem Angle
54°
Specifications
Bolt Grade
Grade 5 #3 Plow Bolts
Brand
Agmate
Hole Count
2
7" X 1/4" FIELD CULTIVATOR SWEEP
7 in. Field Cultivator Sweep

SKU: #15518

7 in. field cultivator sweep with a 47° stem angle, 1/4 in. thickness, and 1-3/4 in. bolt centers for field cultivator applications.
Dimensions
Bolt Center Spacing
1-3/4 in.
Bolt Size
7/16 in.
Stem Angle
47°
Specifications
Bolt Count
2
Brand
Agmate
Type
Field Cultivator Sweep

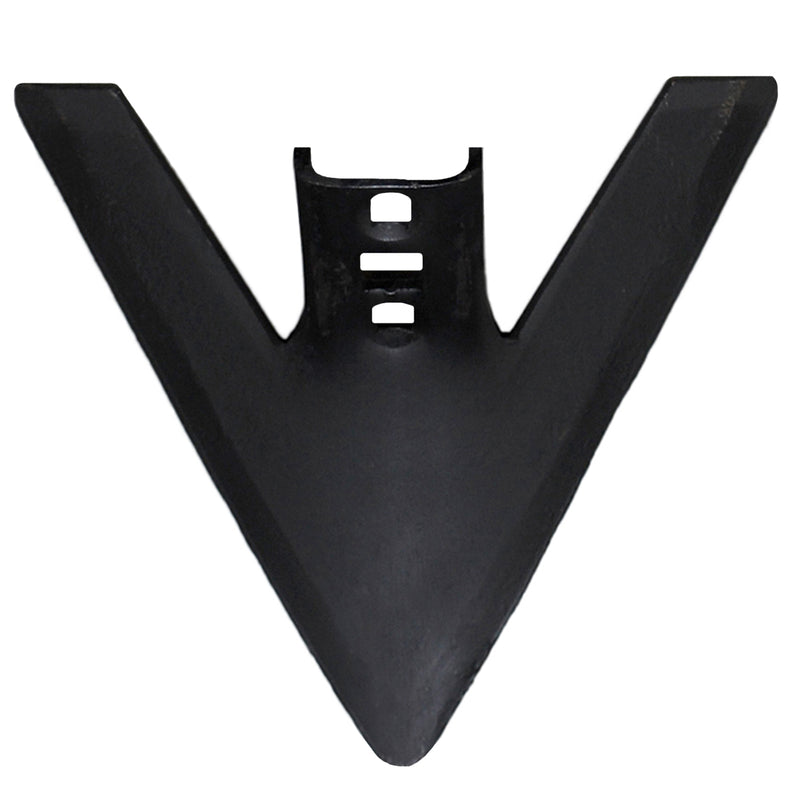

10" X 1/4" X 54 o STEM - ROW
10 in. x 1/4 in. Forged Steel Row Crop Cultivator Sweep

SKU: #15345

10 in. x 1/4 in. forged steel row crop cultivator sweep with 2 in. bolt centers. Uses 7/16 in. #3 grade 5 plow bolts for secure mounting.
Dimensions
Bolt Size
7/16 in.
Center-to-Center
2 in.
Stem Angle
54°
Specifications
Bolt Grade
Grade 5 #3 Plow Bolts
Brand
Agmate
Hole Count
2
4" X 3/16" SHARP V DANISH
4 in. Sharp V Danish Sweep

SKU: #101399

4 in. Sharp V Danish sweep with a 32° aggressive angle and single-hole mounting design for cultivation and weed control applications.
Dimensions
Thickness
3/16 in.
Weight
2 lb
Width - Overall
4 in.
Specifications
Bolt Type
Elliptical Bolt
Brand
Agmate
Style
Sharp V Type

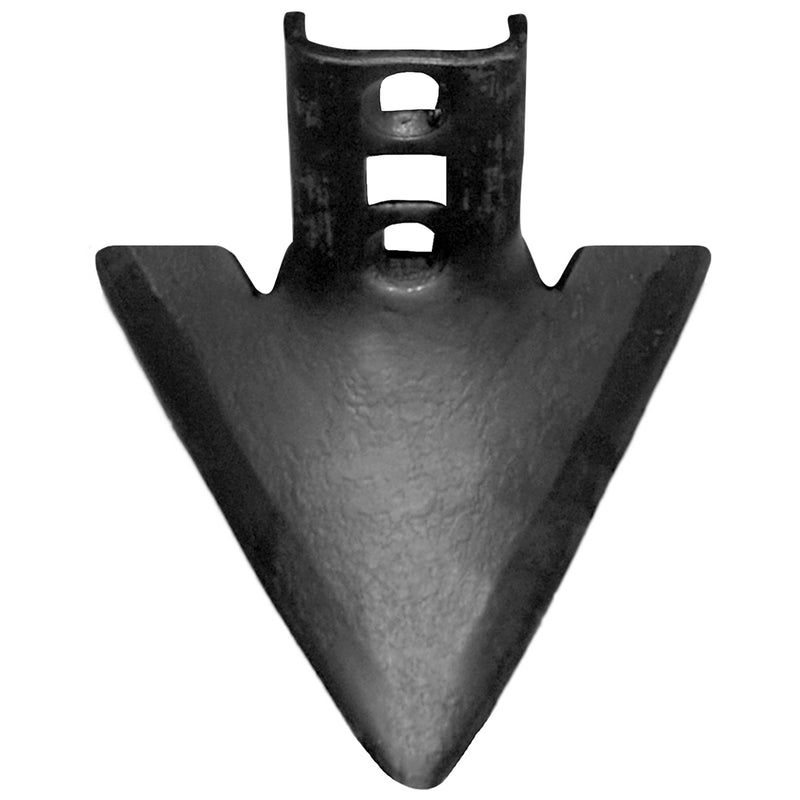

6" X 1/4" X 54 STEM - ROW CROP
6 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15341

6 in. x 1/4 in. row crop cultivator sweep with 2 in. bolt centers. Uses 7/16 in. #3 grade 5 plow bolts for secure shank mounting.
Dimensions
Bolt Size
7/16 in.
Center-to-Center
2 in.
Stem Angle
54°
Specifications
Bolt Grade
Grade 5 #3 Plow Bolts
Brand
Agmate
Hole Count
2
6" X 1/4" FIELD CULTIVATOR SWEEP
6 in. Field Cultivator Sweep

SKU: #15366

6 in. field cultivator sweep with a 47° stem angle, 1/4 in. thickness, and 1-3/4 in. bolt centers for field cultivator applications.
Dimensions
Bolt Center Spacing
1-3/4 in.
Bolt Pattern
(2) 7/16 in. Bolts
Bolt Size
7/16 in.
Specifications
Brand
Agmate
Type
Field Cultivator Sweep
4" X 1/4" X 47 o STEM - FIELD
4 in. x 1/4 in. Forged Steel Field Cultivator Sweep

SKU: #15515

4 in. x 1/4 in. forged steel field cultivator sweep. Requires two 7/16 in. grade 5 plow bolts on 1-3/4 in. center pattern.
Dimensions
Bolt Pattern
Bolt Center
Hole Size
7/16 in.
Hole Spacing
1-3/4 in.
Specifications
Brand
Agmate
Hole Count
2
Material
Forged Steel
4" X 1/4" X 54 o STEM - ROW CROP
4 in. x 1/4 in. Row Crop Cultivator Sweep

SKU: #15339

4 in. x 1/4 in. row crop cultivator sweep with 2 in. bolt centers. Uses 7/16 in. #3 grade 5 plow bolts for secure shank mounting.
Dimensions
Bolt Size
7/16 in.
Center-to-Center
2 in.
Thickness
1/4 in.
Specifications
Bolt Grade
Grade 5 #3 Plow Bolts
Brand
Agmate
Hole Count
2
7 X 5MM DANISH SWEEP 3/16"
7 in. Danish Sweep

SKU: #89992

7 in. Danish sweep with a 32° aggressive angle and single-hole mounting design for cultivation and weed control applications.
Dimensions
Bolt Size
3/8 in.
Thickness
3/16 in.
Weight
1.23 lb
Specifications
Bolt Type
Elliptical Bolt
Brand
Agmate
Mounting Type
Single Hole
4" X 3/16" GOOSEFOOT TYPE DANISH
4 in. Goosefoot Danish Sweep MD4A

SKU: #30448

The 4 in. goosefoot danish sweep (MD4A) is designed for secure mounting and reliable performance in cultivator and tillage applications.
Dimensions
Thickness
3/16 in.
Weight
1.14 lb
Width - Overall
9 in.
Specifications
Bevel
42°
Brand
Agmate
Hole Count
1

Showing 25/42
