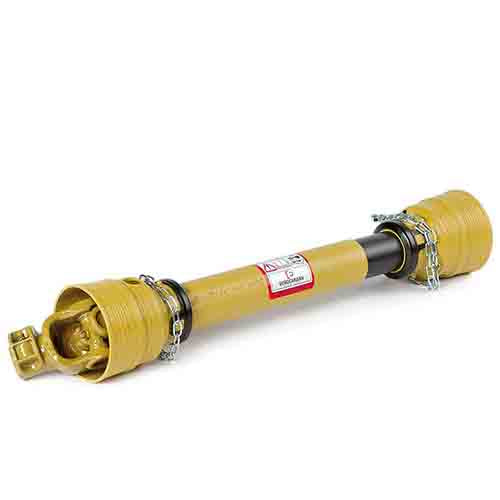

51-5/8 in. Series 4 PTO Assembly w/1-1/4 in. Smooth Yoke

Description

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power while supporting reliable driveline performance.

This PTO assembly features a 1-1/4 in. smooth implement yoke with set screw shaft lock and a 1-3/8 in. x 6-spline tractor yoke for compatible PTO applications. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed for post hole digger and similar PTO-driven equipment requiring reliable power transfer.

Dimension

Extended Length:

76 in.

Hole Size:

3/8 in.

Length - Overall:

51-5/8 in.

Weight:

30 lb.

Specification

Assembly Description:

AX45000-0183

Brand:

Eurocardan

Description:

1-1/4 in. Smooth Yoke with Set Screw Shaft Lock; 3/8 in. Shear Pin

Features:

Series 4 PTO assembly designed for post hole digger applications
1-1/4 in. smooth yoke with set screw shaft lock
1-3/8 in. x 6-spline tractor connection
3/8 in. shear pin design for driveline protection
Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM

Hole Type:

Shear Pin Hole

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Max. HP @ 1000 RPM:

74 HP

Max. HP @ 540 RPM:

47 HP

Series Size:

Type:

PTO Assembly

Used On:

Post Hole Digger

51-5/8 in. Series 4 PTO Assembly w/1-1/4 in. Smooth Yoke
