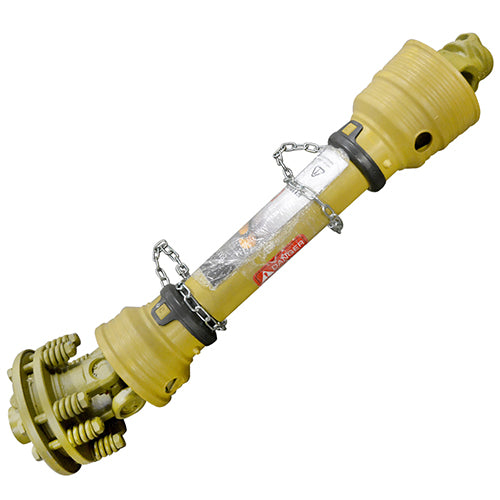

29 in. Series 4 PTO Assembly w/FDO Slip Clutch

Product Documents

40944_cat_002.pdf

Description

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features an FDO slip clutch and 1-3/8 in. x 6-spline connections for implement and tractor compatibility. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.

Dimension

Extended Length:

37-5/8 in.

Length - Overall:

29 in.

Weight:

35.2 lb

Specification

Assembly Description:

AX4500A-FD0

Brand:

Eurocardan

Description:

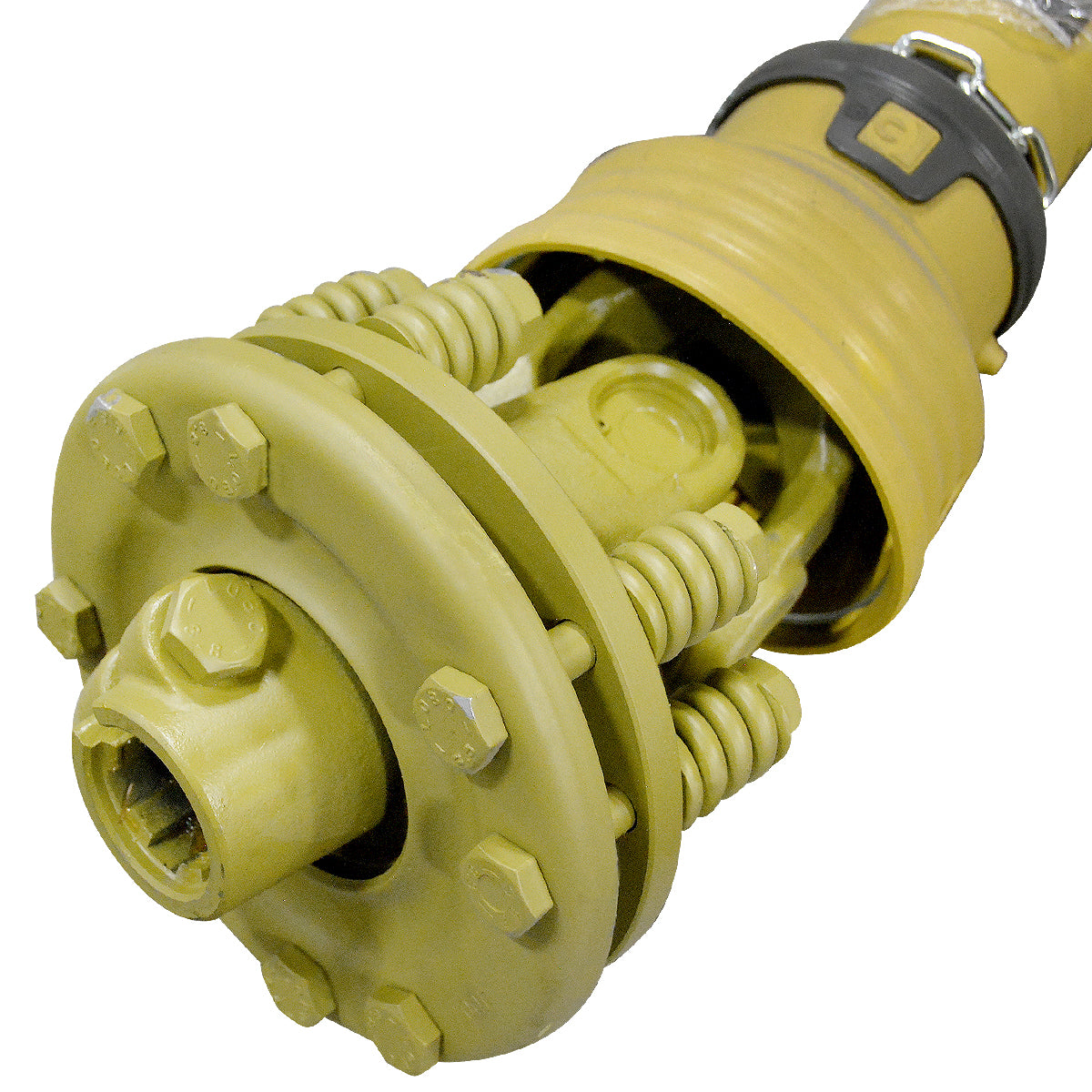

FDO Slip Clutch - 1-3/8 in. x 6 Spline

Features:

Series 4 PTO assembly with FDO slip clutch protection
1-3/8 in. x 6-spline driveline connections for compatible PTO equipment
Slip clutch helps protect driveline components from shock loads
Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM
Designed for small tiller and rotary tiller applications

HP at 1000 RPM:

35 HP

HP at 540 RPM:

35 HP

Series Size:

Type:

PTO Assembly

Used On:

Small Tillers
