Rotary Mower Parts

Product	Dimension	Specification

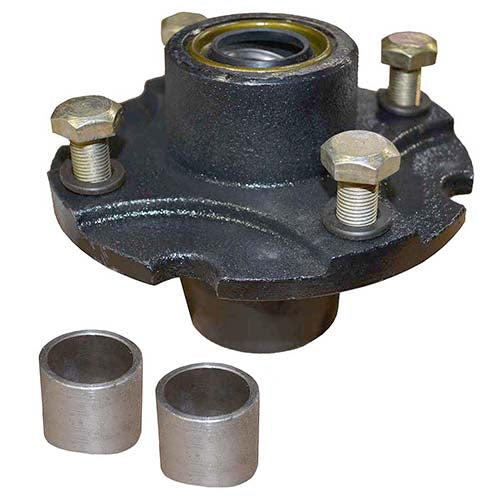

1 in. Axle 4-Bolt Cast Iron Tailwheel Hub Kit SKU: #121421A 1 in. axle cast iron tailwheel hub kit with bearings, races, spacers, seals, and lug bolts. 4-bolt mounting with 5 in. bolt circle.	Dimensions Bolt Circle Diameter 5 in. Center Hole 3-5/8 in. Hole Size 1/2 in.	Specifications Axle 1 in. Description Cast Tailwheel Hub Hole Count 4

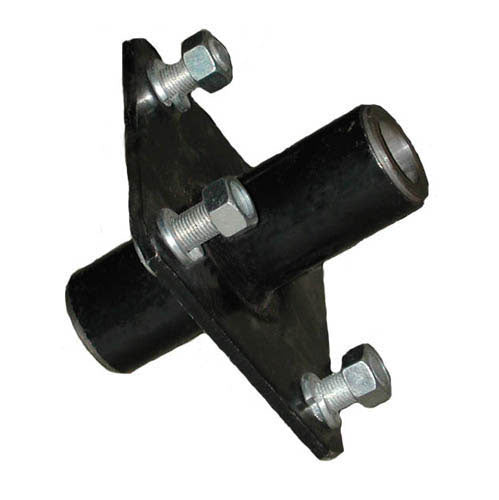

1 in. Axle 4-Bolt Fabricated Hub with Bushings SKU: #49324 1 in. axle fabricated hub with friction bushings, 4-bolt mounting with 5 in. bolt pattern, ready to install with included bushings.	Dimensions Bolt Pattern 5 in. Hole Size 1/2 in. Weight 3.5 lb	Specifications Axle 1 in. Brand Grizzly Description Fabricated Hub with Oilite Bushing

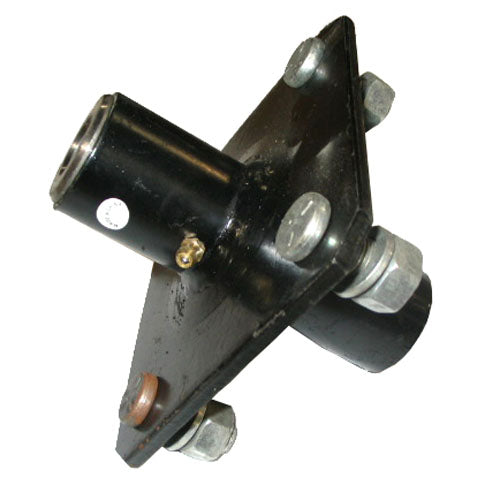

3/4 in. Axle 4-Bolt Fabricated Steel Tailwheel Hub SKU: #49642 3/4 in. axle fabricated steel tailwheel hub with bushings, 4-bolt mounting with 5 in. bolt pattern, includes grease zerk for easy lubrication.	Dimensions Bolt Pattern 5 in. Hole Size 1/2 in. Weight 3.5 lb	Specifications Axle 3/4 in. Brand Grizzly Description Fabricated Hub with Oilite Bushings

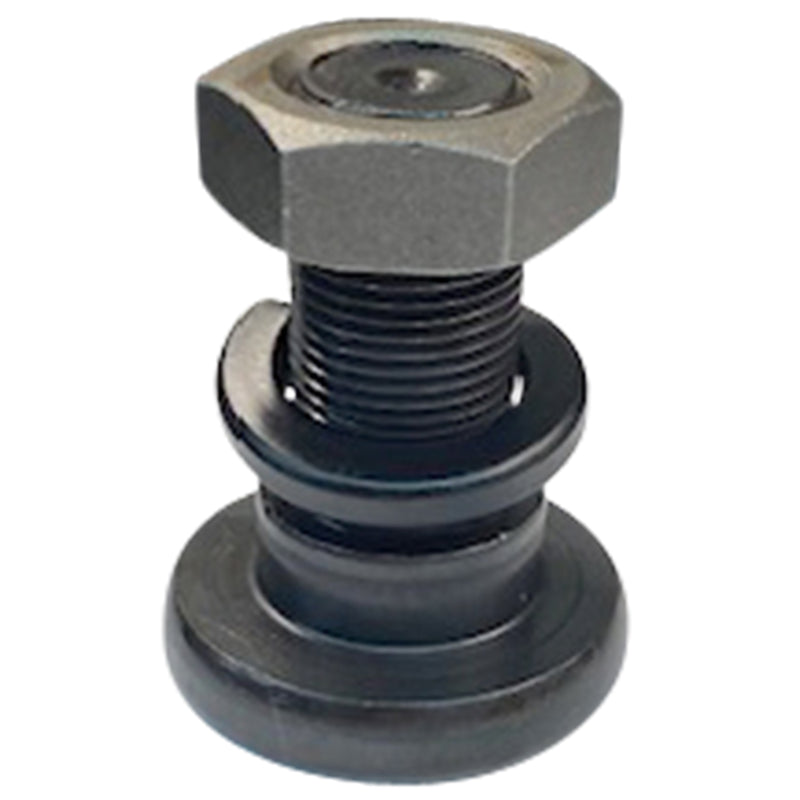

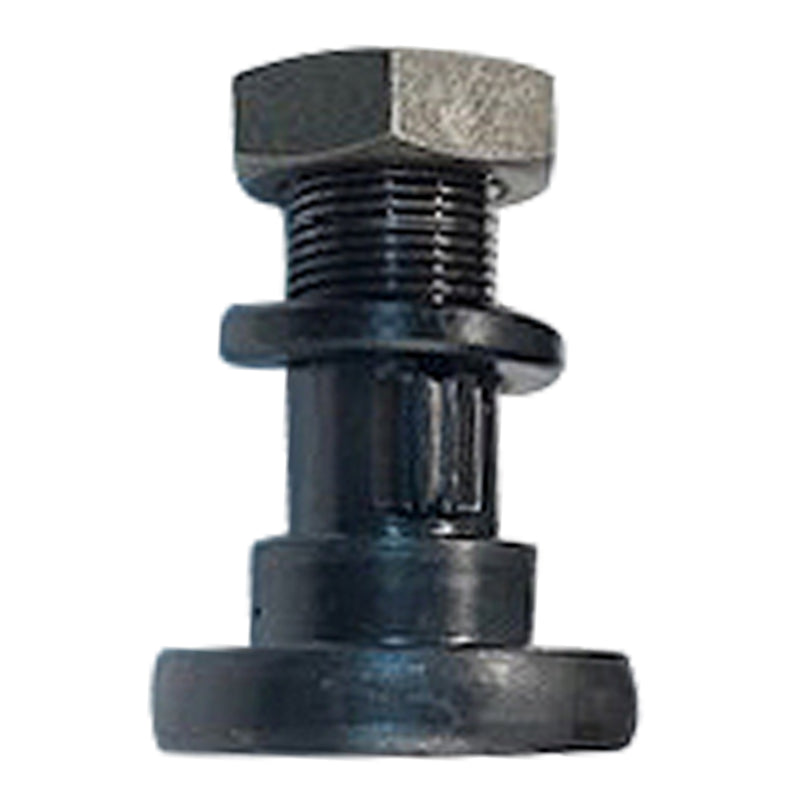

1-1/8 in. x 2-1/2 in. Keyway Rotary Cutter Blade Bolt Kit SKU: #49327A This BB-55K blade bolt with washer and nut has an overall length of 2-1/2 inches with threads of 1-1/8 inch and has a diameter of 1/2 inch. This is a complete blade bolt kit that comes with lock bolt, washer, and nut. This replaces Kodiak 124 SMH and others.	Dimensions Diameter - Bolt 1-1/8 in. Diameter - Overall 2-1/2 in. Diameter - Shoulder 1-1/2 in.	Specifications Bore Shape Round Shoulder Included Yes Style Keyway Fits 1-1/2 in.

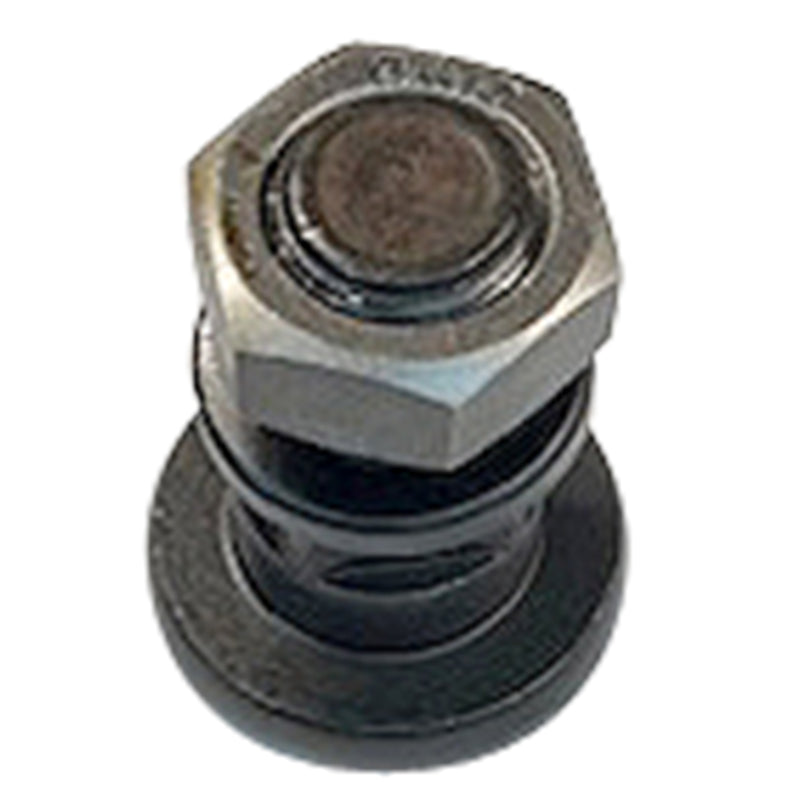

1-1/8 in. x 3-1/8 in. Square Shoulder Rotary Cutter Blade Bolt Kit SKU: #49330A 1-1/8 in. x 3-1/8 in. square shoulder rotary cutter blade bolt kit with bolt, nut, and lock washer, right hand thread, fits Howse and Grizzly mowers.	Dimensions Diameter - Bolt 1-1/8 in. Diameter - Overall 2-3/8 in. Diameter - Shoulder 1-1/2 in.	Specifications Finish Black Oxide Style Square Shoulder Thread 1-1/8 in. - 12 UNF, Right Hand

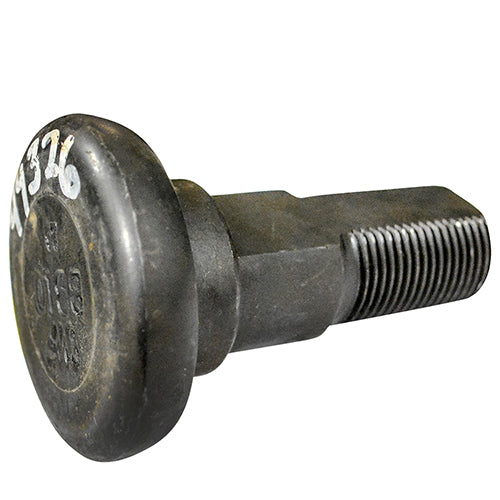

1-1/8 in. x 3-3/16 in. Flat Side Rotary Cutter Blade Bolt Kit SKU: #49326 1-1/8 in. x 3-3/16 in. flat side rotary cutter blade bolt kit with bolt, nut, and lock washer, right hand thread, fits Sidewinder and Ambusher mowers.	Dimensions Diameter - Bolt 1-1/8 in. Diameter - Overall 1-1/2 in. Diameter - Shoulder 1-1/2 in.	Specifications Style Flat Side Shank Thread 1-1/8 in. - 12 UNF Thread Direction Right Hand
1-1/8 in. x 3-1/8 in. Square Shoulder Rotary Cutter Blade Bolt Kit for Stump Jumper SKU: #49330 1-1/8 in. x 3-1/8 in. square shoulder rotary cutter blade bolt kit with bolt, nut, and lock washer, right hand thread, fits Howse and Grizzly mowers.	Dimensions Diameter - Bolt 1-1/8 in. Diameter - Overall 2-3/8 in. Diameter - Shoulder 1-1/2 in.	Specifications Origin USA Style Square Shoulder Thread 1-1/8 in. - 12 UNF, Right Hand
1-1/8 in. x 3 in. Keyway Rotary Cutter Blade Bolt Kit SKU: #10539A 1-1/8 in. x 3 in. keyway rotary cutter blade bolt kit with bolt, nut, and lock washer, right hand thread, fits 1-1/2 in. round bore in mower.	Dimensions Diameter - Bolt 1-1/8 in. Diameter - Shoulder 1 1/2 in. Head Diameter 2 1/2 in.	Specifications Bore Shape Round Finish Black Oxide Shoulder Included Yes

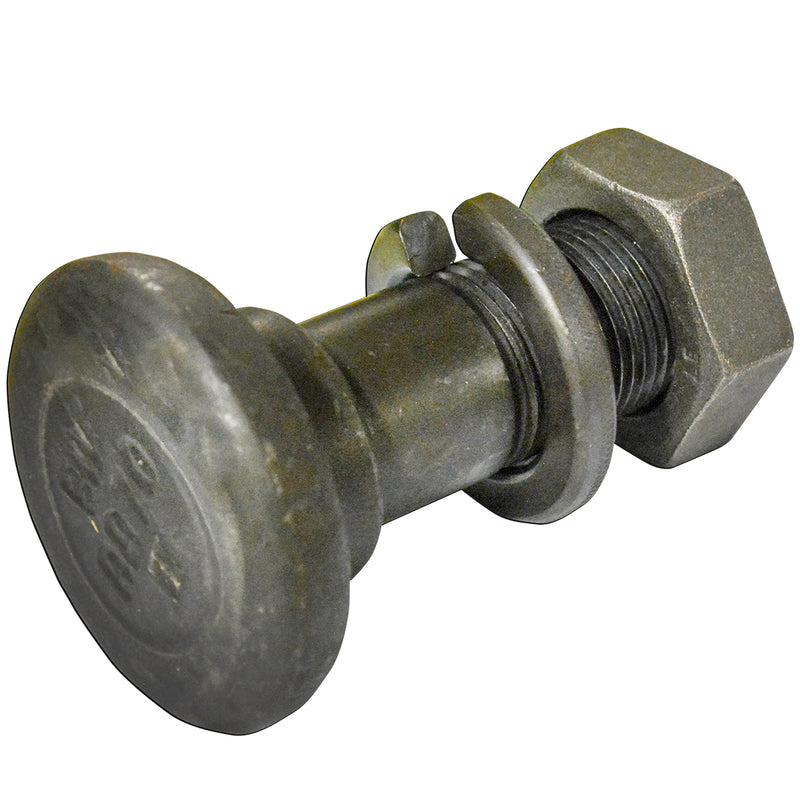

1-1/8 in. x 3 in. Rotary Cutter Blade Bolt Kit SKU: #10539 1-1/8 in. x 3 in. rotary cutter blade bolt kit with bolt, nut, and lock washer, right hand thread, fits 1-1/2 in. round bore in mower.	Dimensions Diameter - Bolt 1-1/8 in. Diameter - Overall 2-1/2 in. Diameter - Shoulder 1-1/2 in.	Specifications Bore Shape Round Shoulder Included Yes Style Keyway Fits 1-1/2 in.

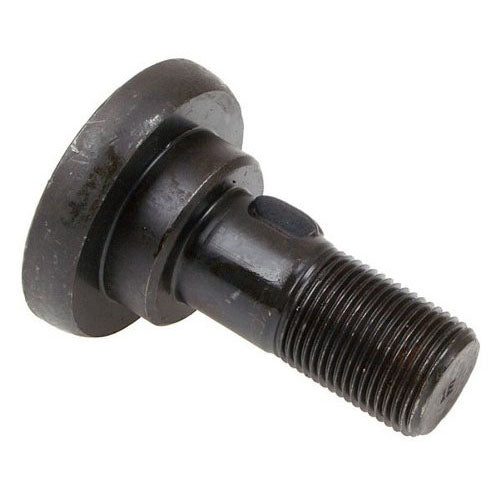

1-1/8 in. x 3-1/4 in. Blade Bolt for Rotary Mowers SKU: #28499 1-1/8 in. x 3-1/4 in. blade bolt for rotary mowers, right hand thread, 12 threads per inch, fits multiple mower brands.	Dimensions Diameter - Bolt 1-1/8 in. Head Height 1/2 in. Length - Overall 3-1/4 in.	Specifications Thread Right Hand, 12 TPI Type Blade Bolt
1/4 in. 10-Link Safety Chain SKU: #124179 1/4 in. diameter 10-link chain designed for rotary mower and agricultural equipment applications.	Dimensions Diameter - Overall 1/4 in. Length - Overall 10 Links Weight 0.62 lb	Specifications Type Chain

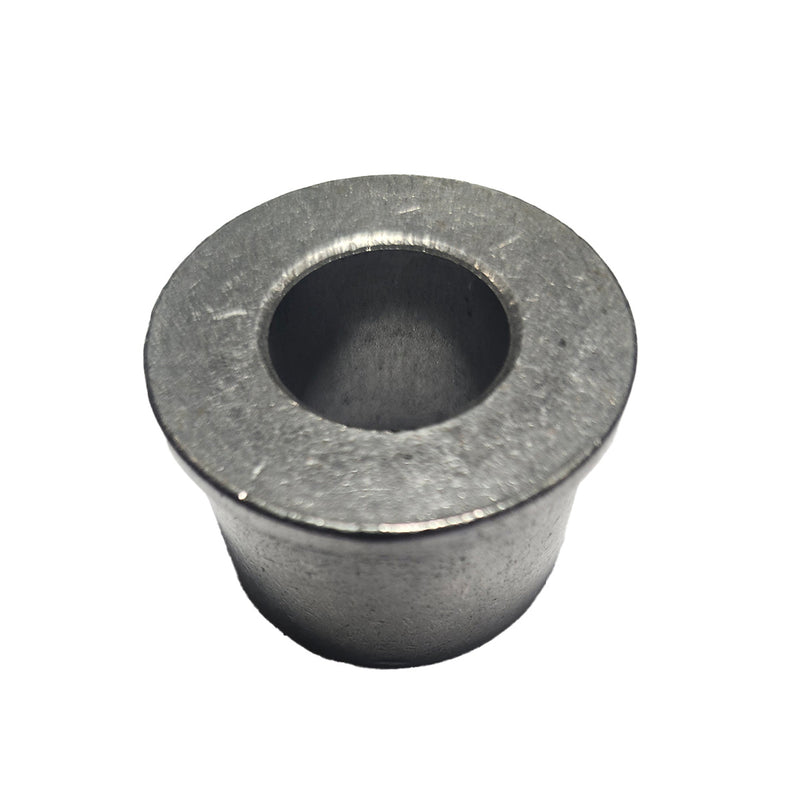

3/4 in. ID Friction Bushing for Rotary Mower Tailwheel Hub SKU: #49644 3/4 in. ID flanged friction bushing for rotary mower tailwheel hubs, designed for smooth and reliable tailwheel rotation.	Dimensions Diameter - Flange 1-9/16 in. Diameter - Inner 3/4 in. Diameter - Outer 1-3/8 in.	Specifications Brand Grizzly Description Replacement 3/4 in. Oilite Bushing Type Friction Bushing
1/4 in. 7-Link Galvanized Chain SKU: #118785 1/4 in. galvanized 7-link chain designed for rotary mower and agricultural equipment applications.	Dimensions Diameter - Overall 1/4 in. Link Length 1-3/4 in. Weight 0.43 lb	Specifications Finish Galvanized Number of Links 7 Type Chain
1/4 in. 6-Link Galvanized Chain SKU: #118784 1/4 in. galvanized 6-link chain designed for rotary mower and agricultural equipment applications.	Dimensions Chain Diameter 1/4 in. Link Length 1-3/4 in. Weight 0.37 lb	Specifications Finish Galvanized Number of Links 6 Type Chain
1/4 in. Galvanized 5-Link Chain for Rotary Mower Chain Guards SKU: #111338 1/4 in. galvanized 5-link chain for rotary mower chain guards, designed for use as replacement links or for building new chain guards.	Dimensions Chain Size 1/4 in. Length - Overall 1-3/4 in. Weight 0.31 lb	Specifications Finish Galvanized Number of Pieces 5 Links Type Chain Guard

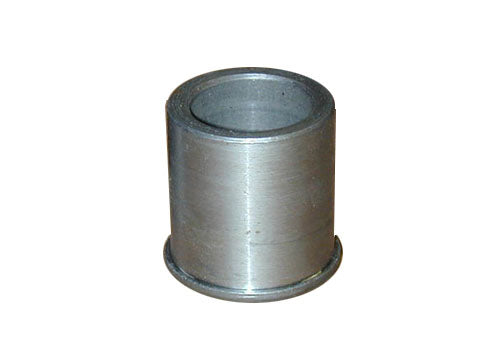

1 in. ID Friction Bushing for Rotary Mower Tailwheel Hub SKU: #49643 1 in. ID flanged friction bushing for rotary mower tailwheel hubs, designed for smooth and reliable tailwheel rotation.	Dimensions Diameter - Flange 1-9/16 in. Diameter - Inner 1 in. Diameter - Outer 1-3/8 in.	Specifications Brand Grizzly Description Replacement 1 in. Oilite Bushing Type Friction Bushing
1/4 in. Galvanized 4-Link Chain for Rotary Mower Chain Guards SKU: #111337 1/4 in. galvanized 4-link chain for rotary mower chain guards, designed for use as replacement links or for building new chain guards.	Dimensions Chain Size 1/4 in. Link Length 1-3/4 in. Weight 0.25 lb	Specifications Finish Galvanized Number of Pieces 4 Links Type Chain Guard
1-1/8 in. UNF Jam Nut SKU: #121582 1-1/8 in. UNF jam nut designed for rotary mower blade and spindle applications.	Dimensions Weight 0.24 lb	Specifications Thread 1-1/8 in.12 UNF Type Nut
1-1/8 in. Spring Lock Washer SKU: #121583 1-1/8 in. spring lock washer designed for rotary mower and agricultural equipment fastening applications.	Dimensions Size 1-1/8 in. Weight 0.11 lb	Specifications Type Washer

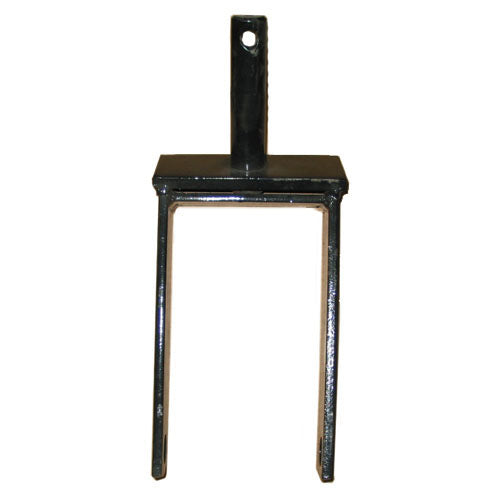

1-1/4 in. Shank Wheel Fork WF-2 SKU: #63740 Replacement tail wheel fork designed for rotary mower and rotary cutter tail wheel assemblies.	Dimensions Diameter - Shank 1-1/4 in. Hole Size 3/4 in. Weight 11.5 lb	Specifications Axle 3/4 in. Brand Grizzly Fork Internal Width 5-1/2 in.

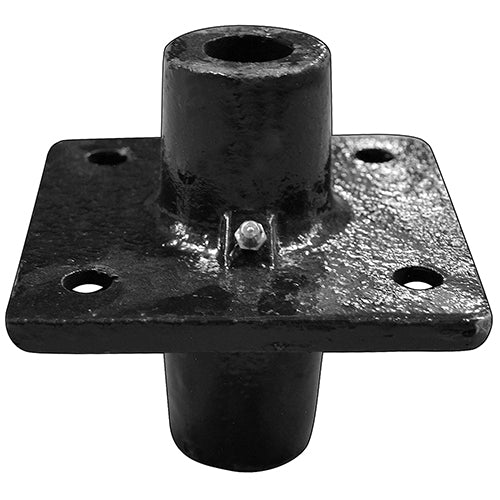

Tail Wheel Cast Hub for Rotary Mower SKU: #36601A Cast iron tail wheel hub designed for rotary mower and rotary cutter tail wheel assemblies.	Dimensions Bolt Pattern 5 in. Length - Overall 5-1/4 in. Weight 6.5 lb.	Specifications Bolt Count 4 Mounting Hole 1/2 in.

Axle	1 in.
Description	Cast Tailwheel Hub
Hole Count	4
Included Products	17931, 17933, 25678
Material	C-30 Gray Iron (Cast Iron)
Style	Tailwheel Hub
Type	Hub Kit

Bolt Circle Diameter	5 in.
Center Hole	3-5/8 in.
Hole Size	1/2 in.
Weight	7.5 lb
Width - Overall	4-1/2 in.

Axle	1 in.
Brand	Grizzly
Description	Fabricated Hub with Oilite Bushing
Hole Count	4
Included Products	49643
Material	Fabricated Steel
Style	Tailwheel Hub
Type	Hub

Bolt Pattern	5 in.
Hole Size	1/2 in.
Weight	3.5 lb
Width - Overall	4-7/8 in.

Axle	3/4 in.
Brand	Grizzly
Description	Fabricated Hub with Oilite Bushings
Hole Count	4
Lubrication	Grease Zerk
Material	Fabricated Steel
Style	Tailwheel Hub
Type	Hub

Bore Shape	Round
Shoulder Included	Yes
Style	Keyway Fits 1-1/2 in.
Thread	1-1/8 in. - 12 UNF
Thread Direction	Right Hand
Type	Blade Bolt Kit

Diameter - Bolt	1-1/8 in.
Diameter - Overall	2-1/2 in.
Diameter - Shoulder	1-1/2 in.
Length - Overall	3 in.
Length - Usable	2-1/2 in.
Thickness	1/2 in.
Weight	3 lb

Finish	Black Oxide
Style	Square Shoulder
Thread	1-1/8 in. - 12 UNF, Right Hand
Type	Blade Bolt Kit

Style	Flat Side Shank
Thread	1-1/8 in. - 12 UNF
Thread Direction	Right Hand
Type	Blade Bolt Kit

Origin	USA
Style	Square Shoulder
Thread	1-1/8 in. - 12 UNF, Right Hand
Type	Blade Bolt Kit

Diameter - Bolt	1-1/8 in.
Head Height	1/2 in.
Length - Overall	3-1/4 in.
Weight	1.58 lb

Diameter - Overall	1/4 in.
Length - Overall	10 Links
Weight	0.62 lb

Diameter - Flange	1-9/16 in.
Diameter - Inner	3/4 in.
Diameter - Outer	1-3/8 in.
Thickness	1/8 in.
Weight	0.5 lb
