1-1/8 in. x 3-3/16 in. Flat Side Rotary Cutter Blade Bolt Kit

Product Documents

49326_bro_001.pdf

Description

Keep your rotary cutter ready for the field with this complete flat side blade bolt kit. Designed as a direct replacement for worn or damaged hardware, this kit ensures secure and reliable blade retention during demanding mowing operations.

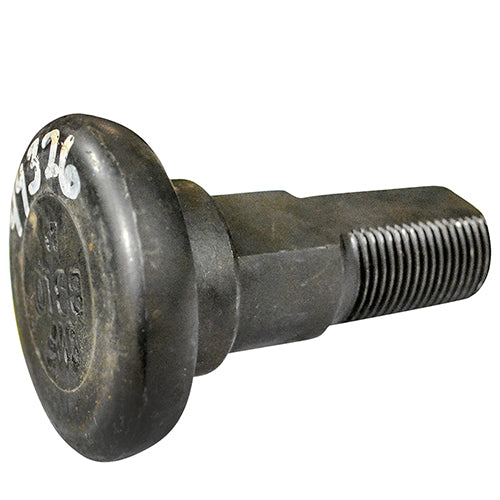

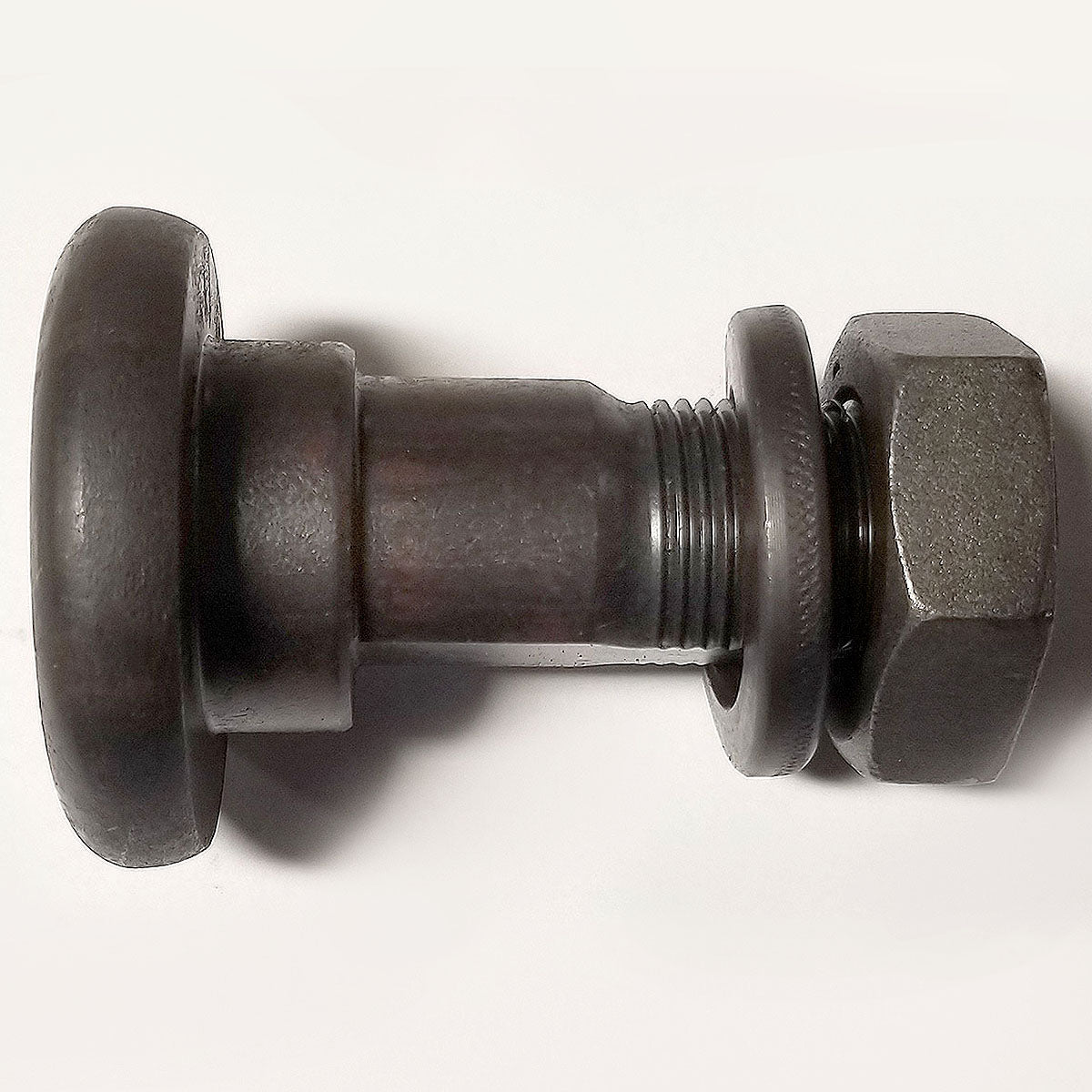

The kit includes 1 bolt, 1 nut, and 1 lock washer with a flat-sided shank for proper blade orientation. Built with 1-1/8 in. - 12 UNF right hand thread for standard assembly. Designed for older Hardee mowers that require a 1-1/8 in. diameter bolt. Manufacturer Part Number: BB-10K.

Fits Brands & Models:

Designed as a replacement to fit Ambusher, Gilcrest (Sidewinder), and Orange Service. Fits Sidewinder models GB602, 607, 722, 725, 842, RS160, RS213, Flexwing 16, and 216.

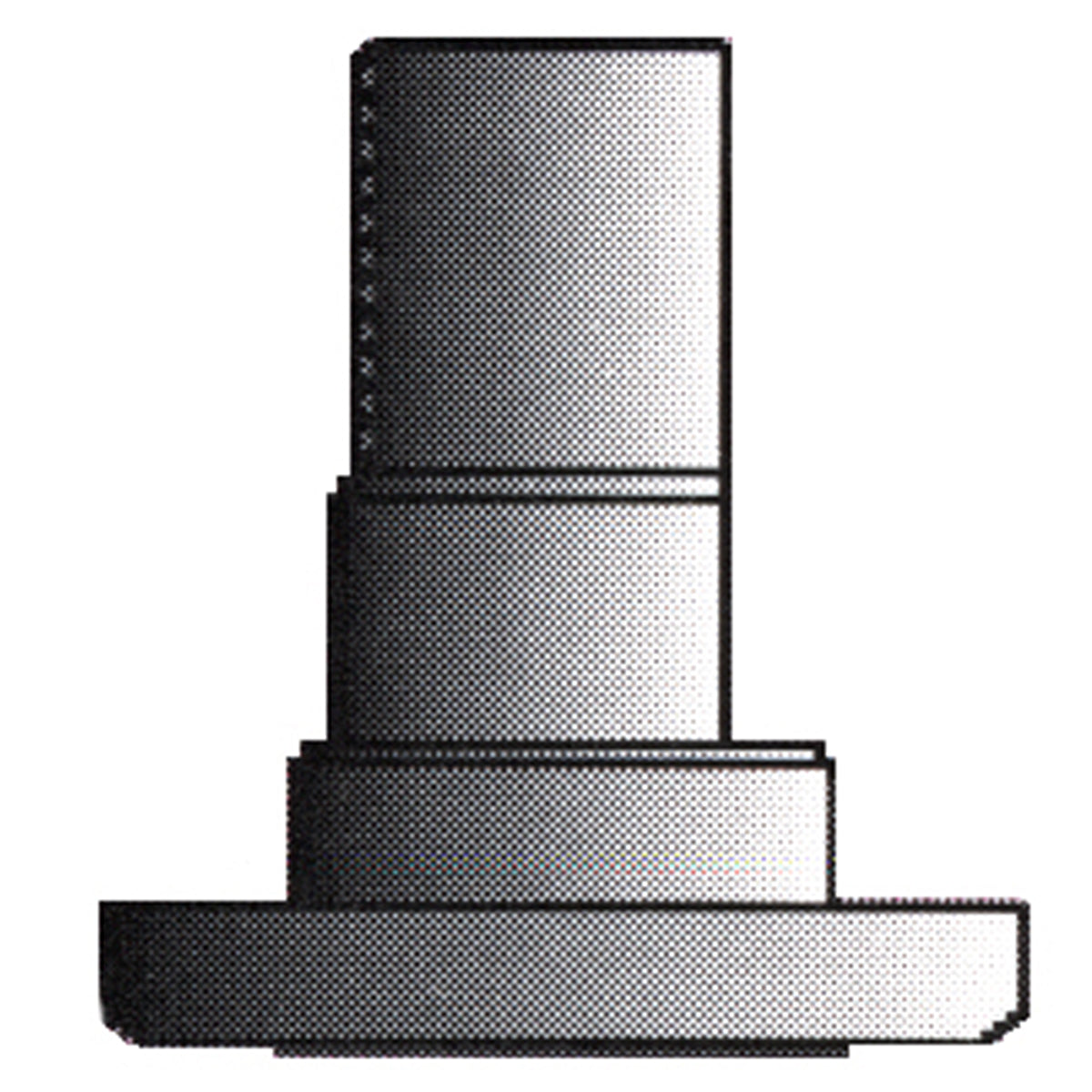

Dimension

Diameter - Bolt:

1-1/8 in.

Diameter - Overall:

1-1/2 in.

Diameter - Shoulder:

1-1/2 in.

Head Diameter:

2-1/2 in.

Length - Overall:

3-11/16 in.

Length - Usable:

3-3/16 in.

Weight:

2.5 lb

Specification

Features:

Complete kit with bolt, nut, and lock washer for ready installation
Flat-sided shank design for proper blade orientation
1-1/8 in. - 12 UNF right hand thread for standard assembly
Fits Sidewinder, Ambusher, Gilcrest, and Orange Service mowers
Direct replacement for worn or damaged blade bolt hardware

Style:

Flat Side Shank

Thread:

1-1/8 in. - 12 UNF

Thread Direction:

Right Hand

To Fit:

15060-01, BB-10, BB-10K

Fits OEM Numbers:

Ambusher: 15060-01
Sidewinder: 15060-01
Other Cross-References: BB-10, BB-10K

Type:

Blade Bolt Kit
