1-1/8 in. x 3-1/8 in. Square Shoulder Rotary Cutter Blade Bolt Kit for

Product Documents

49330_bro_001.pdf

Description

Keep your rotary cutter ready for the field with this complete square shoulder blade bolt kit. Designed as a direct replacement for worn or damaged hardware, this kit ensures secure and reliable blade retention during demanding mowing operations.

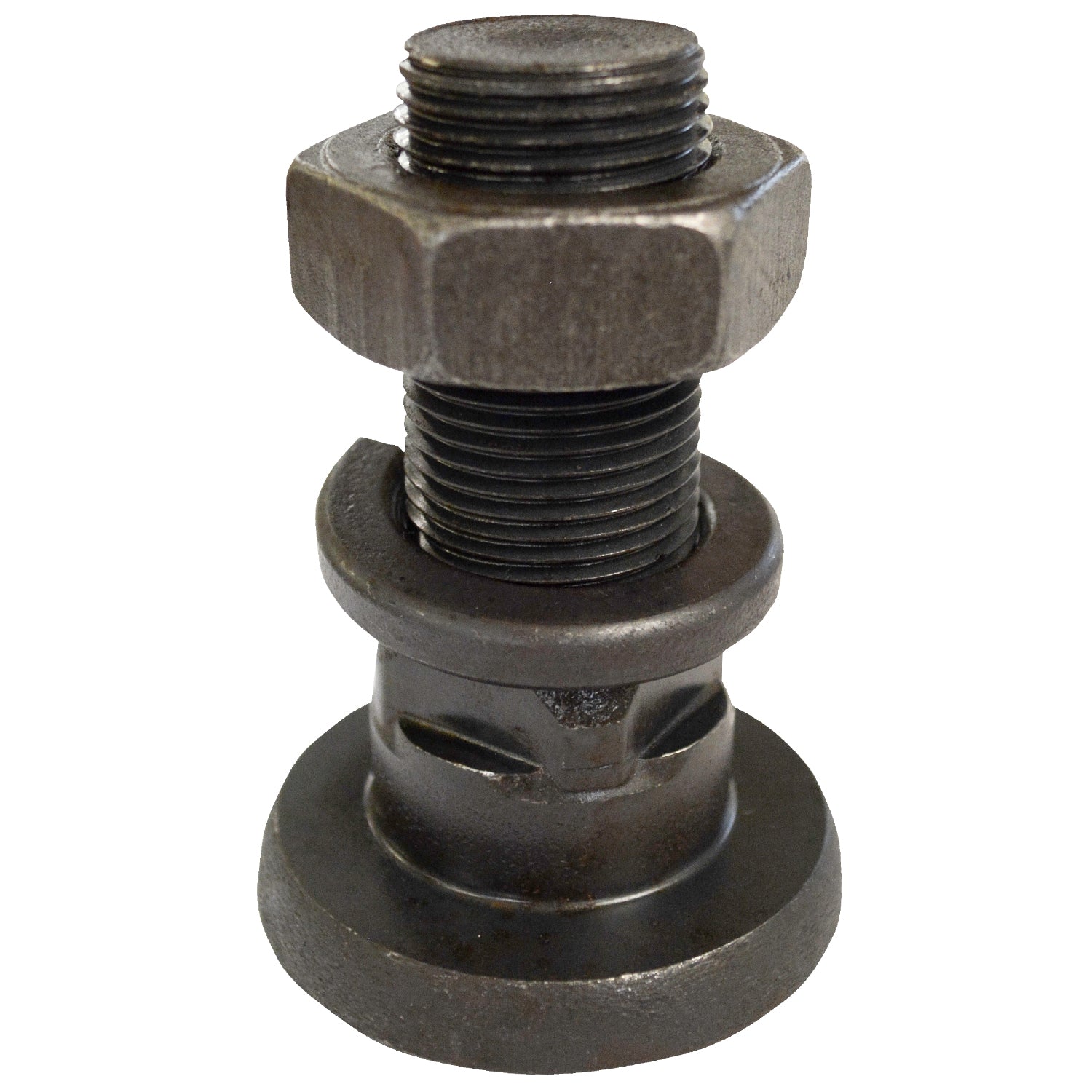

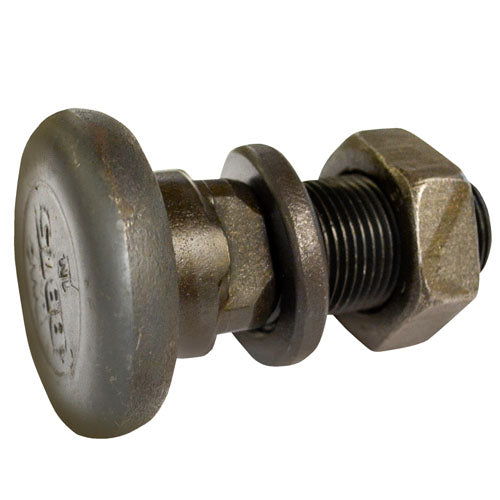

The kit includes 1 bolt, 1 nut, and 1 lock washer with a square shoulder design for proper blade bore engagement. Built with 1-1/8 in. - 12 UNF right hand thread for standard assembly. A dependable replacement that fits a wide range of rotary cutter brands. Manufacturer Part Number: BB-75K.

Fits Brands:

Designed as a replacement to fit Howse, Grizzly, Titan 1505, and HICO New Style with Square Shoulder. Also fits the blade carrier of compatible stump jumper assemblies.

Dimension

Diameter - Bolt:

1-1/8 in.

Diameter - Overall:

2-3/8 in.

Diameter - Shoulder:

1-1/2 in.

Length - Overall:

3-3/4 in.

Length - Usable:

3-1/8 in. (including shoulder)

Thickness:

1/2 in.

Weight:

2 lb

Specification

Features:

Complete kit with bolt, nut, and lock washer for ready installation
Square shoulder design for proper blade bore engagement
1-1/8 in. - 12 UNF right hand thread for standard assembly
Fits Howse, Grizzly, Titan, and HICO New Style rotary cutters
Direct replacement for worn or damaged blade bolt hardware

Origin:

USA

Style:

Square Shoulder

Thread:

1-1/8 in. - 12 UNF, Right Hand

To Fit:

110012, HL418N, BB75, BB-75K, FIS75

Fits OEM Numbers:

Grizzly: 110012
Howse: HL418N
Titan: 110012
Other Cross-References: BB75, BB-75K, FIS75, HL418N

Type:

Blade Bolt Kit
