1-1/8 in. x 2-1/2 in. Keyway Rotary Cutter Blade Bolt Kit

Description

Keep your rotary cutter ready for the field with this complete keyway blade bolt kit. Designed as a direct replacement for worn or damaged hardware, this kit ensures secure and reliable blade retention during demanding mowing operations.

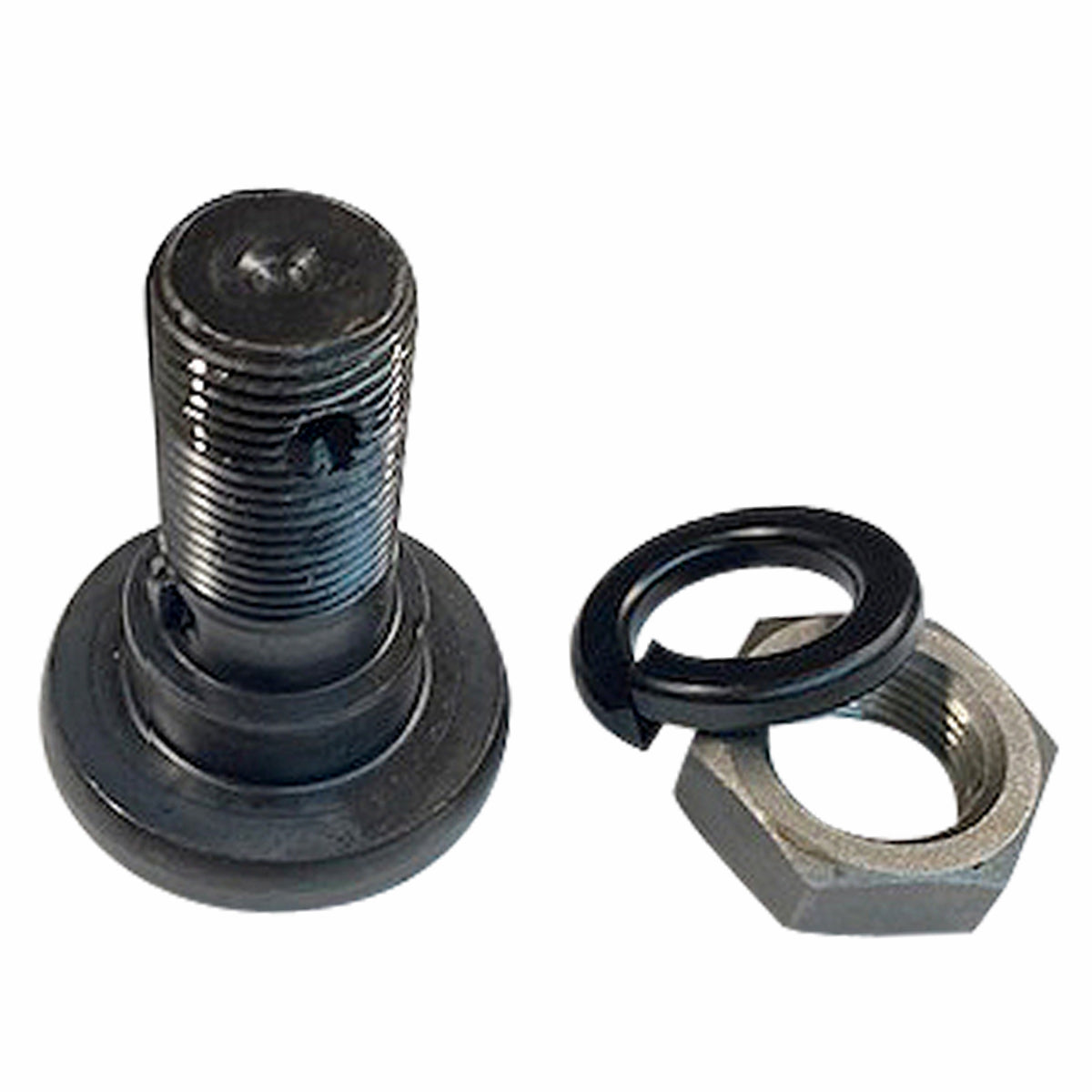

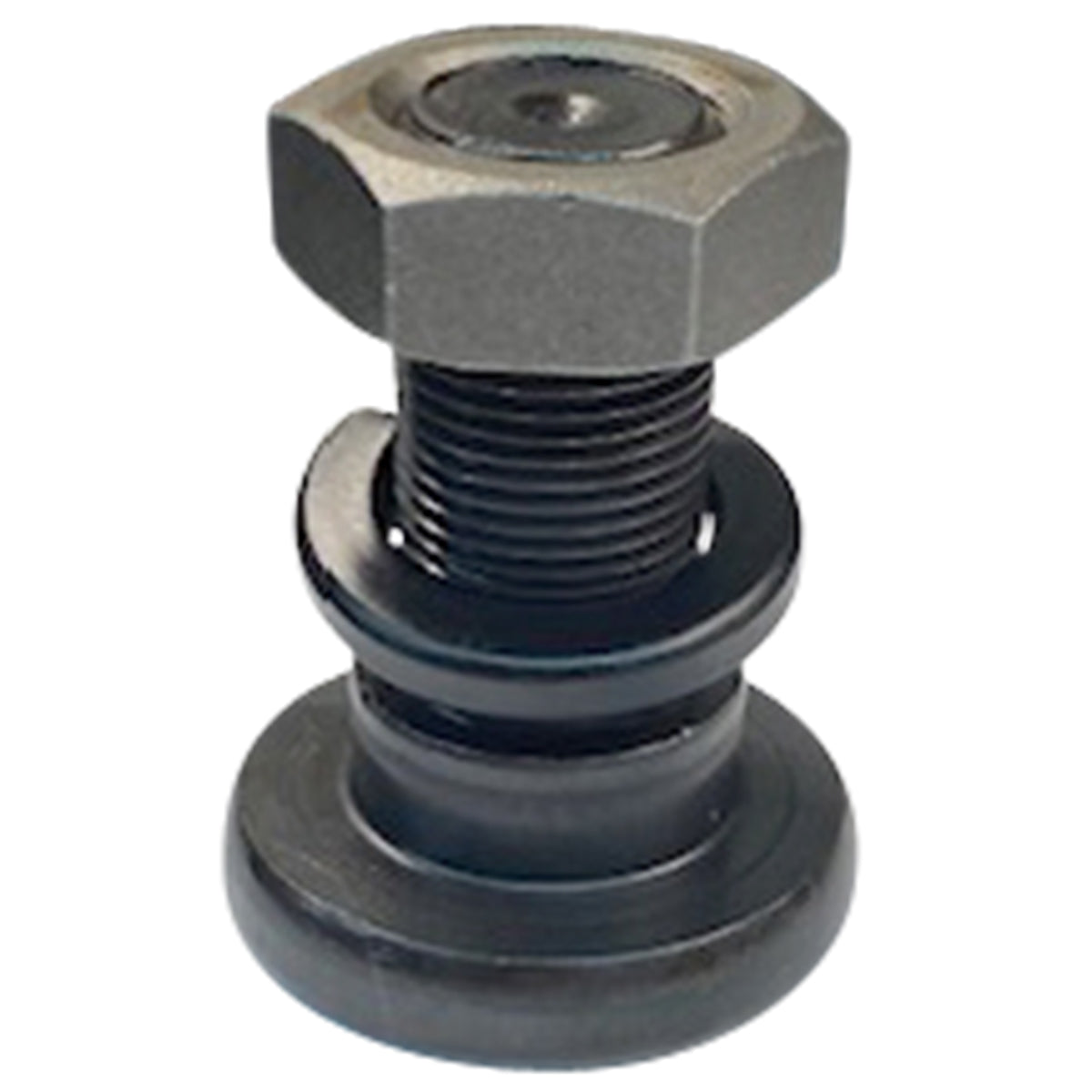

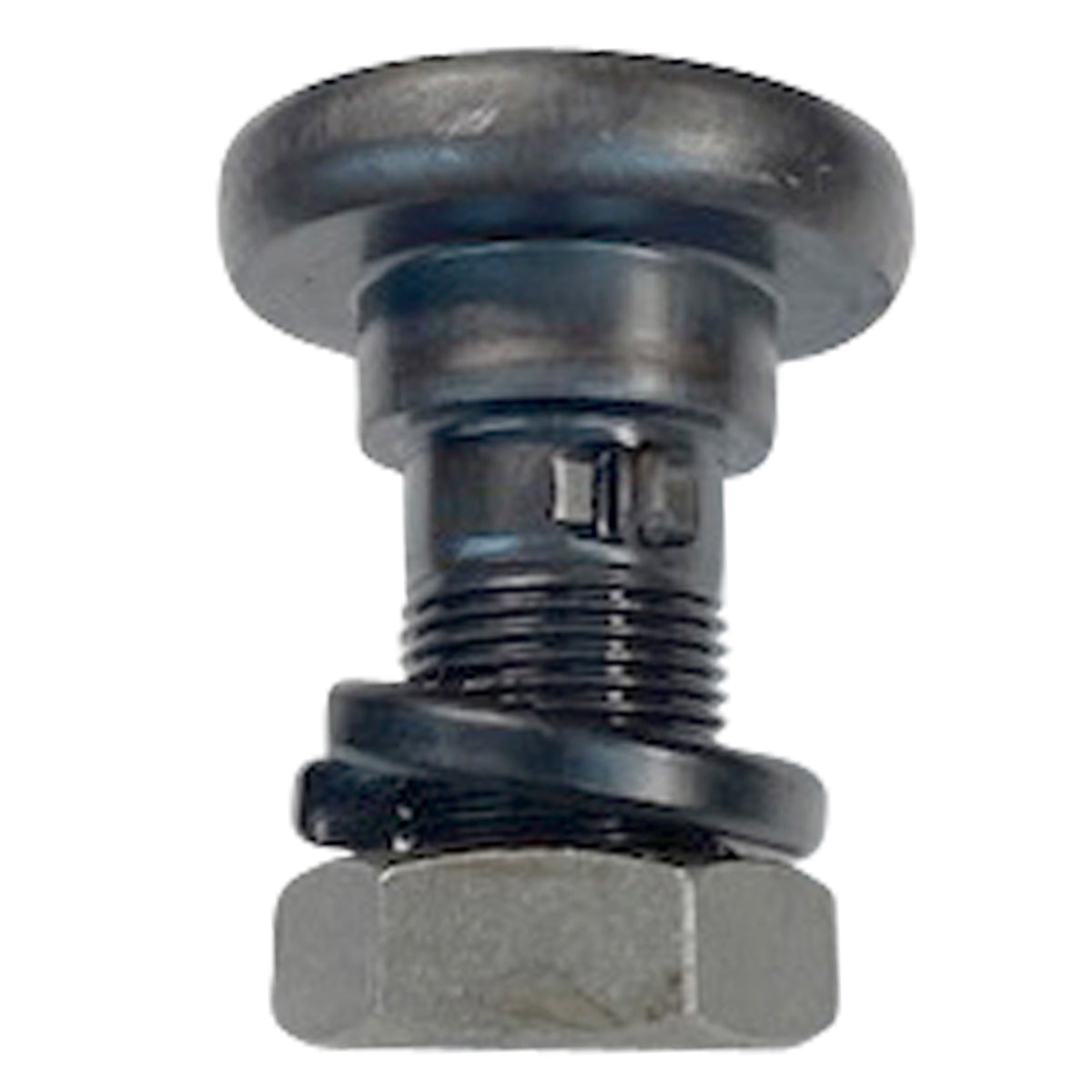

The kit includes 1 bolt, 1 nut, and 1 lock washer with a keyway that fits a 1-1/2 in. round bore in the mower. Built with 1-1/8 in. - 12 UNF right hand thread for standard assembly. A versatile replacement that fits a wide range of rotary cutter brands. Manufacturer Part Number: BB-55K.

Does NOT fit ASC #10498 Blade.

Fits Brands:

Designed as a replacement to fit Bad Boy, Big Bee, Burroughs, County Line, Dale Phillips, Forage King, Fred Cain, Fresno Mfg., Grizzly, International, J-Bar, King Kutter, Kodiak, L&S Line, Lowery, M&K Martin, Rollins, Samson, Southern, Taylor Pittsburg, Tebben, Tractor Supply, Wallace, and Worksaver.

Dimension

Diameter - Bolt:

1-1/8 in.

Diameter - Overall:

2-1/2 in.

Diameter - Shoulder:

1-1/2 in.

Length - Overall:

3 in.

Length - Usable:

2-1/2 in.

Thickness:

1/2 in.

Weight:

3 lb

Specification

Bore Shape:

Round

Features:

omplete kit with bolt, nut, and lock washer for ready installation
Keyway design fits 1-1/2 in. round bore in mower for secure mounting
1-1/8 in. - 12 UNF right hand thread for standard assembly
Fits a wide range of rotary cutter brands and models
Direct replacement for worn or damaged blade bolt hardware

Shoulder Included:

Yes

Style:

Keyway Fits 1-1/2 in.

Thread:

1-1/8 in. - 12 UNF

Thread Direction:

Right Hand

To Fit:

BH-250, 124-SMHD, BB5, BB-55K, 123-RMH, 101056, 2294, CL053, 57188

Fits OEM Numbers:

Fred Cain: BH-250
Kodiak: 124-SMHD
L&S Line: BB5
Southern: 123-RMH
County Line / Tractor Supply: CL053
Woods: 57188
Other Cross-References: BB-55K, 101056, 2294

Type:

Blade Bolt Kit

1-1/8 in. x 2-1/2 in. Keyway Rotary Cutter Blade Bolt Kit
