Restore proper top link performance with this Category 2 Top Link Ball Socket. Designed for tractor linkage and three-point hitch applications, this weld-on ball socket provides a durable connection point for top link assemblies and linkage repairs.
Manufactured in a standard-duty design with a black oxide finish, this ball socket features a 1 in. pin hole, 1-1/4 in. bore length, 7/8 in. sleeve width, and 2-3/8 in. sleeve outside diameter for dependable service in agricultural applications.
Maintain proper implement positioning with this Category 1 Top Link Assembly for three-point hitch applications. The adjustable design allows implement angle and operating position to be modified for improved field performance and equipment control.
This top link assembly features an 11.25 in. adjustment tube, 1-1/8 in. threads, a 15.5 in. closed length, and a maximum open length of 24 in. Constructed for dependable performance in demanding agricultural applications.

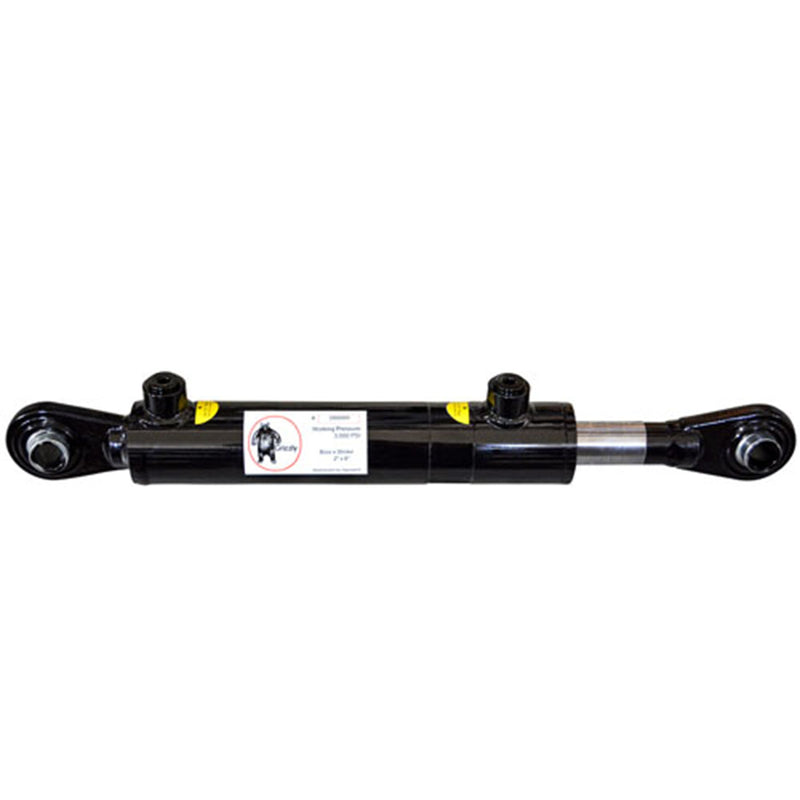

Upgrade your 3-point hitch with hydraulic adjustment using this durable CAT 1 hydraulic top link cylinder. Designed for reliable and precise implement angle control in demanding tractor operations.
Built for heavy duty use with a chrome plated rod for corrosion resistance and long lasting service life. Features a 2 in. bore and 8 in. stroke design with 3,000 PSI working pressure for reliable operation. Delivers 9,425 lb push force and 6,443 lb pull force, ideal for tractors in the 25 to 55 HP range. Adjustable from 20 in. retracted to 28 in. extended for versatile implement positioning. Manufacturer Part Number: W30200810TLDDI.
Upgrade your 3-point hitch with hydraulic adjustment using this durable CAT 2 hydraulic top link cylinder. Designed for reliable and precise implement angle control in demanding tractor operations.
Built for heavy duty use with a chrome plated rod for corrosion resistance and long lasting service life. Features a 2-1/2 in. bore and 10 in. stroke design with 3,000 PSI working pressure for reliable operation. Delivers 14,726 lb push force and 11,744 lb pull force, ideal for tractors in the 45 to 95 HP range. Adjustable from 21-1/2 in. retracted to 31-1/2 in. extended for versatile implement positioning. Manufacturer Part Number: W30251010TL.

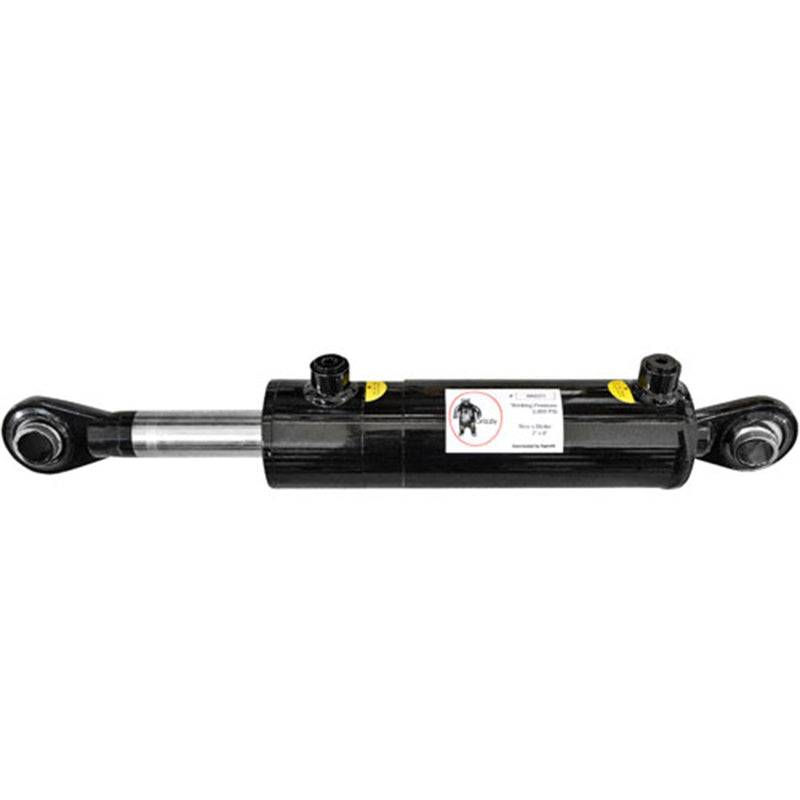

Upgrade your 3-point hitch with hydraulic adjustment using this durable CAT 2 hydraulic top link cylinder. Designed for reliable and precise implement angle control in demanding tractor operations.
Built for heavy duty use with a chrome plated rod for corrosion resistance and long lasting service life. Features a 3 in. bore and 8 in. stroke design with 3,000 PSI working pressure for reliable operation. Delivers 21,206 lb push force and 9,619 lb pull force, ideal for tractors in the 45 to 95 HP range. Adjustable from 22 in. retracted to 30 in. extended for versatile implement positioning. Manufacturer Part Number: W30300812TLDDI.

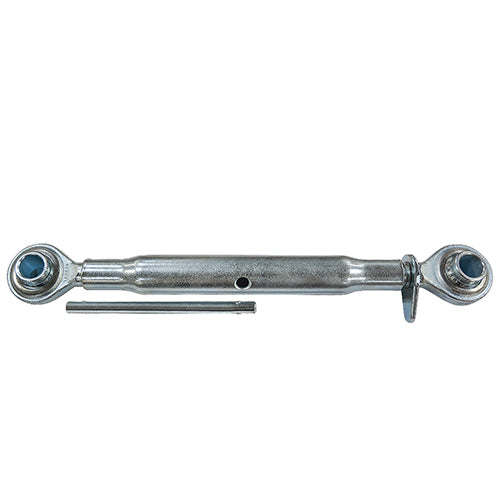

Adjust and secure your CAT 2 tractor top link connections with this durable adjustable top link assembly. Designed for reliable coupling and precise implement angle control in demanding 3-point hitch applications.
Built from mild steel construction with trivalent zinc finish on the tube and tommy bar, and white plated finish on the eyebolt and lock collar for corrosion resistance and long lasting service life. Features 1-1/8 in. threads for smooth and precise length adjustment from 17-15/16 in. closed to 29-3/4 in. extended. Comes complete with tommy bar for easy operation.
Product Detail
Finish
Trivalent Zinc (Tube/Tommy Bar), White Plated (Eyebolt/Lock Collar)

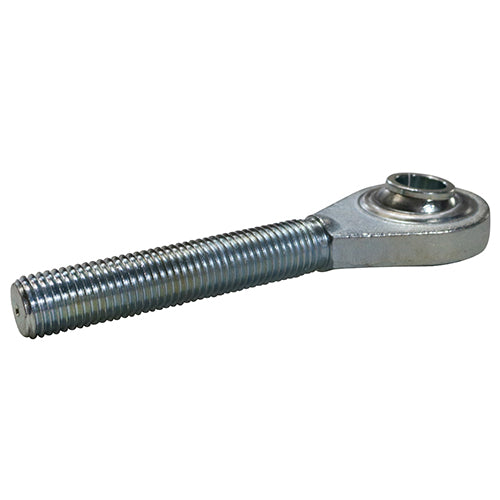

Repair or replace your CAT 3 tractor top link with this durable right hand swivel end. Designed for reliable coupling and adjustable positioning in demanding 3-point hitch applications.
Built from mild steel construction with a trivalent white zinc finish for corrosion resistance and long lasting service life. Rotating the bolt tightens (raises) or loosens (lowers) the top link allowing as much as 30 percent upward adjustment. Adjust the top link on level ground so the back of your rotary cutter is 1 in. to 2 in. higher than the front to allow cut grass to exit properly without scraping.
For the matching left hand side, use SKU 106109 (Top Link End CAT 3 Thread LH Swivel End).
