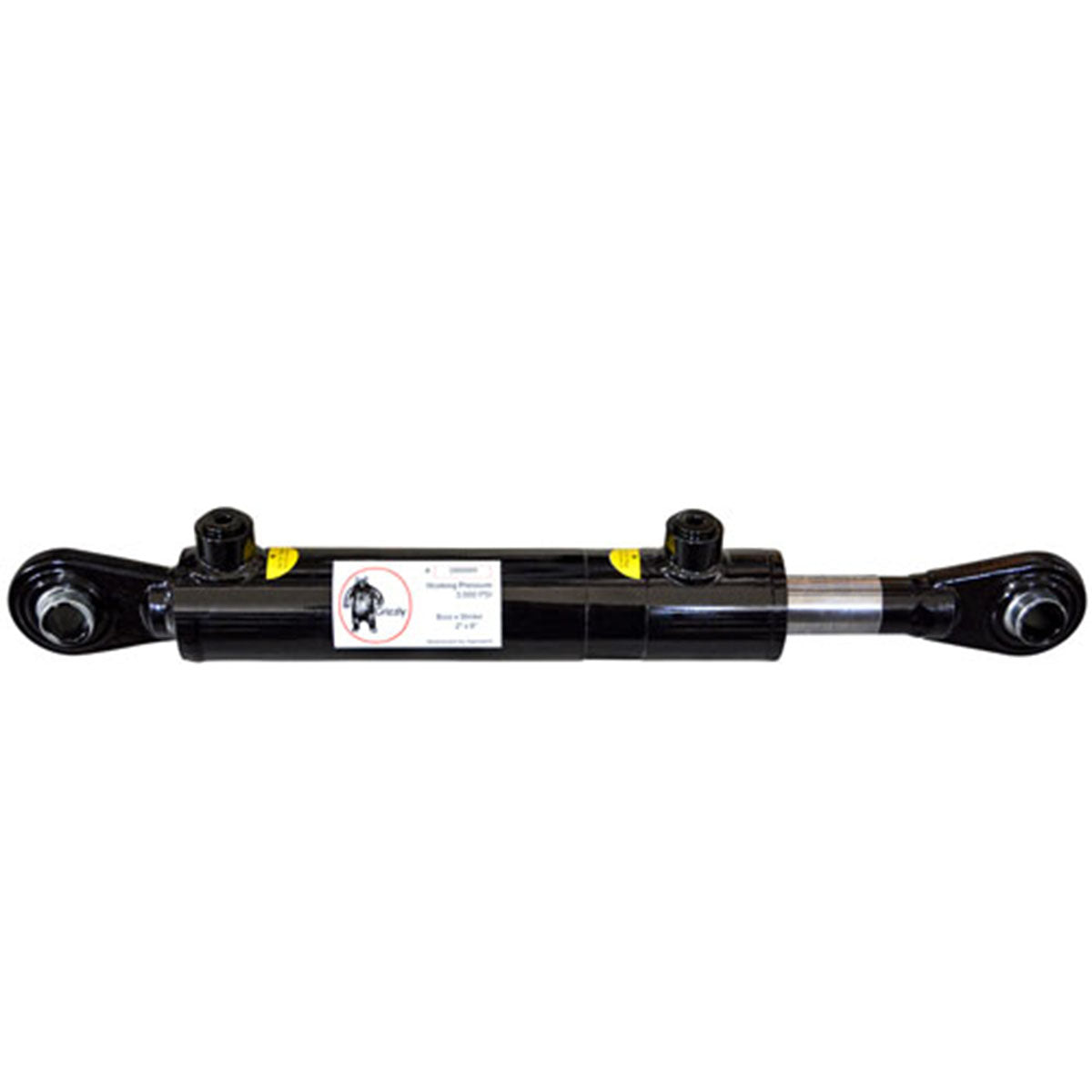

2 in. Bore x 8 in. Stroke CAT 1 Hydraulic Top Link Cylinder

Description

Upgrade your 3-point hitch with hydraulic adjustment using this durable CAT 1 hydraulic top link cylinder. Designed for reliable and precise implement angle control in demanding tractor operations.

Built for heavy duty use with a chrome plated rod for corrosion resistance and long lasting service life. Features a 2 in. bore and 8 in. stroke design with 3,000 PSI working pressure for reliable operation. Delivers 9,425 lb push force and 6,443 lb pull force, ideal for tractors in the 25 to 55 HP range. Adjustable from 20 in. retracted to 28 in. extended for versatile implement positioning. Manufacturer Part Number: W30200810TLDDI.

Dimension

Diameter - Pin:

3/4 in.

Diameter - Rod:

1.25 in.

Dimensions:

Port Configuration:

2 Port Holes: 3/4 in.-16 ORB (SAE-8)

Extended Length:

28 in.

Length - Retracted:

20 in.

Specification

Bore:

2 in.

Brand:

Grizzly

Class:

CAT 1

Features:

Chrome plated rod construction for superior corrosion resistance
3,000 PSI working pressure for reliable hydraulic operation
9,425 lb push force and 6,443 lb pull force ratings
Adjustable length from 20 in. retracted to 28 in. extended
CAT 1 compatibility for 25 to 55 HP tractor applications

Pull Force:

6,443 lb

Push Force:

9,425 lb

Stroke:

8 in.

Style:

Hydraulic Top Link Cylinder

Type:
