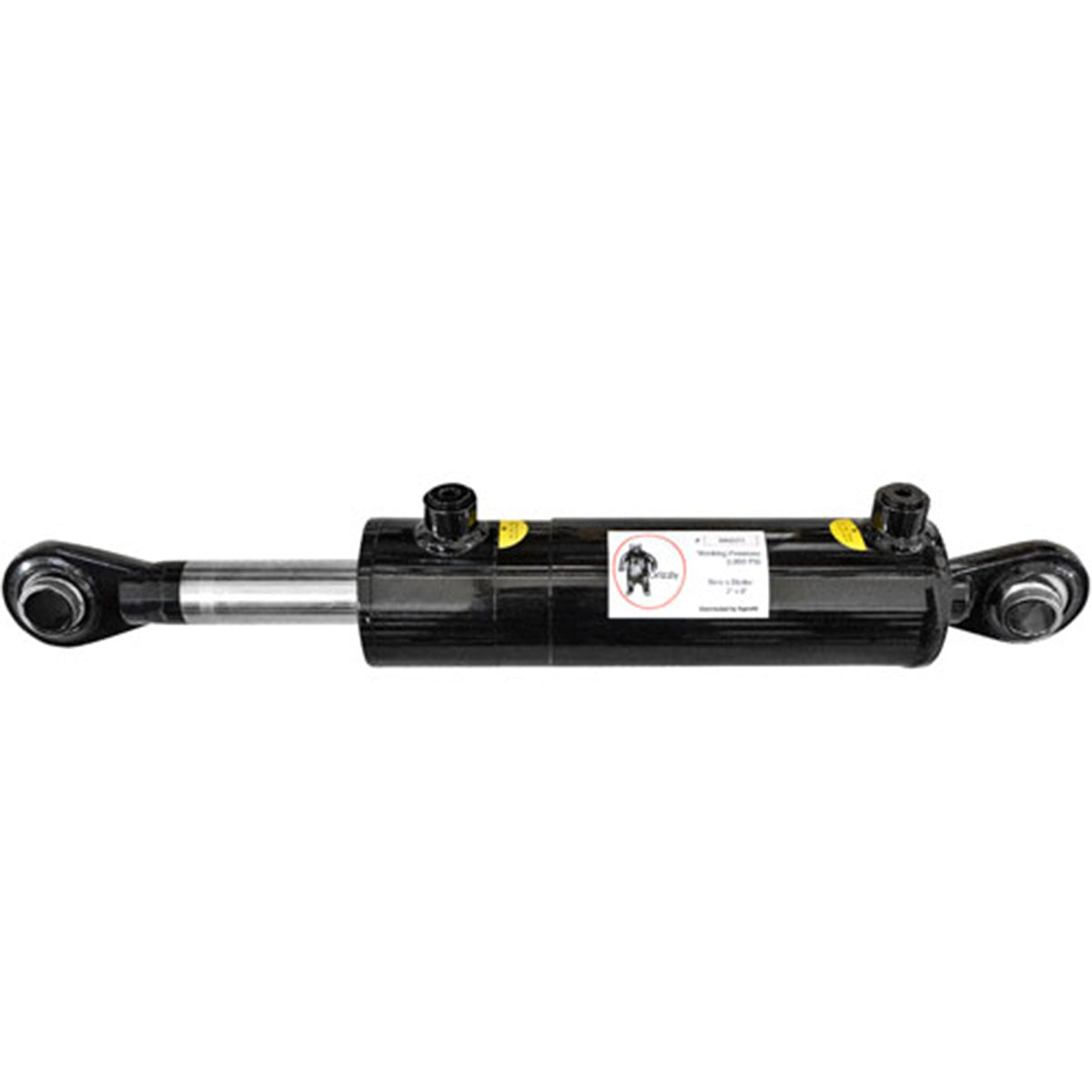

3 in. Bore x 8 in. Stroke CAT 2 Hydraulic Top Link Cylinder

Description

Upgrade your 3-point hitch with hydraulic adjustment using this durable CAT 2 hydraulic top link cylinder. Designed for reliable and precise implement angle control in demanding tractor operations.

Built for heavy duty use with a chrome plated rod for corrosion resistance and long lasting service life. Features a 3 in. bore and 8 in. stroke design with 3,000 PSI working pressure for reliable operation. Delivers 21,206 lb push force and 9,619 lb pull force, ideal for tractors in the 45 to 95 HP range. Adjustable from 22 in. retracted to 30 in. extended for versatile implement positioning. Manufacturer Part Number: W30300812TLDDI.

Dimension

Diameter - Pin:

1 in.

Diameter - Rod:

1-1/2 in.

Dimensions:

Port Configuration:

2 Port Holes: 3/4 in.-16 ORB (SAE-8)

Extended Length:

30 in.

Length - Retracted:

22 in.

Specification

Bore:

3 in.

Brand:

Grizzly

Class:

CAT 2

Features:

Chrome plated rod construction for superior corrosion resistance
3,000 PSI working pressure for reliable hydraulic operation
21,206 lb push force and 9,619 lb pull force ratings
Adjustable length from 22 in. retracted to 30 in. extended
CAT 2 compatibility for 45 to 95 HP tractor applications

Pull Force:

9,619 lb

Push Force:

21,206 lb

Stroke:

8 in.

Style:

Hydraulic Top Link Cylinder

Type:
