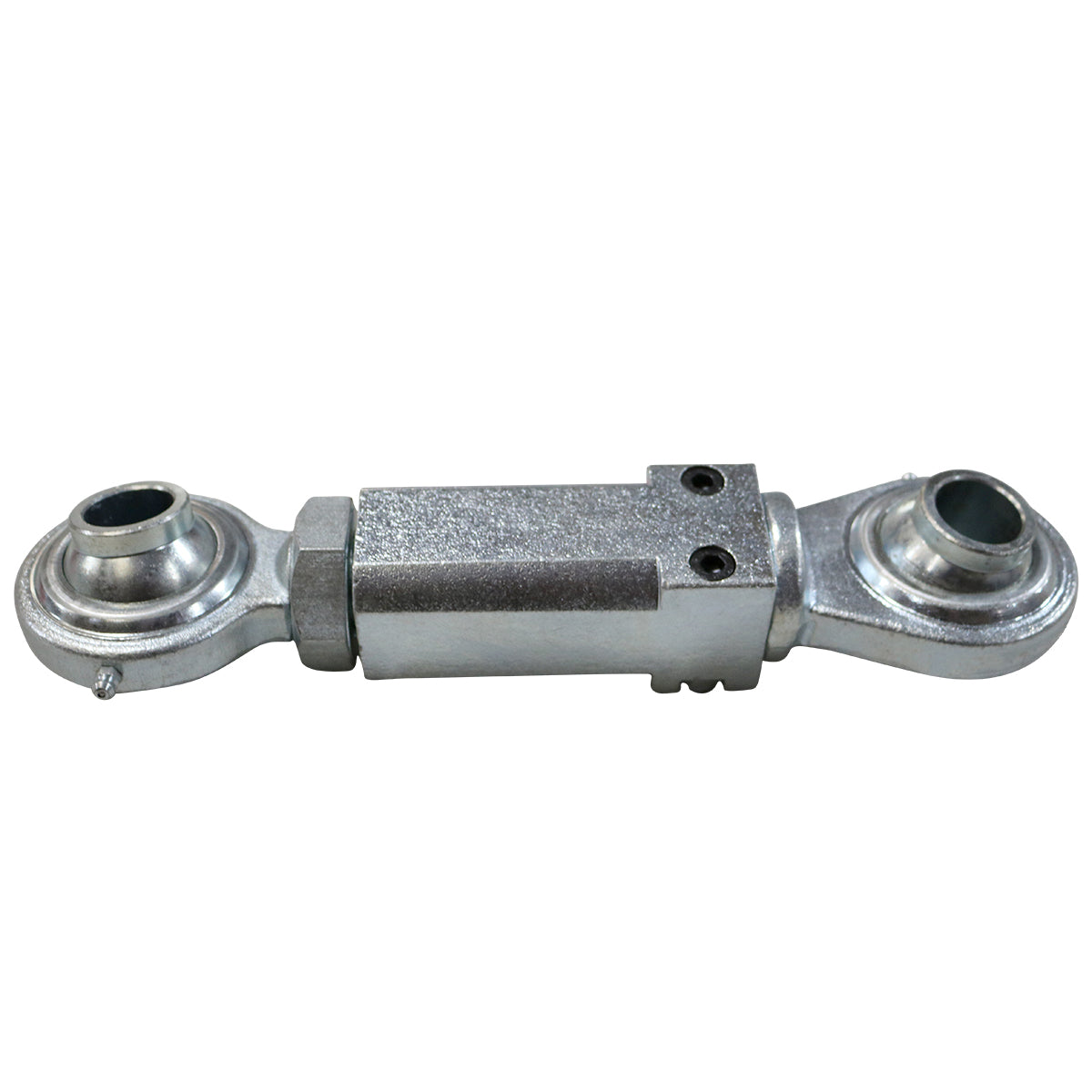

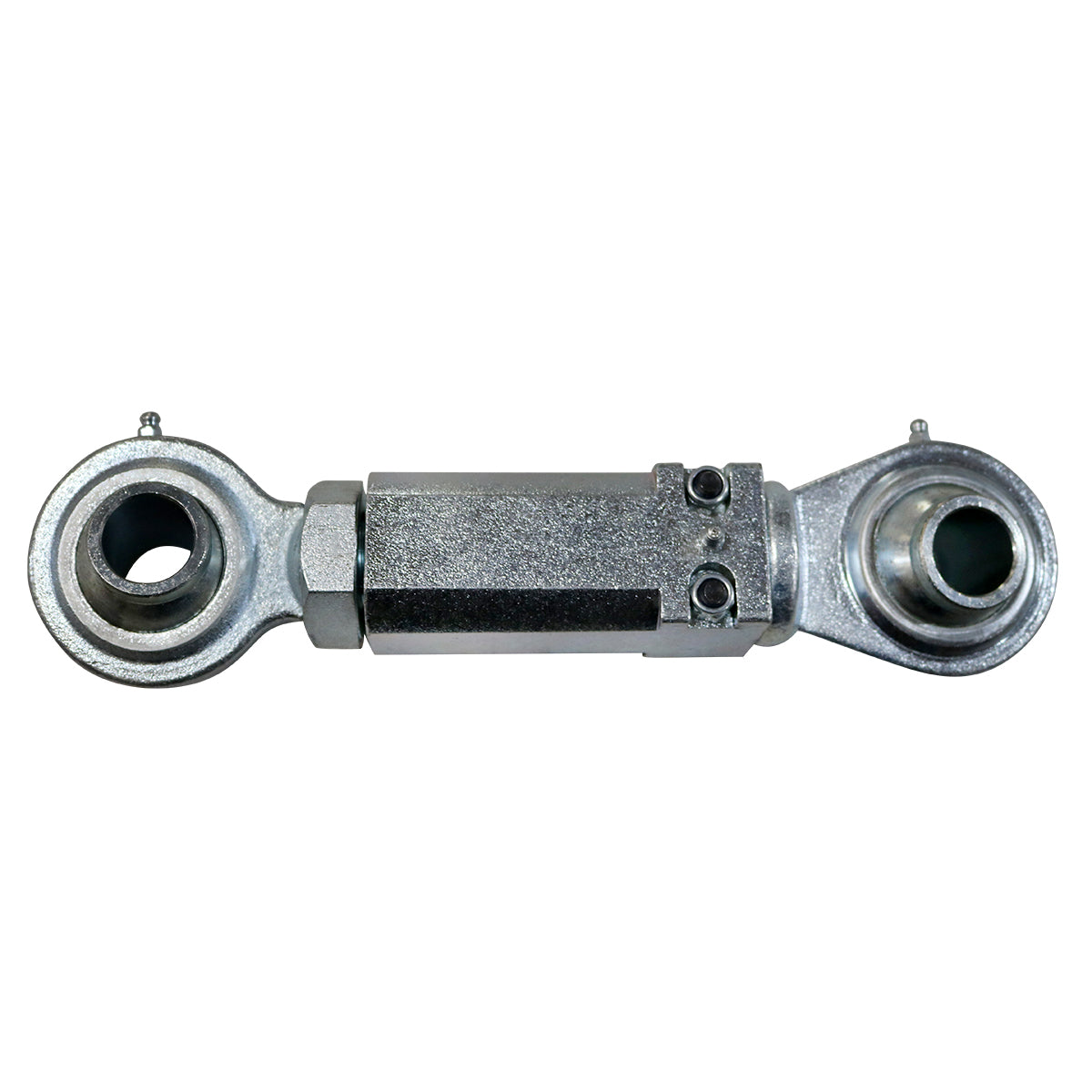

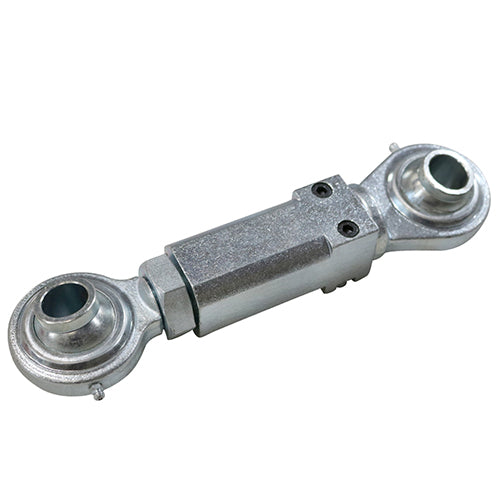

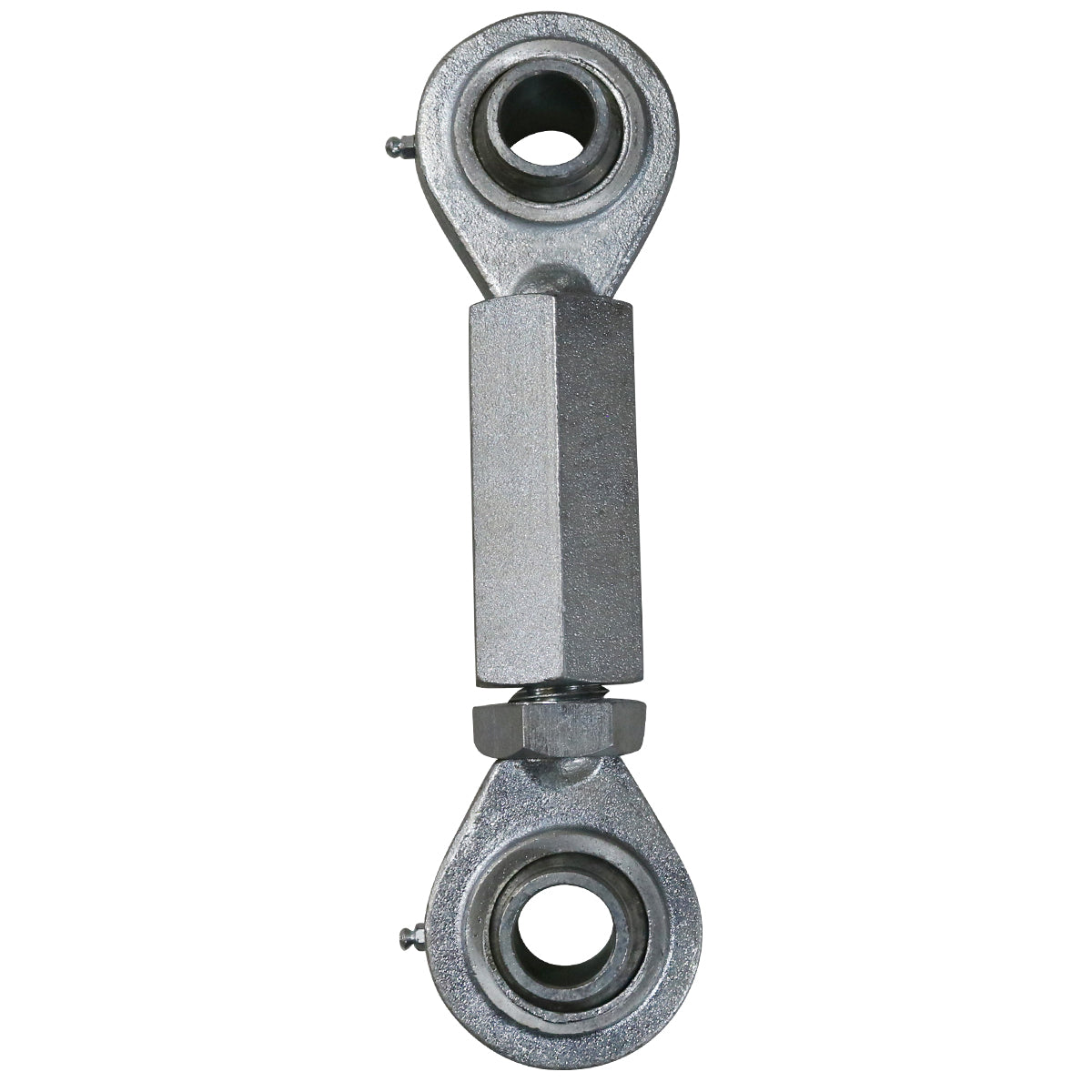

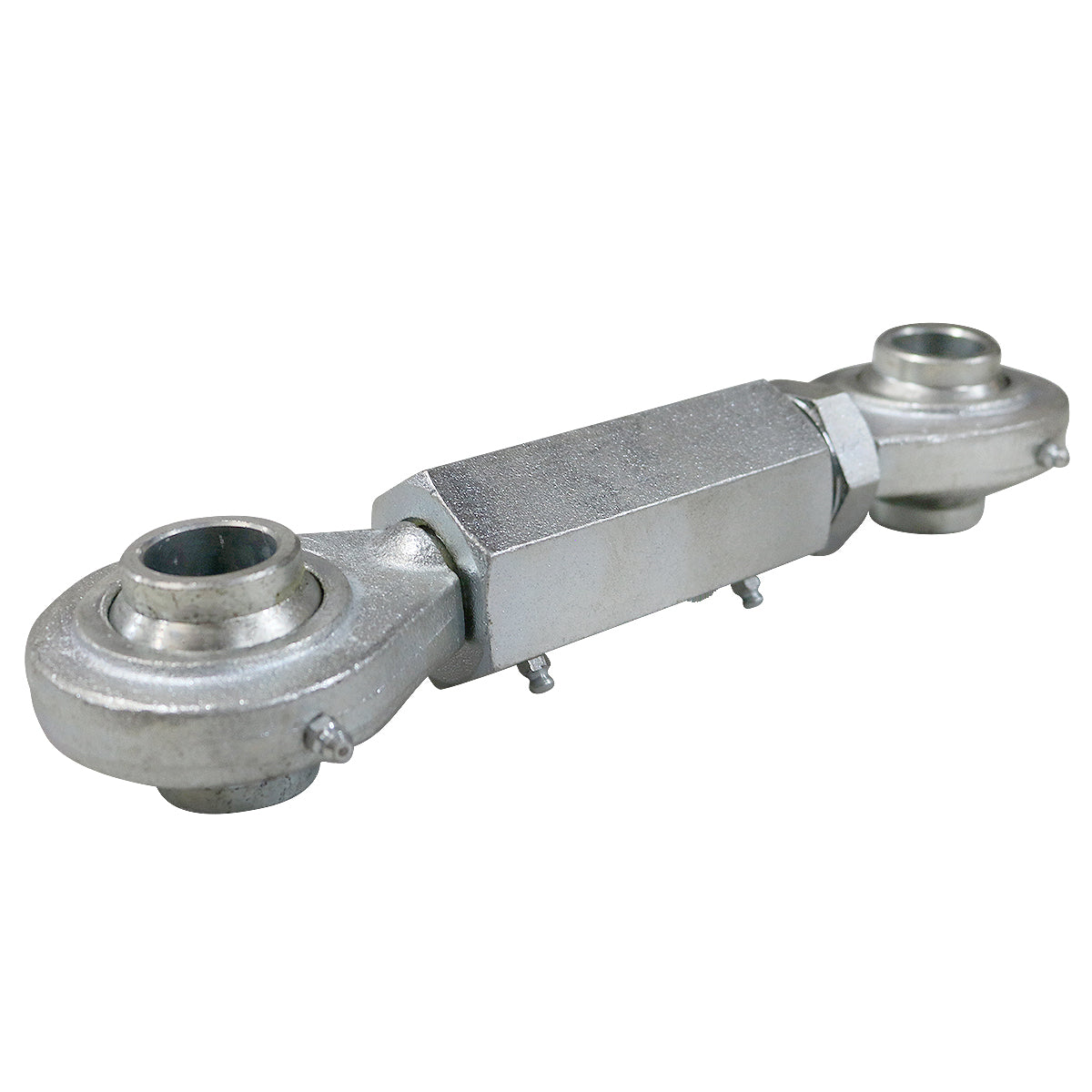

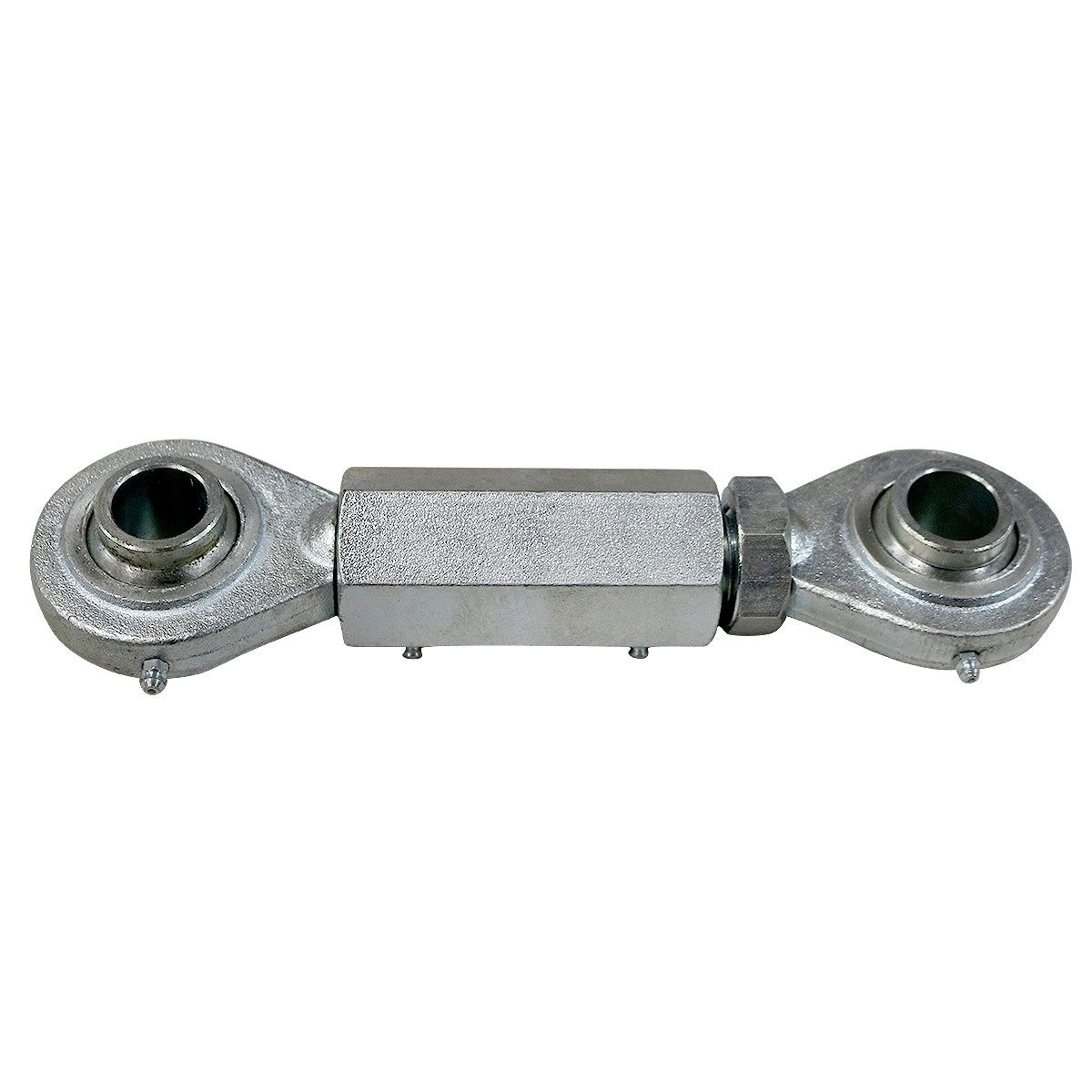

Turnbuckle With Swivel and Threaded End

Description

This turnbuckle features one swivel end and one threaded end, designed for heavy-duty tensioning applications. The swivel end includes a ball socket for flexible movement, while the threaded end also features a ball socket with 1-1/4 in.-7 UNC right-hand threads and a locknut for secure adjustment.

Constructed with trivalent white plating for corrosion resistance, this turnbuckle includes grease zerks on the body and both swivel ball ends for easy maintenance.

Dimension

Dimensions:

Body length: 4-5/8 in.

Extended length: 11-1/4 in.

Swivel end ball socket ID: 1 in.

Threaded end ball socket ID: 1 in.

Length - Retracted:

9-1/4 in.

Weight:

9 lb

Specification

Features:

Dual ball sockets with 1 inch inner diameter on swivel and threaded ends for versatile connection options
1-1/4 in-7 UNC right-hand threads with included locknut for secure, adjustable tensioning
Trivalent white plating provides superior corrosion resistance in harsh environments
Integrated grease zerks on body and both ball ends simplify routine maintenance

Finish:

Trivalent Zinc

Thread:

1-1/4 in.

Thread Type:

7 UNC RH

Type:

Turnbuckle
