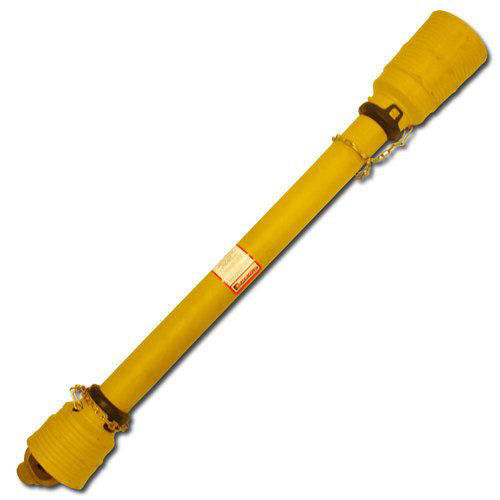

Series 8BX PTO Shaft, 1-3/8 in. 6 Spline x 1-3/8 in. 21 Spline

Product Documents

42995_cat_002.pdf

Description

Designed for agricultural applications requiring a splined implement-end connection, this PTO shaft provides dependable power transfer and durable driveline performance in demanding field conditions.

The splined tubing design helps ensure efficient torque transmission, while the driveline accommodates implement movement during operation. Suitable for equipment requiring a 21-spline implement connection and a 6-spline tractor connection.

Built for high-capacity agricultural applications where reliable PTO performance and durability are essential.

Dimension

Extended Length:

73 in.

Length - Overall:

48.7 in.

Weight:

64 lb

Specification

Assembly Description:

BX8980A-SPL 1021

Brand:

Eurocardan

Description:

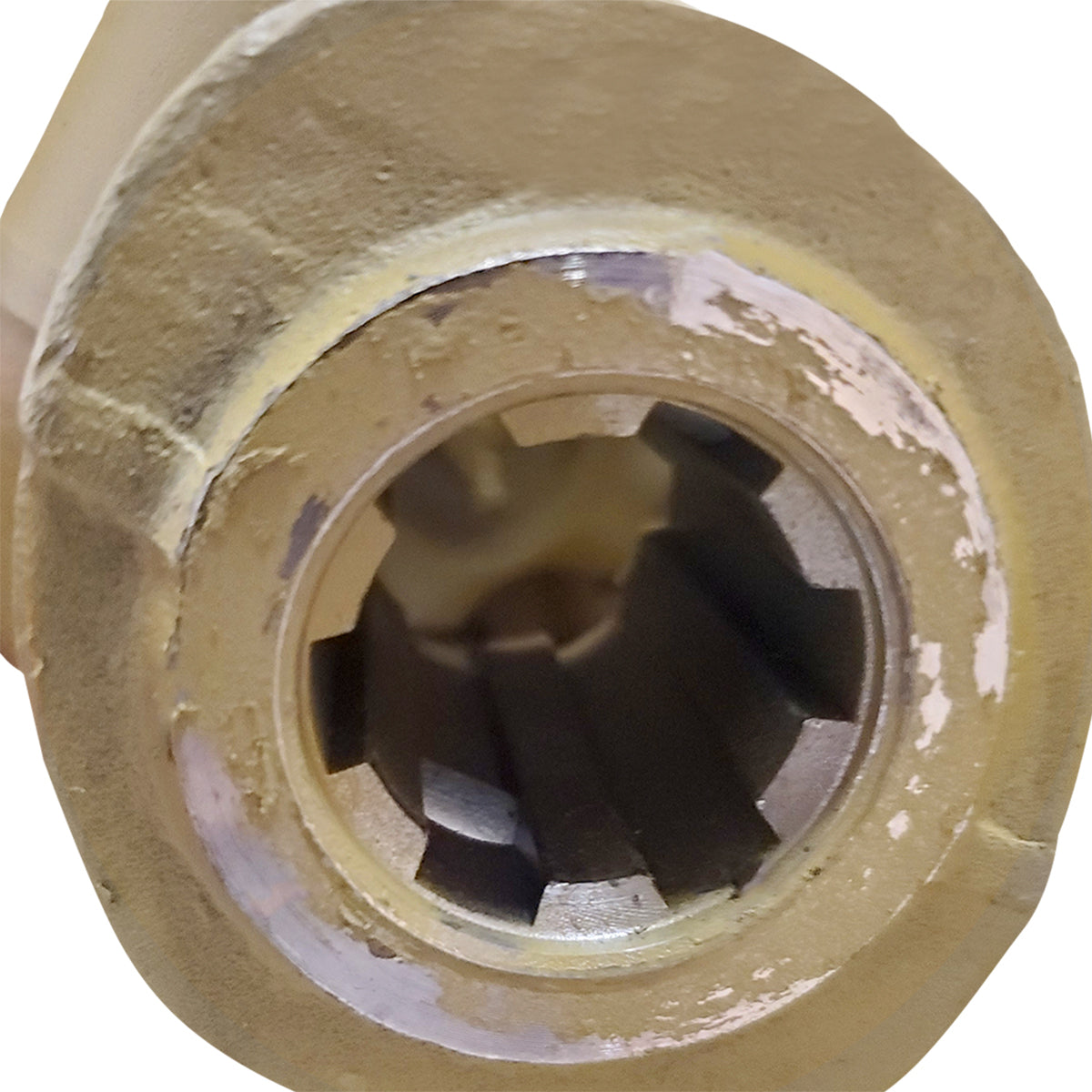

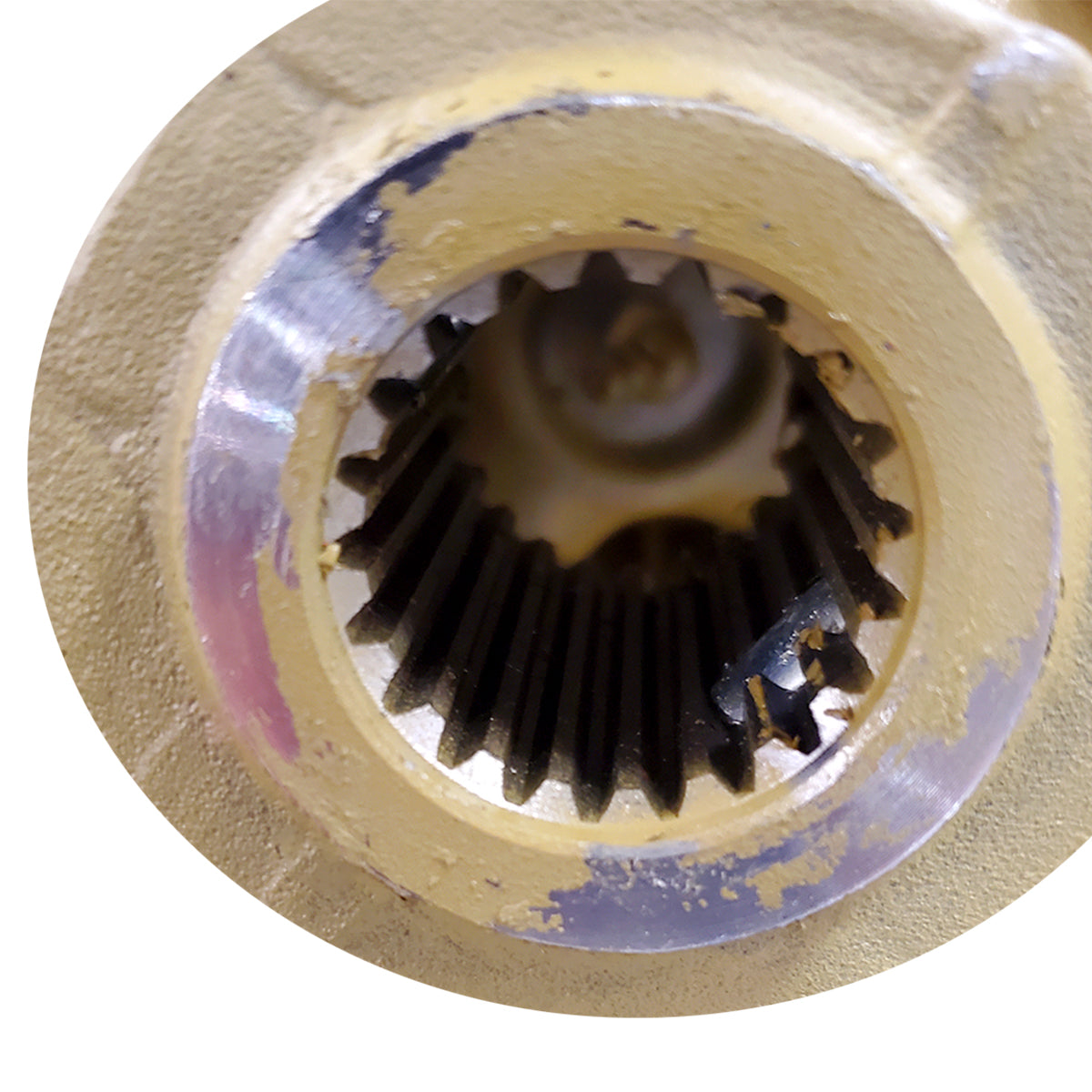

1-3/8 in. x 21 Spline I.E. - 1-3/8 in. x 6 Spline T.E. (with Spline Shaft)

Features:

Series 8BX PTO shaft assembly
Splined implement end yoke included
Splined tubing design for efficient power transfer
Heavy-duty agricultural driveline construction
Designed for demanding field applications

HP at 1000 RPM:

145 HP

HP at 540 RPM:

91 HP

Implement End:

1-3/8 in.

Implement End Spline Count:

Series:

8 BX

Tractor End:

1-3/8 in.

Tractor End Spline Count:

Type:

PTO Assembly
