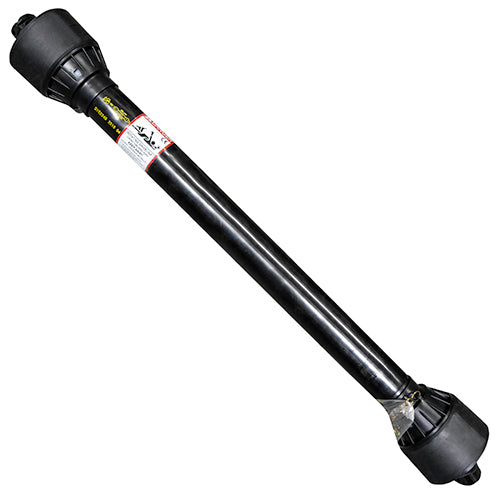

#6 PTO SHAFT 1-3/4-20 SPL

Series 6 PTO Shaft with Slip Clutch

SKU: #105045

Series 6 PTO Shaft with Slip Clutch

SKU: #105045
Description

Maintain dependable power transfer with this PTO shaft designed for agricultural equipment applications. The driveline assembly provides efficient transmission of PTO power while supporting smooth operation in demanding field conditions.

Built for heavy-duty service, this PTO shaft features slip clutch protection to help reduce driveline damage caused by shock loads and overload conditions. The complete assembly includes shielding and is designed for compatibility with equipment requiring a Series 6 PTO driveline.

Dimension
Dimensions:
  • Tractor Yoke: 1-3/8 in., 6-Spline
  • Implement Yoke: 1-3/4 in., 20-Spline
  • Clutch Diameter: 7-7/8 in.



Extended Length:
70.74 in.
Length - Retracted:
54.2 in.
Weight:
58.5 lb
Specification
Brand:
Grizzly
Features:



  • Series 6 PTO driveline assembly
  • Includes FD2 2-disc slip clutch protection
  • Complete assembly with shielding
  • 1-3/8 in. x 6 spline tractor connection
  • 1-3/4 in. x 20 spline implement connection



Series:
6
Type:
PTO Shaft
Series 6 PTO Shaft with Slip Clutch
