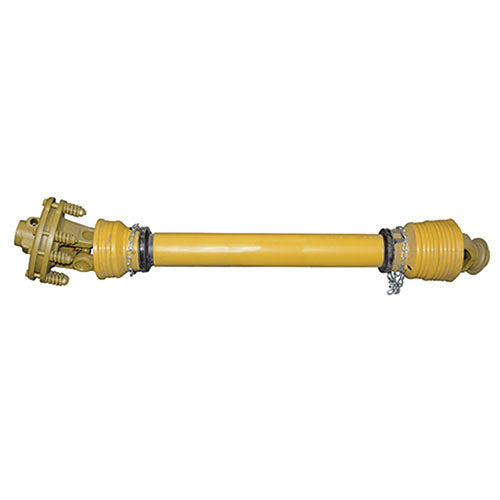

Series 6 PTO Shaft with FD4 Slip Clutch, 1-3/8 in. 6 Spline x 1-3/4 in. 20 Spline

SKU: #34240
Description

Designed for agricultural equipment requiring reliable power transmission and driveline protection. The FD4 heavy-duty slip clutch helps reduce shock loads and overload conditions, helping protect PTO driveline components during demanding field operations.

The PTO shaft can be used on a variety of agricultural implements requiring a 1-3/8 in. 6-spline tractor connection and a 1-3/4 in. 20-spline implement connection. The telescoping driveline design accommodates implement movement while maintaining dependable power transfer throughout operation.

Dimension
Extended Length:
87.4 in.
Length - Overall:
61 in.
Weight:
56.8 lb
Specification
Assembly Description:
AX61240FD4/MC
Brand:
Eurocardan
Description:
FD4 Slip Clutch - 1-3/4 in. x 20 I.E. - 1-3/8 in. x 6 MC T.E.
Features:
  • Series 6 PTO shaft assembly
  • Includes FD4 heavy-duty slip clutch
  • Telescoping driveline design
  • Durable construction for agricultural applications
  • Designed for reliable power transmission
HP at 1000 RPM:
98 HP
HP at 540 RPM:
62 HP
Implement End:
1-3/4 in.
Implement End Spline Count:
20
Series:
6
Tractor End:
1-3/8 in.
Tractor End Spline Count:
6
Type:
PTO Assembly
Used On:
15 ft. Wing

Product Documents

34240_cat_002.pdf
Series 6 PTO Shaft with FD4 Slip Clutch, 1-3/8 in. 6 Spline x 1-3/4 in. 20 Spline
