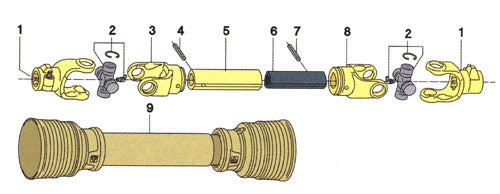

Series 6 PTO Shaft with FD4 Slip Clutch, 1-3/8 in. 6-Spline Ends

SKU: #34243
Description

Designed for rototillers and other agricultural implements requiring dependable power transfer and driveline protection. The FD4 slip clutch helps reduce shock loads and overload stresses, helping protect connected driveline and gearbox components during operation.

Built for demanding field applications, this PTO shaft features a telescoping driveline design that accommodates implement movement while maintaining smooth and efficient power transmission. Suitable for equipment requiring a durable PTO assembly with slip clutch protection.

Dimension
Extended Length:
51 in.
Length - Overall:
39.5 in.
Weight:
57 lb
Specification
Assembly Description:
AX6710FD4A-HDSC/MC
Brand:
Eurocardan
Description:
FD4 Slip Clutch - 1-3/8 in. x 6 Spline
Features:
  • Series 6 PTO shaft assembly
  • Includes FD4 slip clutch
  • Designed for rototiller applications
  • Telescoping driveline design
  • Reliable power transfer for agricultural equipment
HP at 1000 RPM:
98 HP
HP at 540 RPM:
62 HP
Implement End:
1-3/8 in.
Implement End Spline Count:
6
Series:
6
Tractor End:
1-3/8 in.
Tractor End Spline Count:
6
Type:
PTO Assembly
Used On:
Heavy Duty Tillers

Product Documents

34243_cat_002.pdf
Series 6 PTO Shaft with FD4 Slip Clutch, 1-3/8 in. 6-Spline Ends
