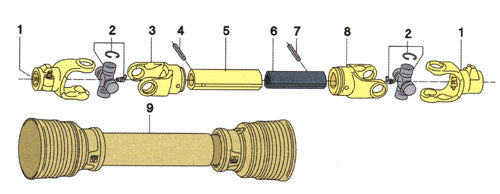

Series 6 PTO Shaft with FD4 Slip Clutch

SKU: #38750
Description

Designed for agricultural equipment requiring dependable power transfer in demanding field conditions. The FD4 slip clutch helps protect driveline components from shock loads and overload conditions, reducing stress on connected equipment during operation.

The telescoping driveline design accommodates implement movement while maintaining smooth and efficient power transmission. Suitable for a variety of agricultural applications requiring a durable Series 6 PTO shaft with slip clutch protection.

Dimension
Extended Length:
87.4 in.
Length - Overall:
61 in.
Specification
Assembly Description:
AX61240FD4/MC/1020
Brand:
Eurocardan
Description:
FD4 Slip Clutch - 1-3/4 in. x 20 Spline I.E. - 1-3/4 in. x 20 Spline MC T.E.
Features:
  • Series 6 PTO shaft assembly
  • Includes FD4 slip clutch
  • Telescoping driveline design
  • Heavy-duty agricultural construction
  • Designed for reliable power transfer
HP at 1000 RPM:
98 HP
HP at 540 RPM:
62 HP
Implement End:
1-3/4 in.
Implement End Spline Count:
20
Series:
6
Tractor End:
1-3/4 in.
Tractor End Spline Count:
20
Type:
PTO Assembly
Used On:
15 ft. Wing

Product Documents

38750_cat_002.pdf
Series 6 PTO Shaft with FD4 Slip Clutch
