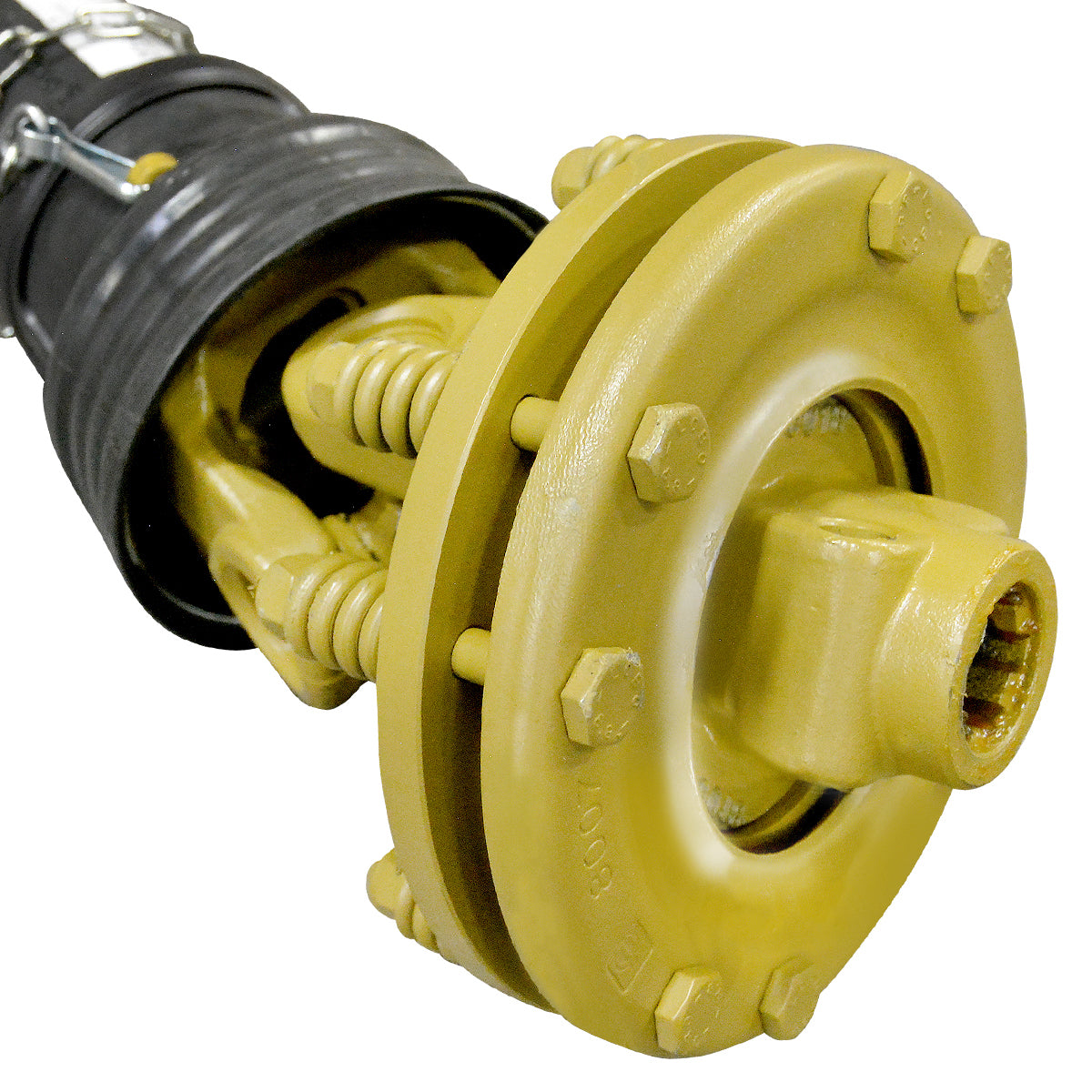

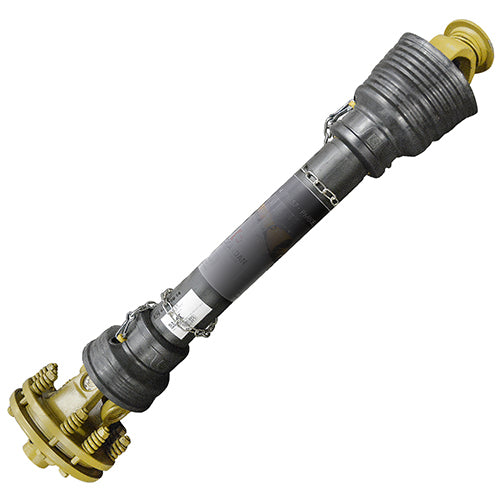

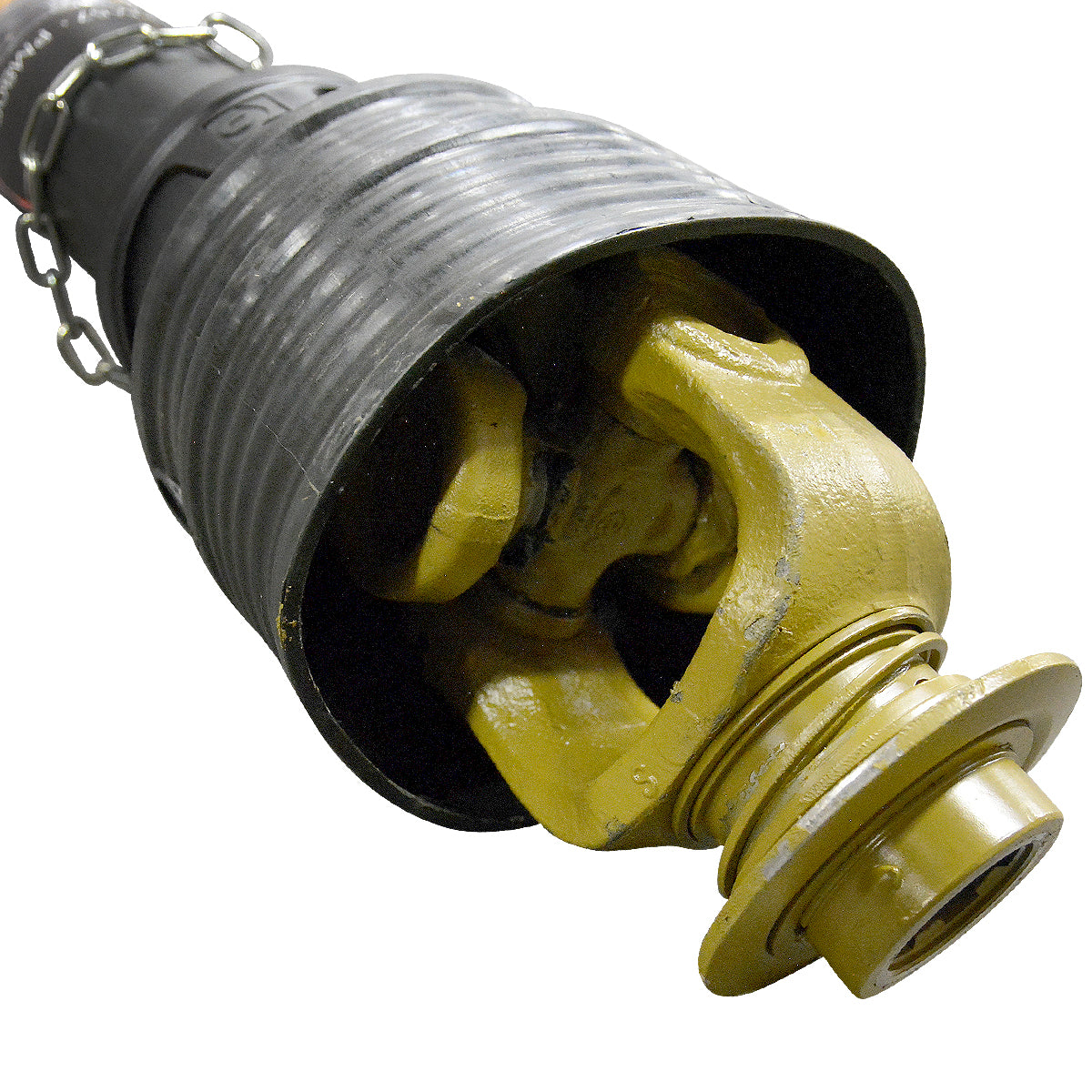

Series 6 PTO Shaft with FD2 Slip Clutch, 1-3/8 in. 6-Spline Ends

SKU: #51445
Description

Designed for agricultural implements requiring reliable power transfer and driveline protection. The FD2 slip clutch helps reduce shock loads and overload conditions, helping protect connected driveline and gearbox components during operation.

Built by Eurocardanยฎ, this PTO shaft is suitable for a variety of agricultural applications where dependable PTO performance is required. The telescoping driveline accommodates implement movement while maintaining smooth and efficient power transmission in field conditions.

Dimension
Extended Length:
51.7 in.
Length - Overall:
38.6 in.
Specification
Assembly Description:
AX6710FD2A-SC
Brand:
Eurocardan
Description:
FD2 Slip Clutch - 1-3/8 in. x 6 Spline Interfering Bolt I.E. 1-3/8 in. x 6 Spline MC Yoke T.E.
Features:
  • Series 6 PTO shaft assembly
  • Includes FD2 slip clutch
  • Metal pull collar tractor-end connection
  • Telescoping driveline design
  • Designed for reliable agricultural power transmission
HP at 1000 RPM:
98 HP
HP at 540 RPM:
62 HP
Implement End:
1-3/8 in.
Implement End Spline Count:
6
Pull Collar Material:
Metal
Series:
6
Tractor End:
1-3/8 in.
Tractor End Spline Count:
6
Type:
PTO Assembly
Used On:
FD2 Slip Clutch

Product Documents

51445_cat_002.pdf
