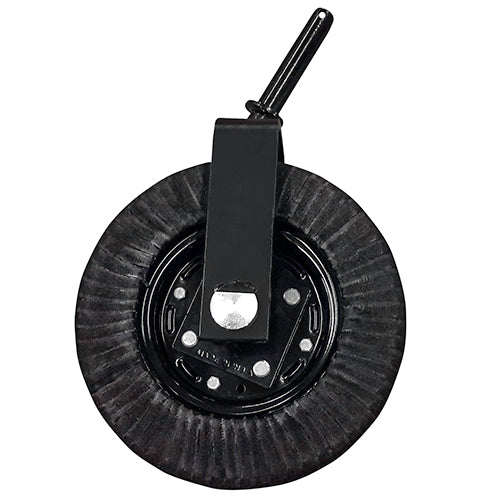

4X8 Laminated Tail Wheel Assembly with Fork

Description

Restore reliable rotary cutter performance with this Grizzly® laminated tail wheel assembly. Designed as a complete replacement unit, the assembly includes the wheel, hub, axle hardware, and fork required for dependable tail wheel operation in demanding agricultural applications.

Built with a fabricated steel hub and greaseable bushing design, this tail wheel assembly is engineered for durability and long service life. It is an ideal replacement solution for maintaining proper mower support, maneuverability, and field performance.

Dimension

Bolt Pattern:

1/2 in. on 5 in.

Diameter - Outer:

15-3/8 in.

Diameter - Shank:

1-1/4 in.

Dimensions:

Wheel

Size: 4 in. x 8 in.
Outside Diameter: 15-3/8 in.
Width: 3-3/4 in.

Rim

Mounting Holes: 4
Bolt Circle Diameter: 5 in.
Mounting Hole Diameter: 1/2 in.

Axle

Size: 1 in.
Bolt Size: 1 in.

Fork

Shank Diameter: 1-1/4 in.
Shank Length: 5 in.
Mounting Hole Diameter: 17/32 in.
Axle Hole Diameter: 1 in.
Internal Leg Width: 5-1/2 in.

Hole Size:

17/32 in.

Weight:

41 lb

Width - Overall:

3-3/4 in.

Specification

Axle:

1 in. Axle Bolt with Castle Nut & Cotter Pin

Bolt Count:

Bushing Size:

1 in.

Features:

Complete Grizzly® tail wheel assembly
Includes wheel, hub, axle hardware, and fork
Laminated wheel construction for durability
Fabricated steel hub with greaseable bushing
Designed for rotary cutter applications

Fork Internal Width:

5-1/2 in.

Hub:

Fabricated with Sintered Bushing & Grease Zerk
