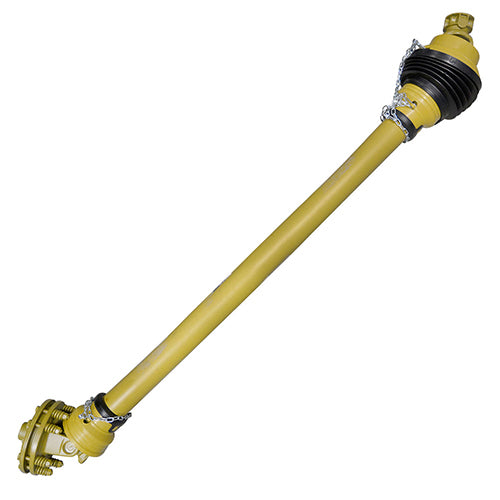

CV6 70-3/16 in. OL 1-3/8 in. 6-Spline CV PTO Shaft

Description

This CV6 70-3/16 in. OL series 6 constant velocity PTO shaft delivers smooth and reliable power transfer from tractor to implement. Equipped with a 6-spline 80° constant velocity MPC tractor end and a 6-spline 2-disc friction clutch implement end, this shaft is rated for 62 HP at 540 RPM and 98 HP at 1,000 RPM, making it ideal for applications requiring consistent angular power delivery.

Featuring a constant velocity design for uniform rotation at varying angles and a 2-disc friction clutch for overload protection, this PTO shaft is built for durability and dependable performance in demanding agricultural field conditions.

Dimension

Length - Overall:

70-3/16 in.

Length - Usable:

101-5/16 in.

Weight:

83 lb

Specification

Assembly Description:

AJ61141-15234AJ

Brand:

Eurocardan

CV Angle:

80°

Eurocardan Part #:

ME61410CV-SPL

Features:

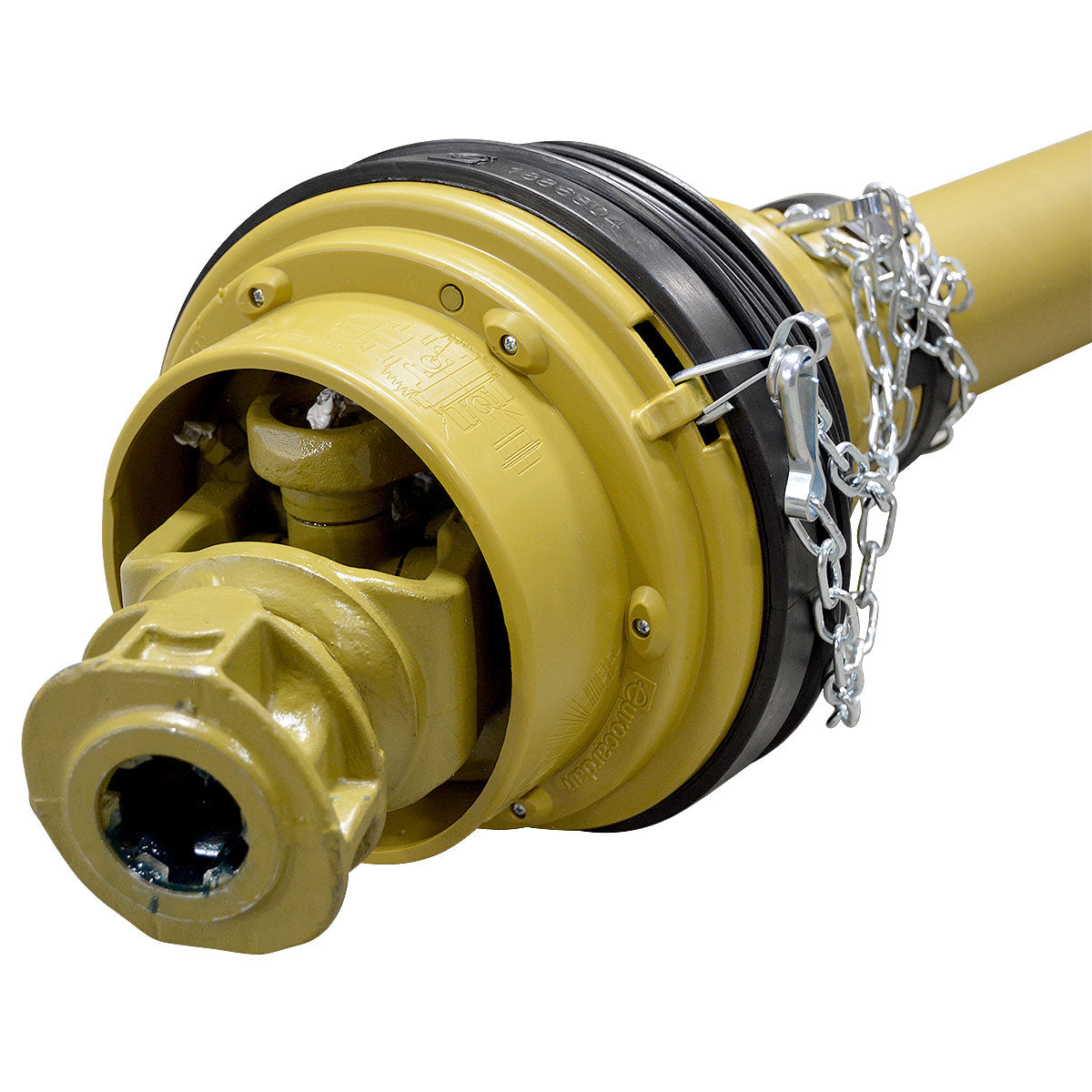

80° constant velocity tractor end for smooth power delivery at varying angles

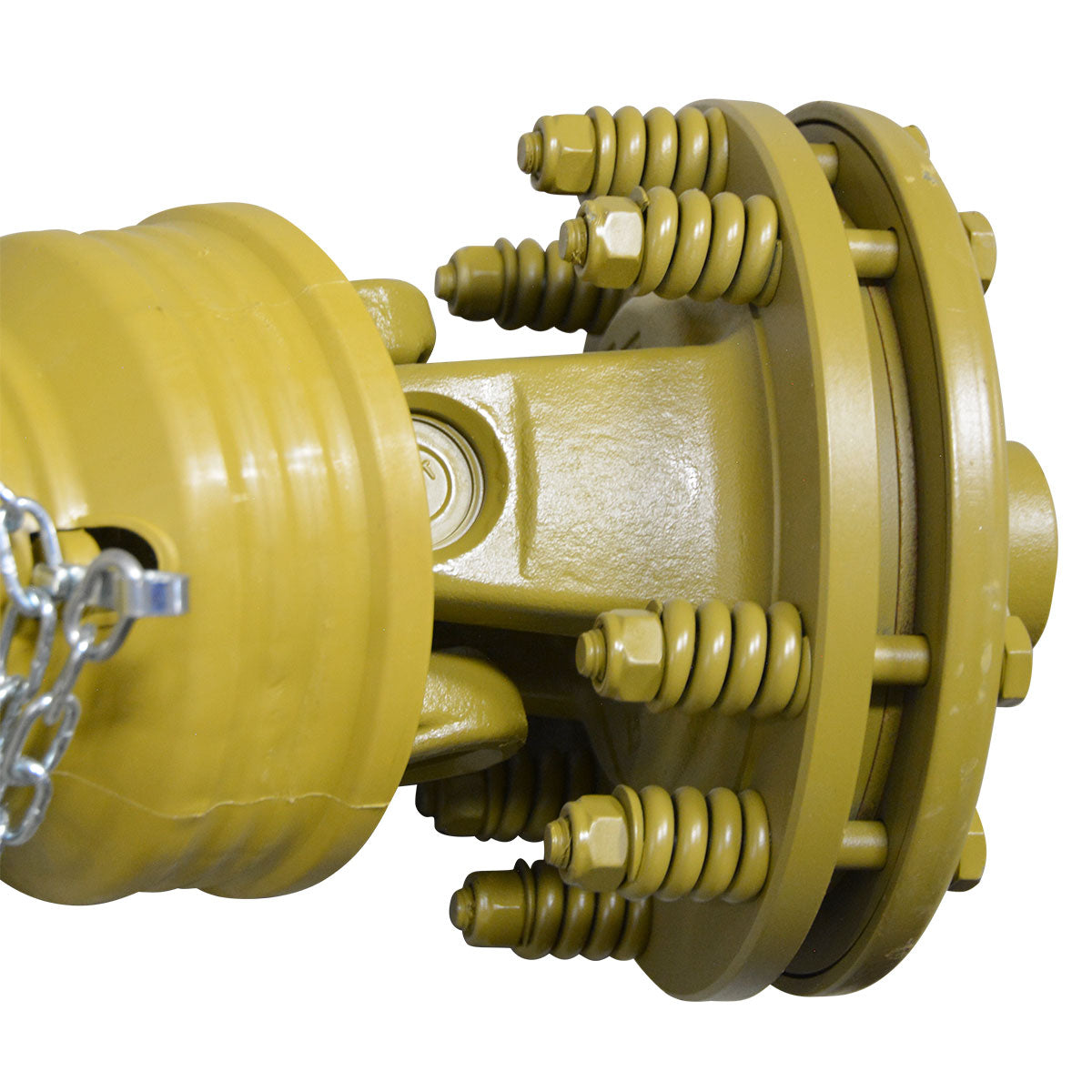

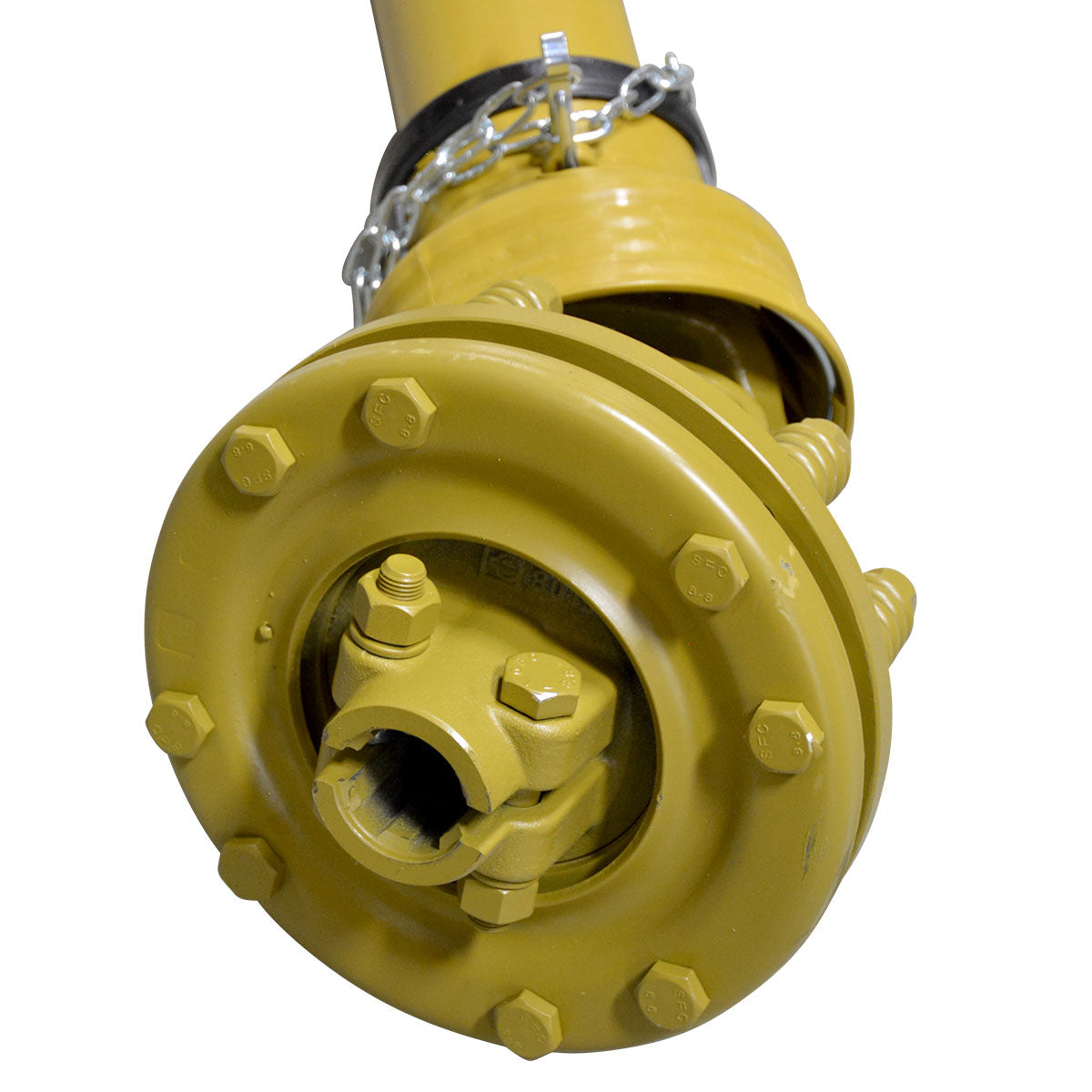

2-disc friction clutch implement end for reliable overload protection
Rated for 62 HP at 540 RPM and 98 HP at 1,000 RPM
6-spline connections on both tractor and implement ends for secure fit
Series 6 construction designed for demanding agricultural applications

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Connection Type:

2-Disc Friction Clutch

Implement End Spline Count:

Series:

CV6

Series Size:

Tractor End:

1-3/8 in.

Tractor End Spline Count:

Type:

Conversion Bushing

Used On:

10’ Pull Type Constant Velocity
