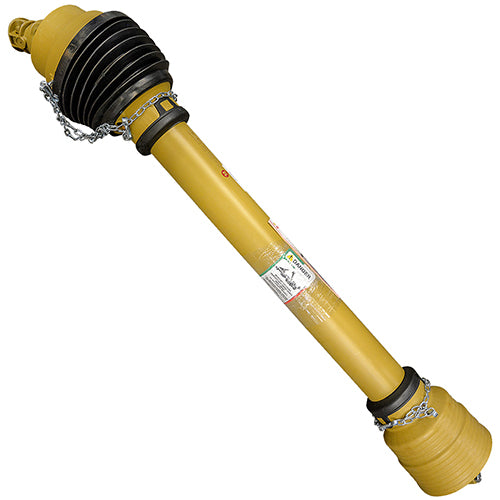

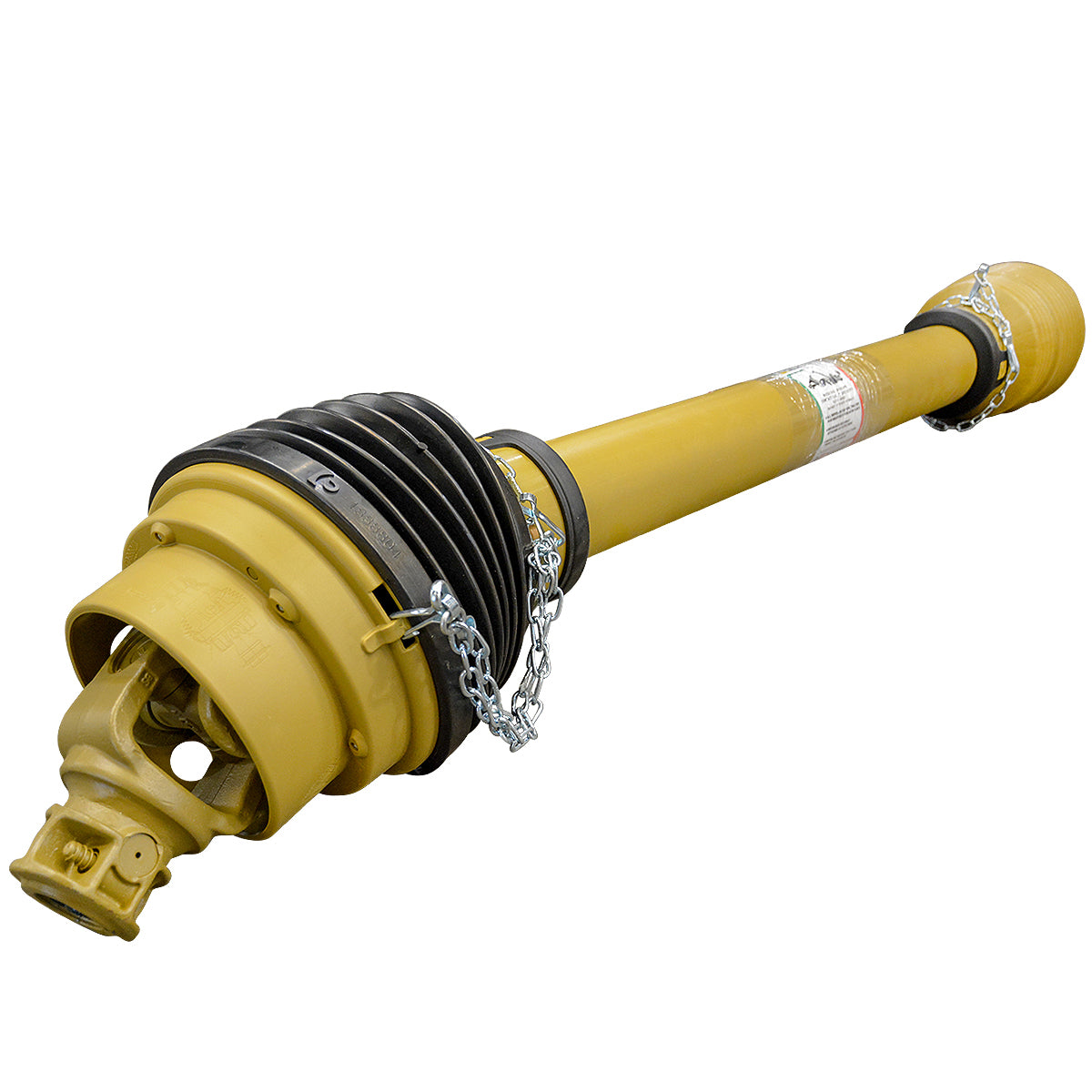

CV6 69-1/8 in. OL 6-Spline x 20-Spline CV PTO Shaft

Description

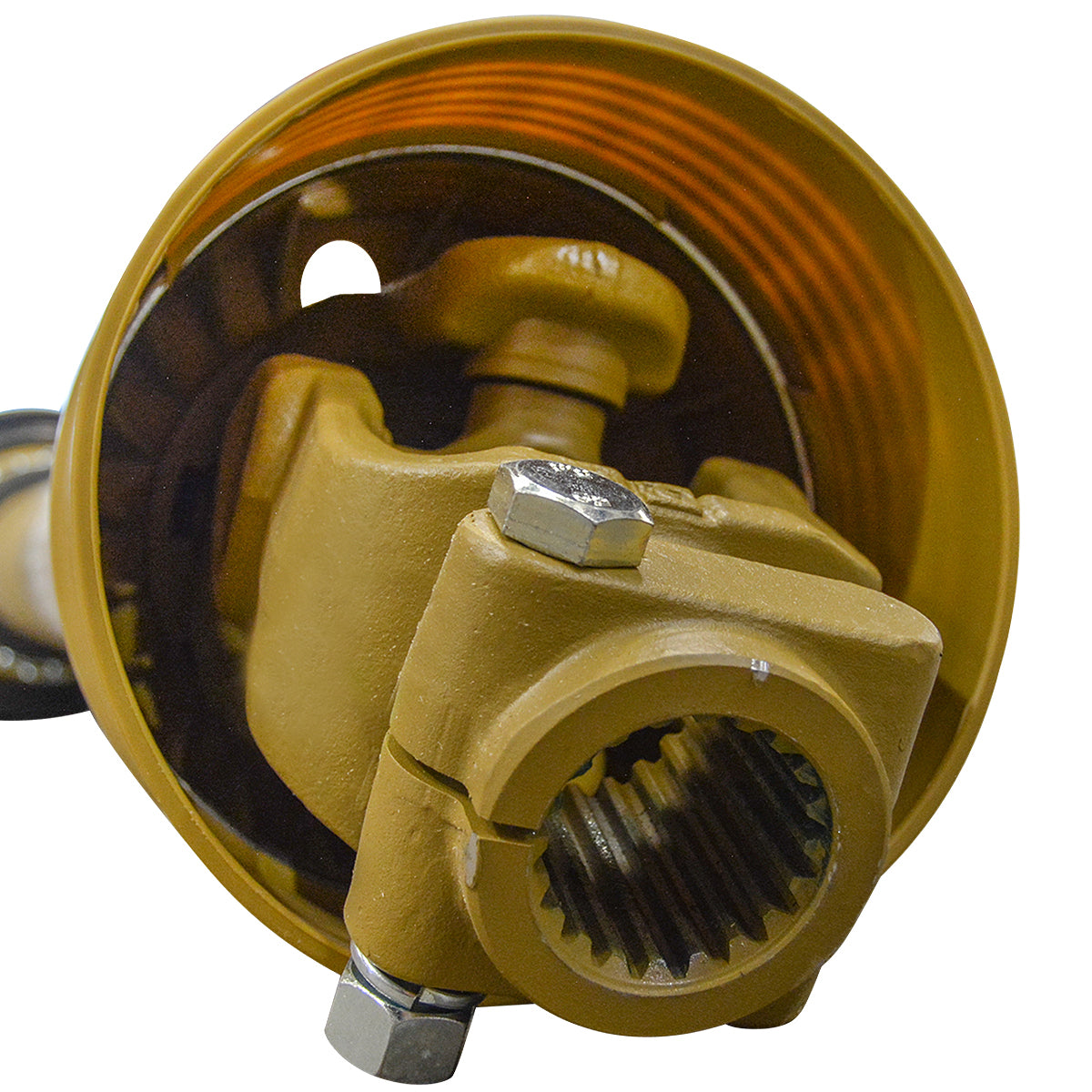

This CV6 69-1/8 in. OL series 6 constant velocity PTO shaft delivers smooth and reliable power transfer from tractor to implement. Equipped with a 6-spline 80° constant velocity MPC tractor end and a 20-spline interfering bolt implement end, this shaft is rated for 62 HP at 540 RPM and 98 HP at 1,000 RPM, making it ideal for medium-duty agricultural applications requiring consistent angular power delivery.

Featuring an 80° constant velocity u-joint for better maneuverability, this PTO shaft is built for durability and dependable performance in demanding field conditions.

Dimension

Length - Overall:

69-1/8 in.

Length - Usable:

100-1/8 in.

Weight:

53 lb

Specification

Brand:

Eurocardan

CV Angle:

80°

Eurocardan Part #:

ME61410CV-SPL

Features:

80° constant velocity u-joint for smooth power delivery and better maneuverability
Rated for 62 HP at 540 RPM and 98 HP at 1,000 RPM
6-spline tractor end and 20-spline implement end for secure connections
Series 6 construction for medium-duty agricultural applications
Interfering bolt implement end for reliable shaft-to-implement fastening

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/4 in.

Implement End Connection Type:

Interfering Bolt

Implement End Spline Count:

Series:

AJ6

Series Size:

Tractor End:

1-3/8 in.

Tractor End Connection Type:

CV MPC

Tractor End Spline Count:

Type:

Conversion Bushing
