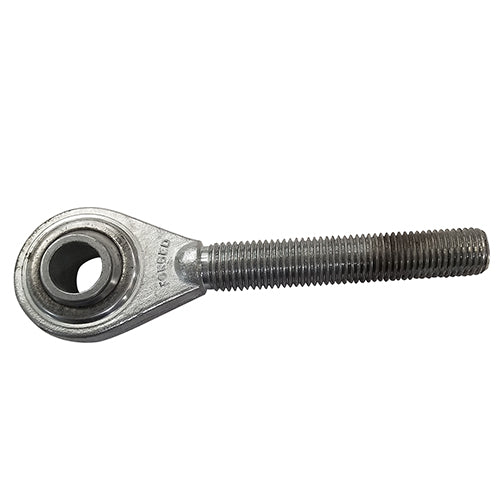

Cat 3 Top Link End LH Swivel 1-3/8 in. Thread

Description

Repair or replace your CAT 3 tractor top link with this durable left hand swivel end. Designed for reliable coupling and adjustable positioning in demanding 3-point hitch applications.

Built from mild steel construction with a trivalent white zinc finish for corrosion resistance and long lasting service life. Rotating the bolt tightens (raises) or loosens (lowers) the top link allowing as much as 30 percent upward adjustment. Adjust the top link on level ground so the back of your rotary cutter is 1 in. to 2 in. higher than the front to allow cut grass to exit properly without scraping.

Dimension

Length - Overall:

10-1/4 in.

Pin Hole Size:

1-1/4 in.

Weight:

6.17 lb

Specification

Class:

CAT 3

Features:

Mild steel construction for reliable strength and durability
Trivalent white zinc finish for superior corrosion resistance
Left hand thread for standard tractor top link assembly
Adjustable up to 30 percent upward for optimal implement positioning
CAT 3 sizing for standard 3-point hitch applications

Finish:

Trivalent White Zinc

Material:

Mild Steel

Measurement Method:

Eye to End of Thread

Style:

Left-Hand Swivel End

Thread:

1-3/8 in. Left Hand

Thread Diameter:

1-3/8 in.

Type:

Repair End

Cat 3 Top Link End LH Swivel 1-3/8 in. Thread
