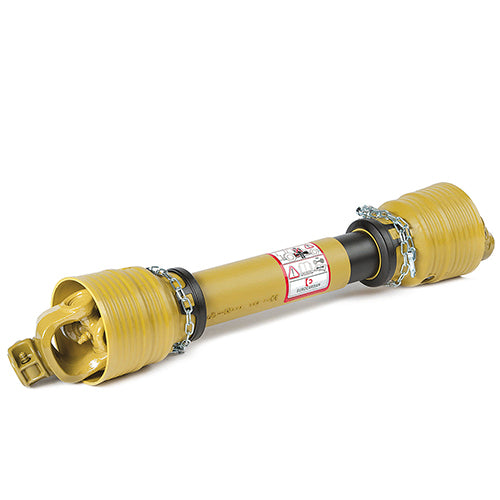

AX5 56 in. OL 1-3/8 in. 6-Spline x 1-3/8 in. Smooth PTO Shaft

Description

This AX5 series 5 PTO shaft provides dependable power transfer from tractor to implement. Equipped with a 6-spline yoke on the tractor end and a smooth round yoke on the implement end with a shear pin hole, this shaft is rated for 47 HP at 540 RPM and 72 HP at 1,000 RPM, making it suitable for a range of light to medium-duty agricultural applications.

The smooth bore and shear pin implement end yoke design provides reliable overload protection, helping safeguard both the tractor drivetrain and implement during operation. Built for durability and consistent performance in demanding field conditions.

Dimension

Implement End Bore Size:

1-3/8 in.

Implement End Hole Size:

1/2 in.

Length - Overall:

56 in.

Length - Usable:

70 in.

Pin Hole Size:

1/2 in.

Weight:

28.66 lb

Specification

Brand:

Eurocardan

Features:

Smooth implement end yoke with shear pin hole for overload protection
Rated for 47 HP at 540 RPM and 72 HP at 1,000 RPM
6-spline tractor end for secure connection
Series 5 heavy-duty construction for demanding agricultural tasks
Easy and cost-effective shear pin replacement

HP at 1000 RPM:

72 HP

HP at 540 RPM:

47 HP

Implement End Bore Type:

Smooth Round

Implement End Hole Type:

Shear Pin Hole

ReferenceNum:

1210Sp 8655139

Tractor End:

1-3/8 in.

Tractor End Spline Count:

Type:

PTO Shaft
