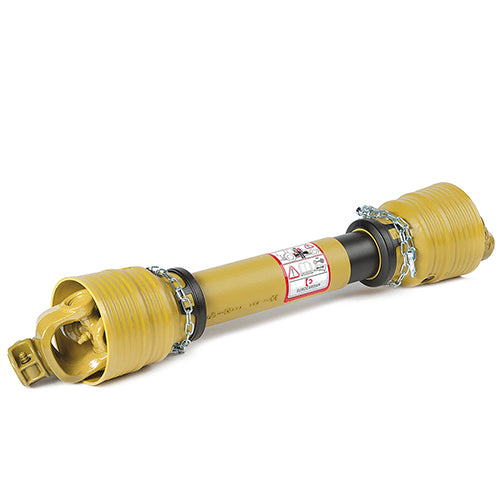

AX5 44 in. OL 1-3/8 in. 6-Spline x 1-3/8 in. Smooth Round PTO Shaft

Description

This AX5 series 5 PTO shaft provides dependable power transfer from tractor to implement. Equipped with a 6-spline yoke on the tractor end and a smooth round yoke on the implement end with a shear pin hole, this shaft is rated for 47 HP at 540 RPM and 72 HP at 1,000 RPM, making it suitable for a range of light to medium-duty agricultural applications.

The smooth bore and shear pin implement end yoke design provides reliable overload protection, helping safeguard both the tractor drivetrain and implement during operation. Built for durability and consistent performance in demanding field conditions.

Dimension

Implement End Bore Size:

1-3/8 in.

Implement End Hole Size:

1/2 in.

Length - Overall:

44 in.

Length - Usable:

62.2 in.

Pin Hole Size:

1/2 in.

Weight:

30.8 lb

Specification

Brand:

Eurocardan

Features:

Smooth round implement end yoke with shear pin hole provides overload protection to safeguard equipment during operation
Rated for 47 HP at 540 RPM and 72 HP at 1,000 RPM for versatile power delivery across various applications
6-spline tractor end ensures a secure and reliable connection to the tractor PTO
Series 5 heavy-duty construction designed for demanding agricultural tasks
Shear pin design allows for easy and cost-effective replacement in the event of an overload

HP at 1000 RPM:

72 HP

HP at 540 RPM:

47 HP

Implement End Bore Type:

Smooth Round

Implement End Hole Type:

Shear Pin Hole

Series:

AX5

Series Size:

Tractor End:

1-3/8 in.

Tractor End Spline Count:

Type:

PTO Shaft
