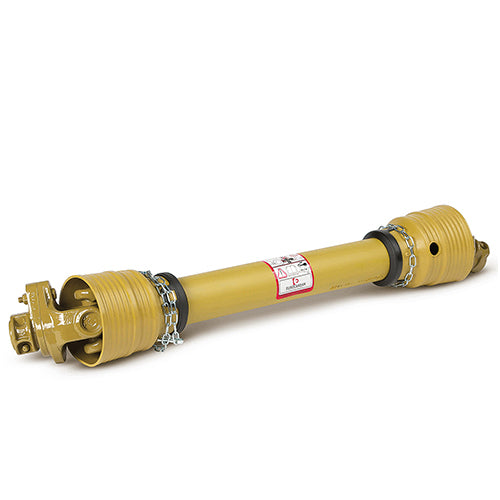

AX4 44 in. OL 1-3/8 in. 6-Spline x 1-3/8 in. 6-Spline PTO Shaft

Description

This AX4 series 4 PTO shaft provides dependable power transfer from tractor to implement. Equipped with 6-spline connections on both ends, featuring a quick detach (button style) tractor end and a shear pin flange implement end, this shaft is rated for 35 HP at 540 RPM and 54 HP at 1,000 RPM, making it ideal for light to medium-duty agricultural applications.

Designed to fit rotary cutters with shielding, this PTO shaft delivers reliable overload protection through its shear pin flange design. Built for durability and consistent performance in demanding field conditions.

Dimension

Extended Length:

63.7 in.

Length - Overall:

44 in.

Weight:

26.4 lb

Specification

Brand:

Eurocardan

Features:

Quick detach (button style) tractor end for easy connection and disconnection
Shear pin flange implement end for reliable overload protection
Rated for 35 HP at 540 RPM and 54 HP at 1,000 RPM
6-spline connections on both tractor and implement ends for secure fit
Designed to fit rotary cutters with shielding

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series:

AX4

Series Size:

To Fit:

48 in., 60 in., 72 in., 84 in. Rotary Cutters With Shielding

Tractor End:

1-3/8 in.

Tractor End Connection Style:

Quick Detach

Tractor End Spline Count:

Used On:

72 in. Lift Cutter
