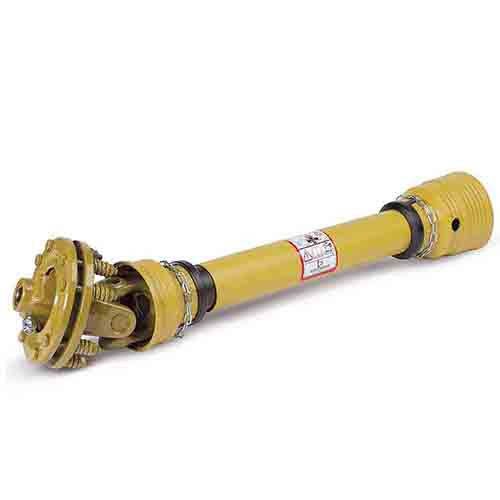

AX4 44.3 in. OL 1-3/8 in. 6-Spline x 1-3/8 in. 6-Spline PTO Shaft

Description

This AX4 series 4 PTO shaft provides dependable power transfer for regular duty lift applications. Equipped with 6-spline connections on both the tractor and implement ends, this shaft is rated for 35 HP at 540 RPM and 54 HP at 1,000 RPM, making it a reliable choice for light to medium agricultural tasks.

Featuring a slip clutch implement end yoke (FD1) for overload protection and a QD yoke on the tractor end for easy connection, this PTO shaft is designed to fit 6 ft. regular duty lifts. Built for durability and consistent performance in demanding field conditions.

Dimension

Center-to-Center:

34.6 in.

Length - Overall:

44.3 in.

Length - Usable:

62.8 in.

Weight:

38 lb

Specification

Brand:

Eurocardan

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Implement End:

1-3/8 in.

Implement End Clutch Series:

FD1

Implement End Clutch Type:

Slip Clutch

Implement End Spline Count:

Series:

AX4

Series Size:

To Fit:

6 ft. Regular Duty Lift

Type:

Slip Clutch Implement End Yoke

AX4 44.3 in. OL 1-3/8 in. 6-Spline x 1-3/8 in. 6-Spline PTO Shaft
