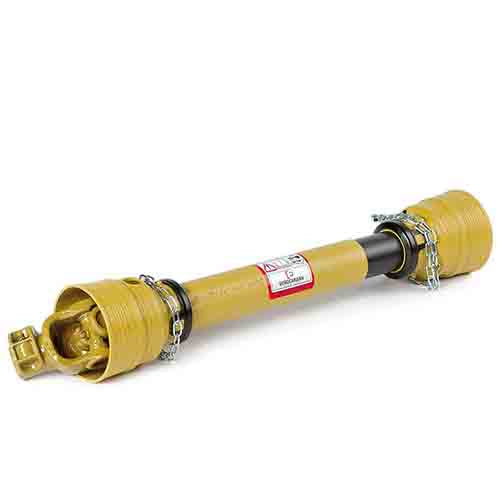

AX4 38 in. OL 1-3/8 in. 6 Spline x 5/16 in. Pin Hole

Description

Maintain reliable power transfer with this AX4 PTO assembly designed for hydraulic pump, lift mower, and agricultural PTO applications. Built for dependable performance in demanding field conditions, this PTO shaft assembly provides a secure connection between the tractor and implement.

This PTO assembly features a 38 in. overall length with 1-3/8 in. 6-spline connections and a 5/16 in. pin hole implement end. It is suitable for older Hardee side mowers and other agricultural equipment.

Dimension

Extended Length:

53-1/4 in.

Length - Overall:

38 in.

Pin Hole:

5/16 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Weight:

22 lb

Specification

Assembly Description:

AX45000-0188

Brand:

Eurocardan

Description:

1-3/8 in. x 6 Spline Yoke with 8mm (5/16 in.) Pin Hole I.E. - 1-3/8 in. x 6 Spline QD T.E.

Features:

Designed for hydraulic pump and lift mower PTO applications
Compatible with older Hardee side mowers and agricultural equipment
1-3/8 in. 6-spline PTO connections for secure attachment
Implement end features a 5/16 in. pin hole connection
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series:

AX4

Series Size:

Style:

Splined Yoke with Shear Pin

To Fit:

Hardee Side Mowers / Agricultural Equipment

Type:

PTO Assembly

AX4 38 in. OL 1-3/8 in. 6 Spline x 5/16 in. Pin Hole
