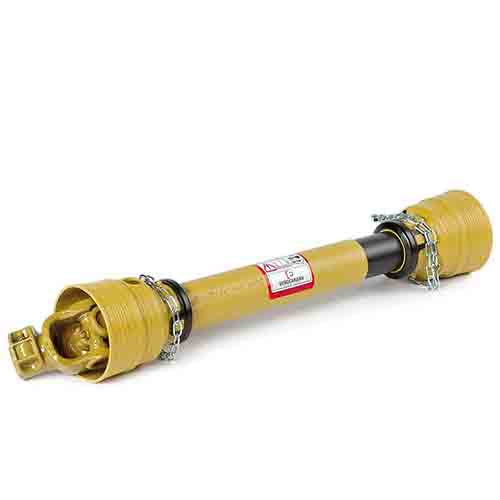

AX4 35-13/16 in. OL 1-3/8 in. 6 Spline x 1-3/8 in. Smooth Bore

Description

Maintain reliable power transfer with this AX4 PTO assembly designed for 5 ft. lift cutter applications. Built for dependable performance in demanding field conditions, this PTO shaft assembly provides a secure connection between the tractor and implement.

This PTO assembly features a 35-13/16 in. overall length with a 1-3/8 in. 6-spline tractor-end connection and a 1-3/8 in. smooth bore implement-end connection. It is suitable for 5 ft. lift cutter applications.

Dimension

Extended Length:

49-5/8 in.

Length - Overall:

35-13/16 in.

Pin Hole:

1/2 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Weight:

22.5 lb

Specification

Assembly Description:

AX45000-0182

Bore:

1-3/8 in.

Brand:

Eurocardan

Description:

1/2 in. Shear Pin - 1-3/8 in. Smooth Yoke - 1-3/8 in. x 6 Spline SPL QD

Features:

Designed for 5 ft. lift cutter PTO applications
Smooth bore implement-end yoke with shear pin protection
AX4 series assembly for dependable power transmission
Compatible with agricultural PTO driveline systems
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Max. HP @ 1000 RPM:

74 HP

Max. HP @ 540 RPM:

47 HP

Series:

AX4

Series Size:

Style:

Smooth Bore with Shear Pin

To Fit:

5 ft. Lift Cutter

Type:

PTO Assembly

Used On:

5 ft. Lift Cutter
