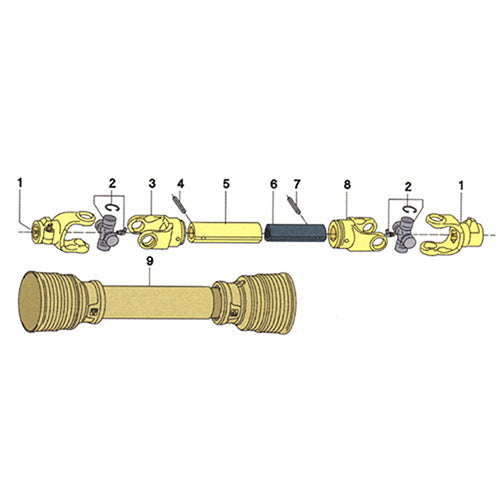

AX4 28-11/16 in. OL 1-3/8 in. 6 Spline with FD1 Slip Clutch

Product Documents

34241_cat_002.pdf

Description

Maintain reliable power transfer with this AX4 PTO assembly designed for small tiller applications. Built for dependable performance in demanding field conditions, this PTO shaft assembly provides a secure connection between the tractor and implement.

This PTO assembly features a 28-11/16 in. overall length with 1-3/8 in. 6-spline connections and an FD1 slip clutch implement end. The assembly has a 20-11/16 in. cross-to-cross measurement and is designed for dependable PTO driveline performance. Manufacturer Part Number: AX4480FD1A-SC/QR.

Dimension

Extended Length:

34-5/8 in.

Length - Overall:

28-11/16 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Weight:

20 lb

Specification

Assembly Description:

AX4480A-FD1/QR

Brand:

Eurocardan

Description:

FD1 Slip Clutch - 1-3/8 in. x 6 Spline

Features:

Designed for small tiller PTO driveline applications
FD1 slip clutch helps protect driveline components from overload
1-3/8 in. 6-spline PTO connections for secure attachment
AX4 series assembly for dependable power transmission
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series:

AX4

Series Size:

Style:

FD1 Slip Clutch Implement End / QR Tractor End

To Fit:

Small Tiller

Type:

PTO Assembly

Used On:

Small Tillers
