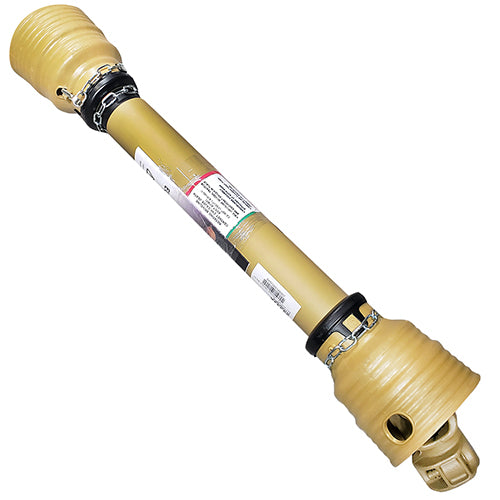

AX1 30-13/16 in. OL 1-3/8 in. 6 Spline x 1 in. Smooth Bore

Description

Maintain reliable power transfer with this AX1 PTO assembly designed for agricultural PTO applications. Built for dependable performance in demanding field conditions, this PTO shaft assembly provides a secure connection between the tractor and implement.

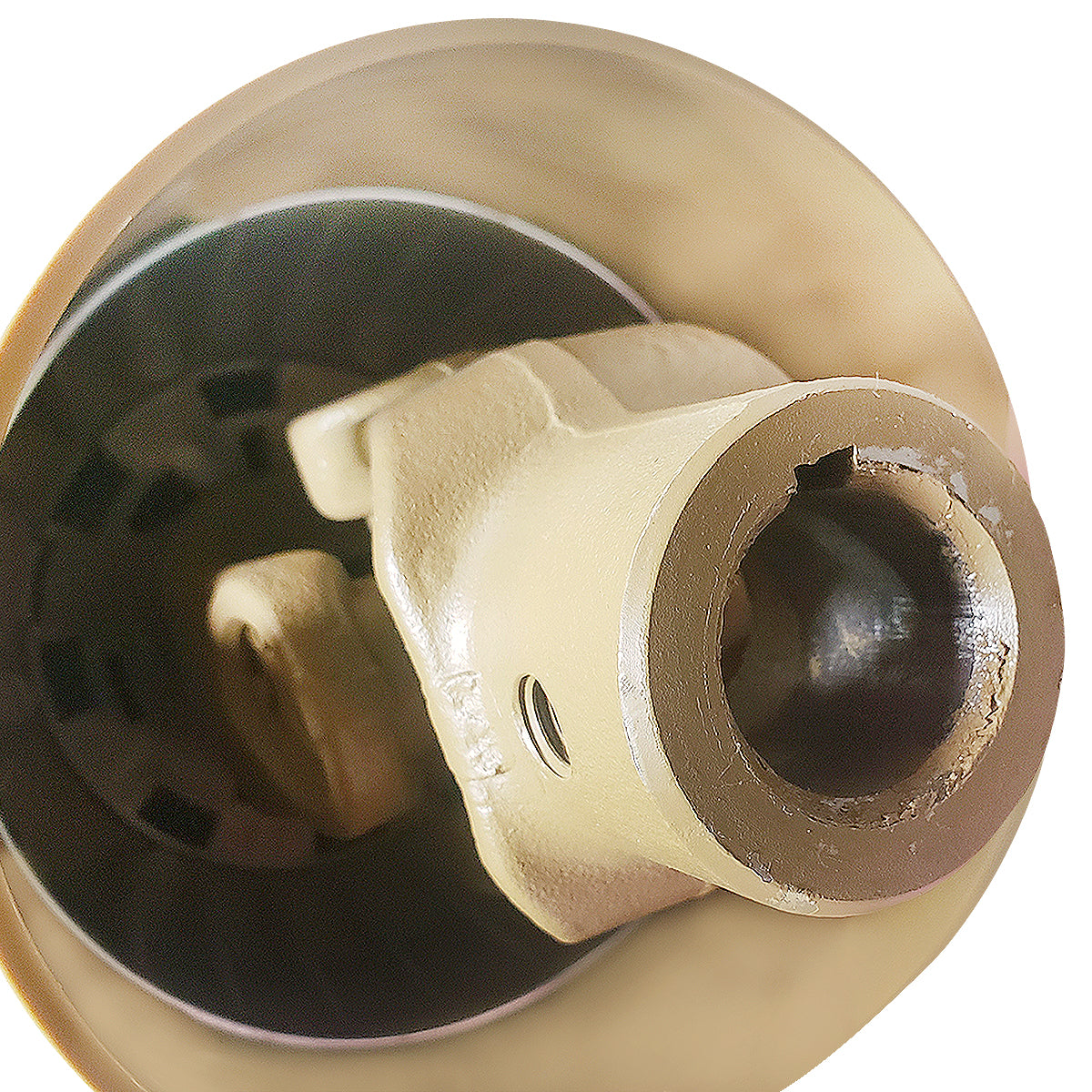

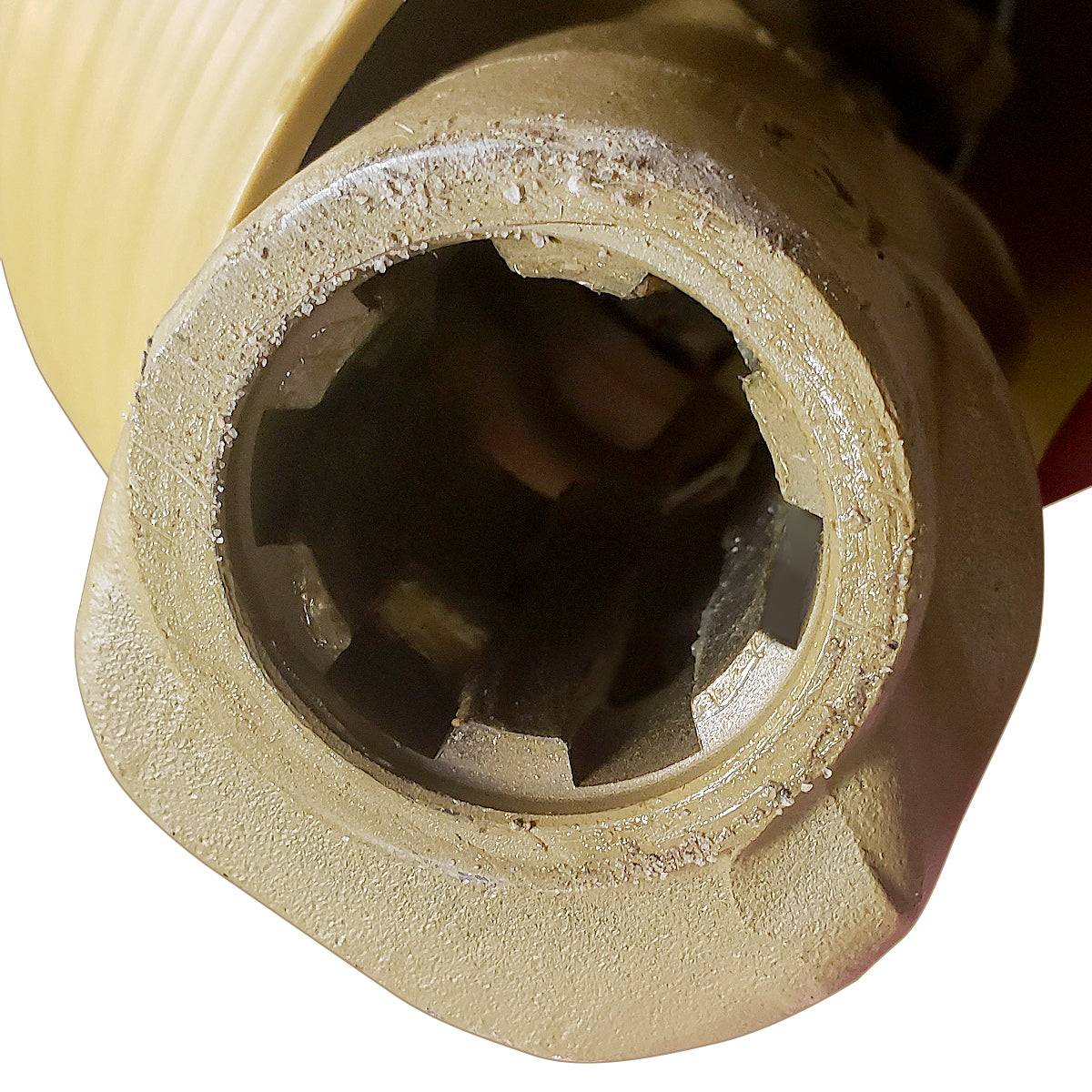

This PTO assembly features a 30-13/16 in. overall length with a 1-3/8 in. 6-spline tractor-end connection and a 1 in. smooth bore implement-end connection. Designed for TX1 series applications, it delivers dependable PTO driveline performance.

Dimension

Extended Length:

43 in.

Length - Overall:

30-13/16 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Specification

Assembly Description:

AX15000-0074

Bore:

1 in.

Brand:

Eurocardan

Description:

1 in. Smooth Bore with Keyway

HP at 1000 RPM:

24 HP

HP at 540 RPM:

16 HP

Max RPM:

540 / 1000

Series:

AX1

Series Size:

Style:

Smooth Bore Implement End / Quick-Detach Tractor End

Type:

PTO Assembly

AX1 30-13/16 in. OL 1-3/8 in. 6 Spline x 1 in. Smooth Bore
