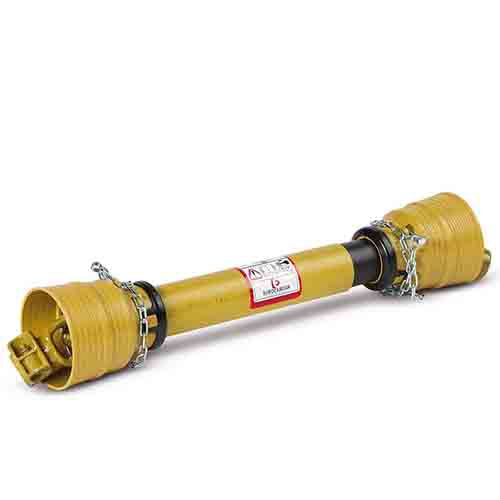

AX1 28 in. OL 1-3/8 in. 6 Spline x 3/4 in. Smooth Bore

Description

Maintain reliable power transfer with this AX1 PTO assembly designed for agricultural PTO applications. Built for dependable performance in demanding field conditions, this PTO shaft assembly provides a secure connection between the tractor and implement.

This PTO assembly features a 28 in. overall length with a 1-3/8 in. 6-spline tractor-end connection and a 3/4 in. smooth bore implement-end connection. Designed for AX1 series applications, it delivers dependable PTO driveline performance

Dimension

Extended Length:

37-7/8 in.

Length - Overall:

28 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Specification

Assembly Description:

AX15000-0075

Bore:

3/4 in.

Brand:

Eurocardan

Description:

3/4 in. Smooth Bore with Keyway

Features:

Designed for spreader PTO driveline applications
1-3/8 in. 6-spline quick disconnect yokes on both ends
AX1 series assembly for dependable power transmission
Compatible with tractor and implement PTO connections
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

24 HP

HP at 540 RPM:

16 HP

Max RPM:

540 / 1000

Series:

AX1

Series Size:

Style:

Smooth Bore with Keyway & Set Screw

To Fit:

Spreader

Type:

PTO Assembly
