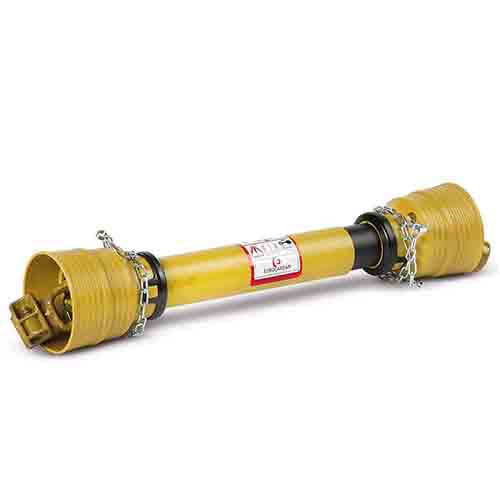

AX1 27-3/8 in. OL 1-3/8 in. 6 Spline

Description

Maintain reliable power transfer with this AX1 PTO assembly designed for spreader applications. Built for dependable performance in agricultural operations, this PTO shaft assembly provides a secure connection between the tractor and implement.

This PTO assembly features a 27-3/8 in. overall length and 1-3/8 in. 6-spline quick-disconnect connections on both ends. The assembly has a 24 in. center-to-center measurement and is designed for dependable PTO driveline performance. Manufacturer Part Number: AX1510A-SPL.

Dimension

Extended Length:

37-1/8 in.

Length - Overall:

27-3/8 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Specification

Assembly Description:

Ax10051-16407

Brand:

Eurocardan

Description:

1-3/8 in. x 6 Spline QD Yoke

Features:

Designed for spreader PTO driveline applications
1-3/8 in. 6-spline quick disconnect yokes on both ends
AX1 series assembly for dependable power transmission
Compatible with tractor and implement PTO connections
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

24 HP

HP at 540 RPM:

16 HP

Max RPM:

540 / 1000

Series:

AX1

Series Size:

Style:

Quick Disconnect Spline Yoke Both Ends

To Fit:

Spreader

Type:

PTO Assembly

Used On:

Lift Type Spreader
