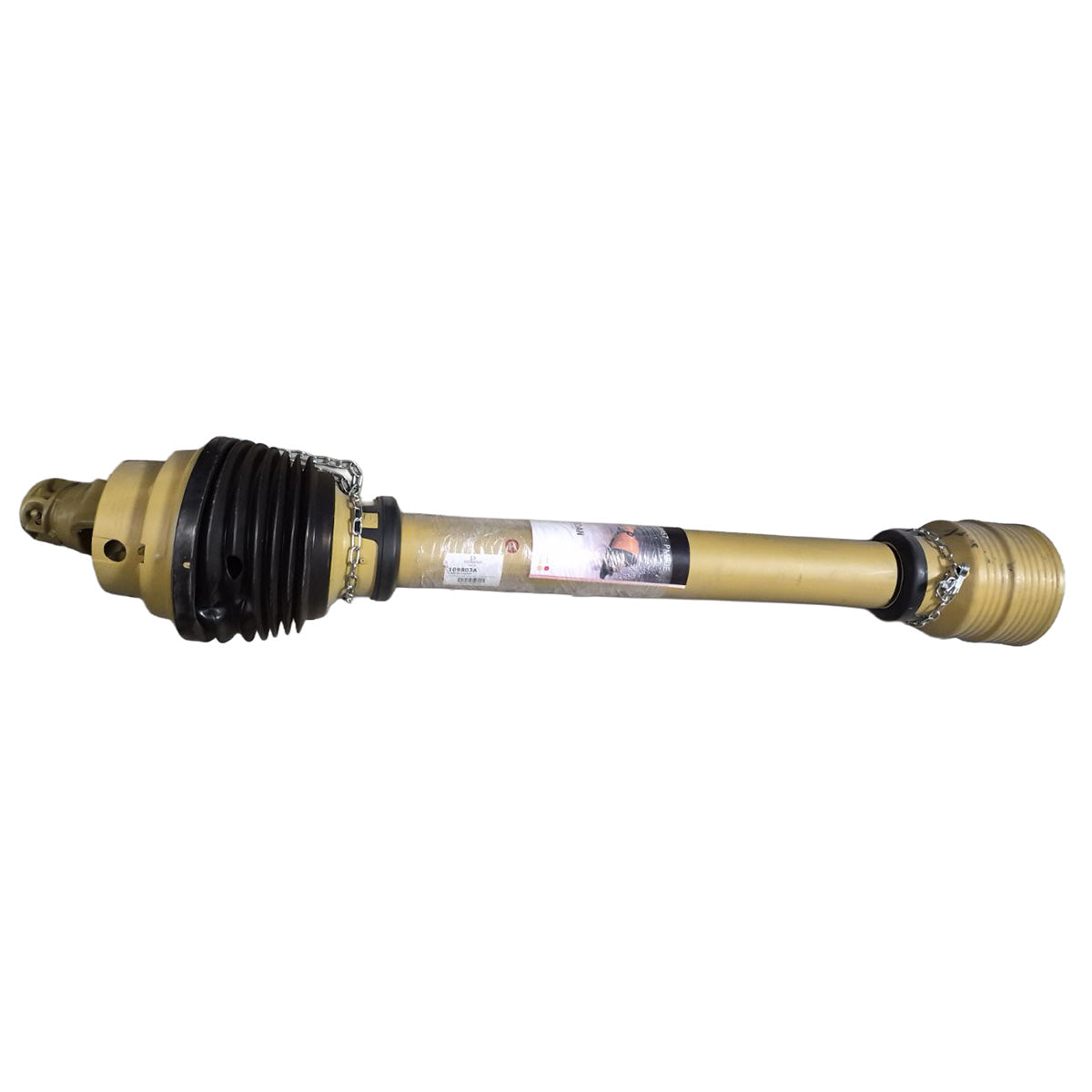

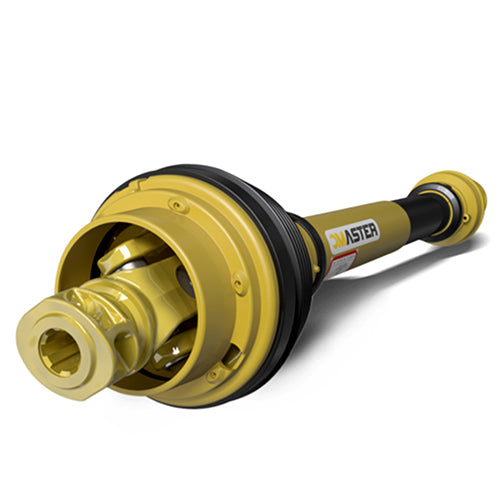

AJ8 55 in. OL 21-Spline x 20-Spline CV PTO Shaft

Description

This AJ8 55 in. OL series 8 constant velocity PTO shaft delivers smooth and reliable power transfer from tractor to implement. Equipped with a 21-spline 80° constant velocity MPC tractor end and a 20-spline interfering bolt implement end with slip clutch, this shaft is rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM, making it ideal for heavy-duty agricultural applications.

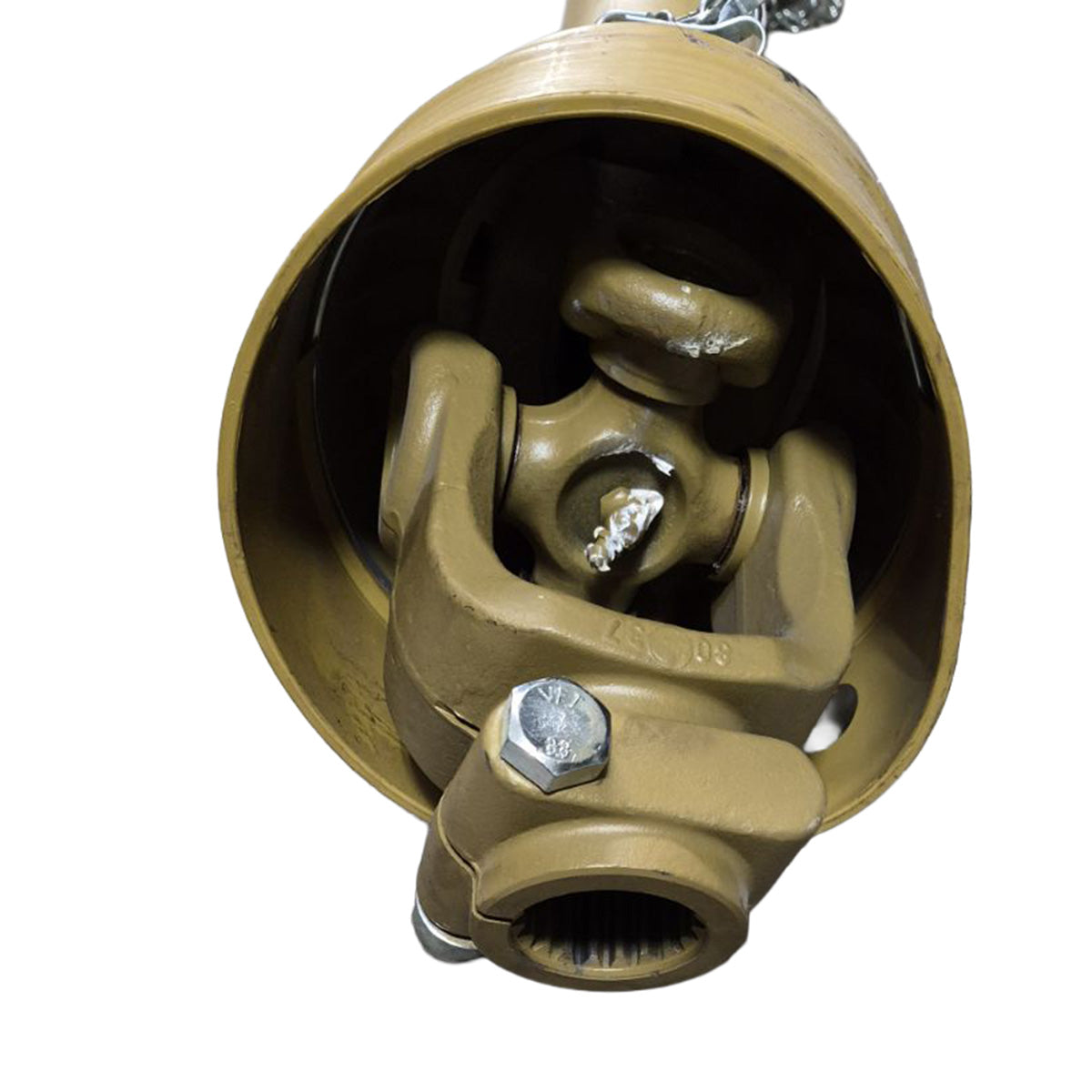

Featuring an 80° constant velocity u-joint for better maneuverability and a slip clutch implement end yoke for overload protection, this PTO shaft is built for durability and dependable performance in demanding field conditions.

Dimension

Length - Overall:

55 in.

Weight:

70.72 lb

Width - Overall:

75-1/2 in

Specification

Brand:

Eurocardan

Capacity:

91 HP at 540 RPM / 145 HP at 1,000 RPM

CV Angle:

80° MPC

Eurocardan Part #:

ME81020CV-SPL

Features:

80° constant velocity u-joint for smooth power delivery and better maneuverability
Slip clutch implement end yoke for reliable overload protection
Rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM
21-spline tractor end and 20-spline implement end for secure connections
Series 8 heavy-duty construction for demanding agricultural applications

HP at 1000 RPM:

145

HP at 540 RPM:

Implement End:

1-3/4 in.

Implement End Connection Type:

Interfering Bolt, Slip Clutch

Implement End Spline Count:

Series:

AJ8

Series Size:

Tractor End:

1-3/8 in.

Tractor End Spline Count:

Type:

Conversion Bushing

AJ8 55 in. OL 21-Spline x 20-Spline CV PTO Shaft
