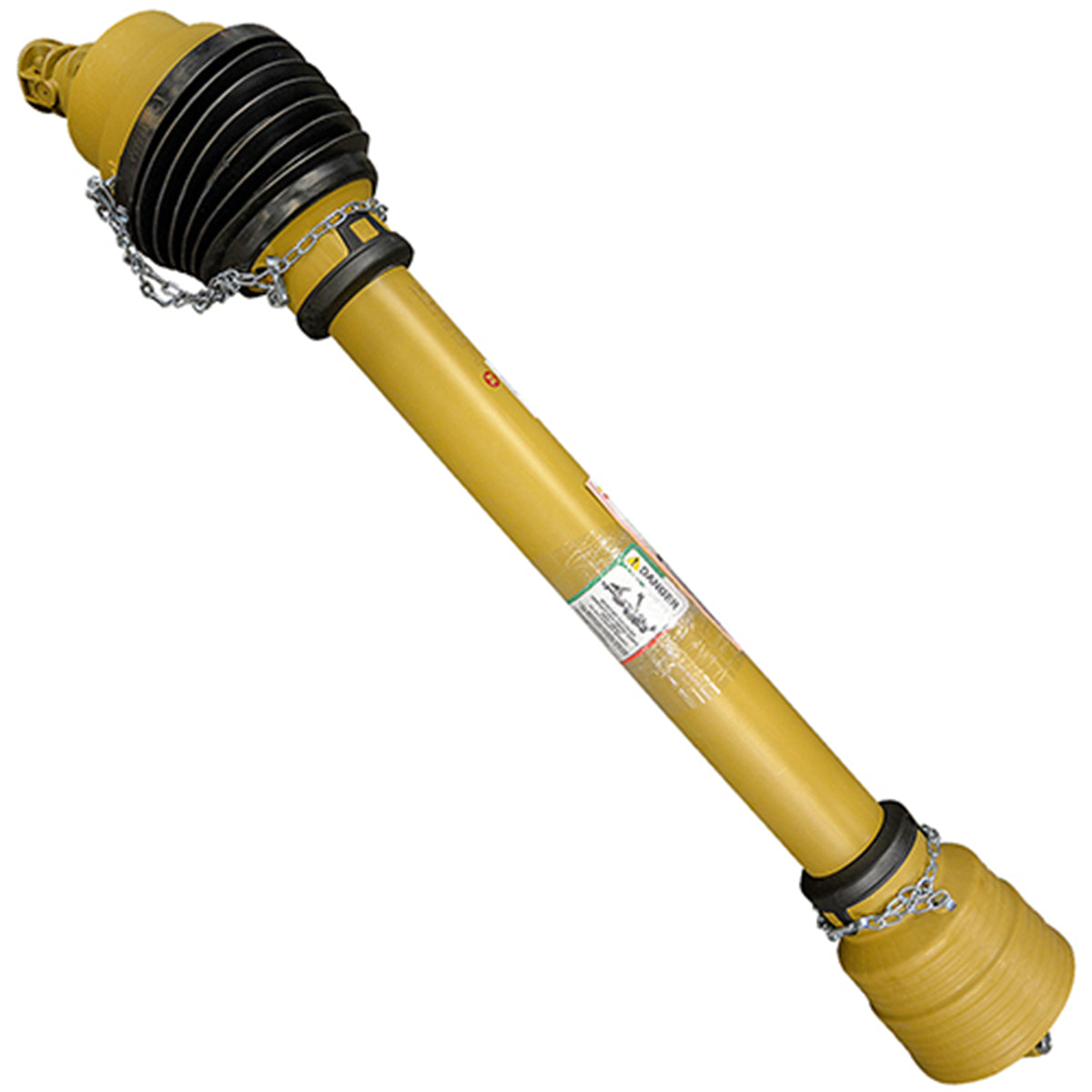

AJ8 55 in. OL 1-3/4 in. 20-Spline x 1-3/4 in. 20-Spline PTO Shaft

Description

This AJ8 series 8 PTO shaft delivers reliable power transfer between tractor and implement. Equipped with 20-spline connections on both the tractor and implement ends, this shaft is rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM, making it well suited for a wide range of agricultural applications.

Featuring a slip clutch implement end yoke for overload protection, this PTO shaft is designed to fit select John Deere® CX20 rotary cutters. The durable construction ensures long-lasting performance in demanding field conditions, providing dependable power delivery from tractor to implement.

Dimension

Length - Overall:

55 in.

Length - Usable:

75-1/2 in.

Weight:

72.93 lb

Specification

Brand:

Eurocardan

Features:

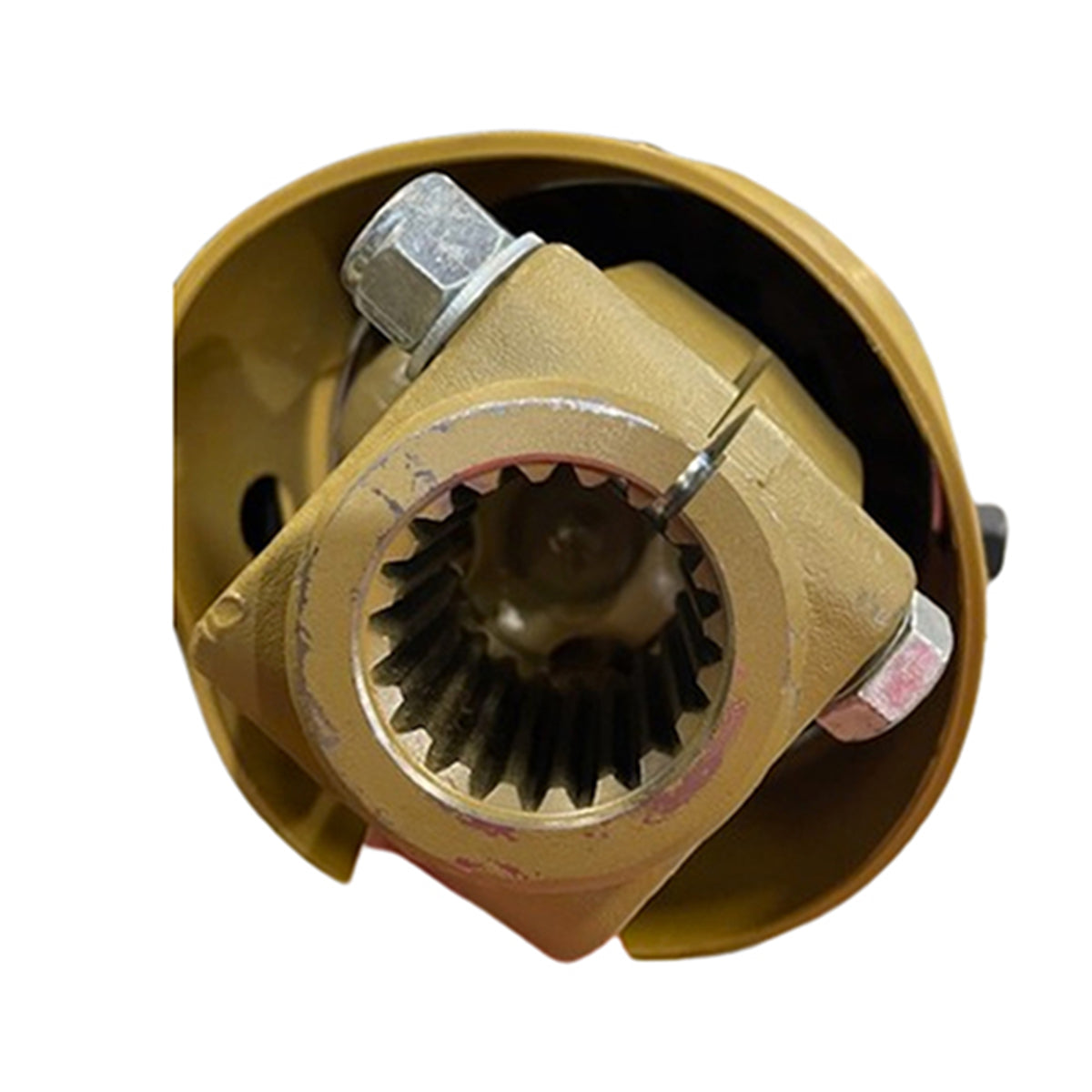

Slip clutch implement end yoke provides overload protection to safeguard equipment and drivetrain during operation
Rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM for versatile, high-performance power delivery

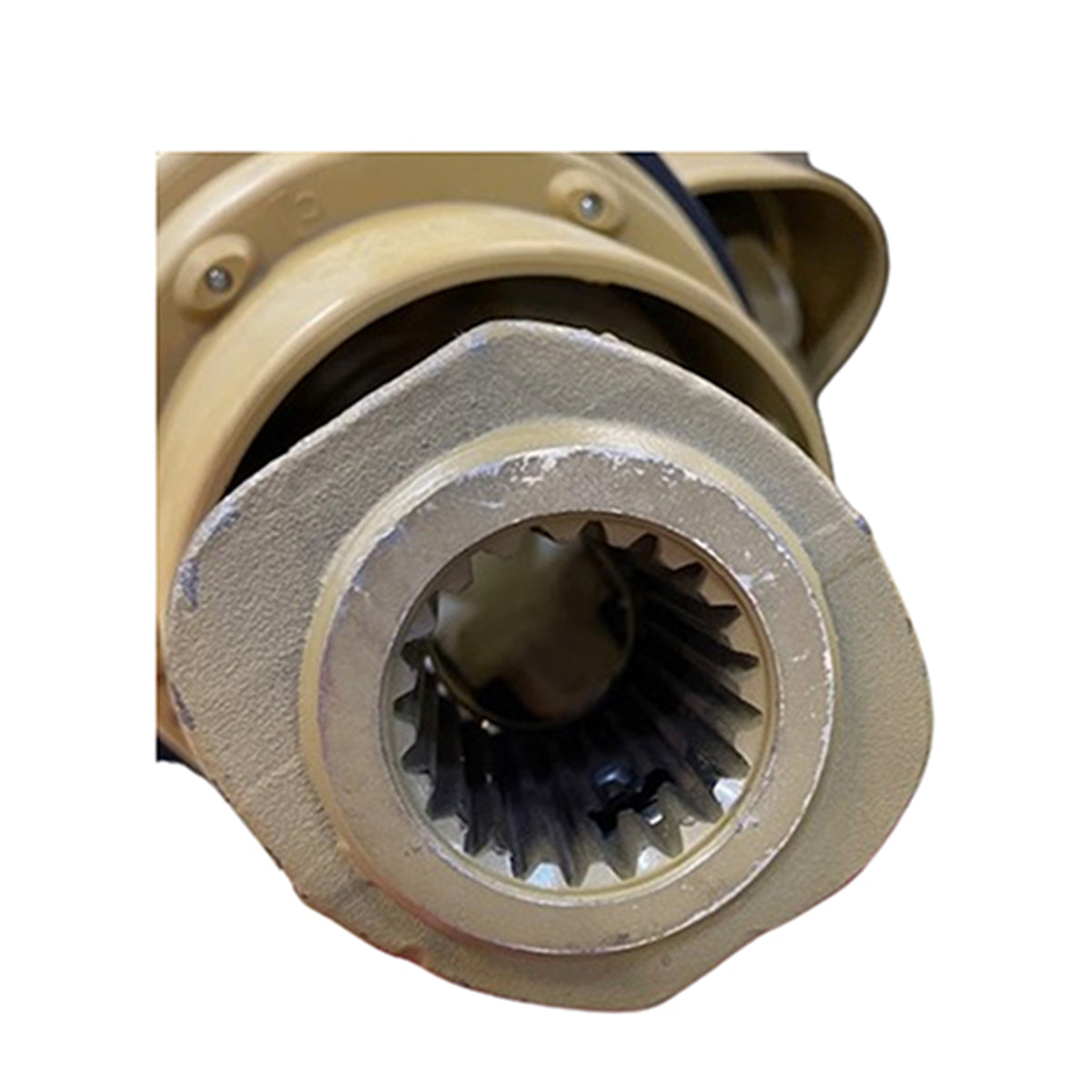

20-spline connections on both tractor and implement ends ensure a secure, universal fit
Series 8 heavy-duty construction designed for demanding agricultural applications including rotary cutters
Designed to fit select John Deere® CX20 rotary cutters for convenient replacement and compatibility

HP at 1000 RPM:

145 HP

HP at 540 RPM:

91 HP

Implement End:

1-3/4 in.

Implement End Spline Count:

Series:

AJ8

Series Size:

Tractor End:

1-3/4 in.

Tractor End Spline Count:

Type:

Slip Clutch Implement End Yoke

AJ8 55 in. OL 1-3/4 in. 20-Spline x 1-3/4 in. 20-Spline PTO Shaft
