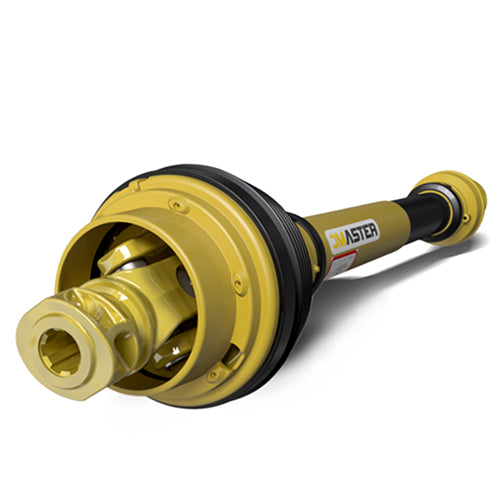

AJ8 51 in. OL 6-Spline x 20-Spline CV PTO Shaft

Description

This AJ8 51 in. OL series 8 constant velocity PTO shaft assembly is designed for use with pull-type rotary cutters. Equipped with a 6-spline tractor end with metal pull collar and a 20-spline interfering bolt implement end, this shaft is rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM, making it ideal for heavy-duty agricultural applications.

Featuring an 80° constant velocity u-joint for better maneuverability, this PTO shaft includes protective shielding for operator safety. The shielding should always be maintained and kept in working order during operation.

Dimension

Length - Overall:

51 in.

Length - Usable:

68-13/32 in.

Weight:

73 lb

Specification

Brand:

Eurocardan

CV Angle:

80° CV Metal Pull Collar

Features:

80° constant velocity u-joint for smooth power delivery and better maneuverability
Rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM
Metal pull collar tractor end and interfering bolt implement end for secure connections
Protective shielding included for operator safety
Series 8 heavy-duty construction designed for pull-type rotary cutters

HP at 1000 RPM:

145

HP at 540 RPM:

Implement End:

1-3/4 in.

Implement End Connection Type:

Interfering Bolt

Implement End Spline Count:

Series:

AJ8

Series Size:

To Fit:

Rotary Cutters

Tractor End:

1-3/8 in.

Tractor End Spline Count:

Type:

Conversion Bushing

Used On:

Pull-Type Rotary Cutters

AJ8 51 in. OL 6-Spline x 20-Spline CV PTO Shaft
