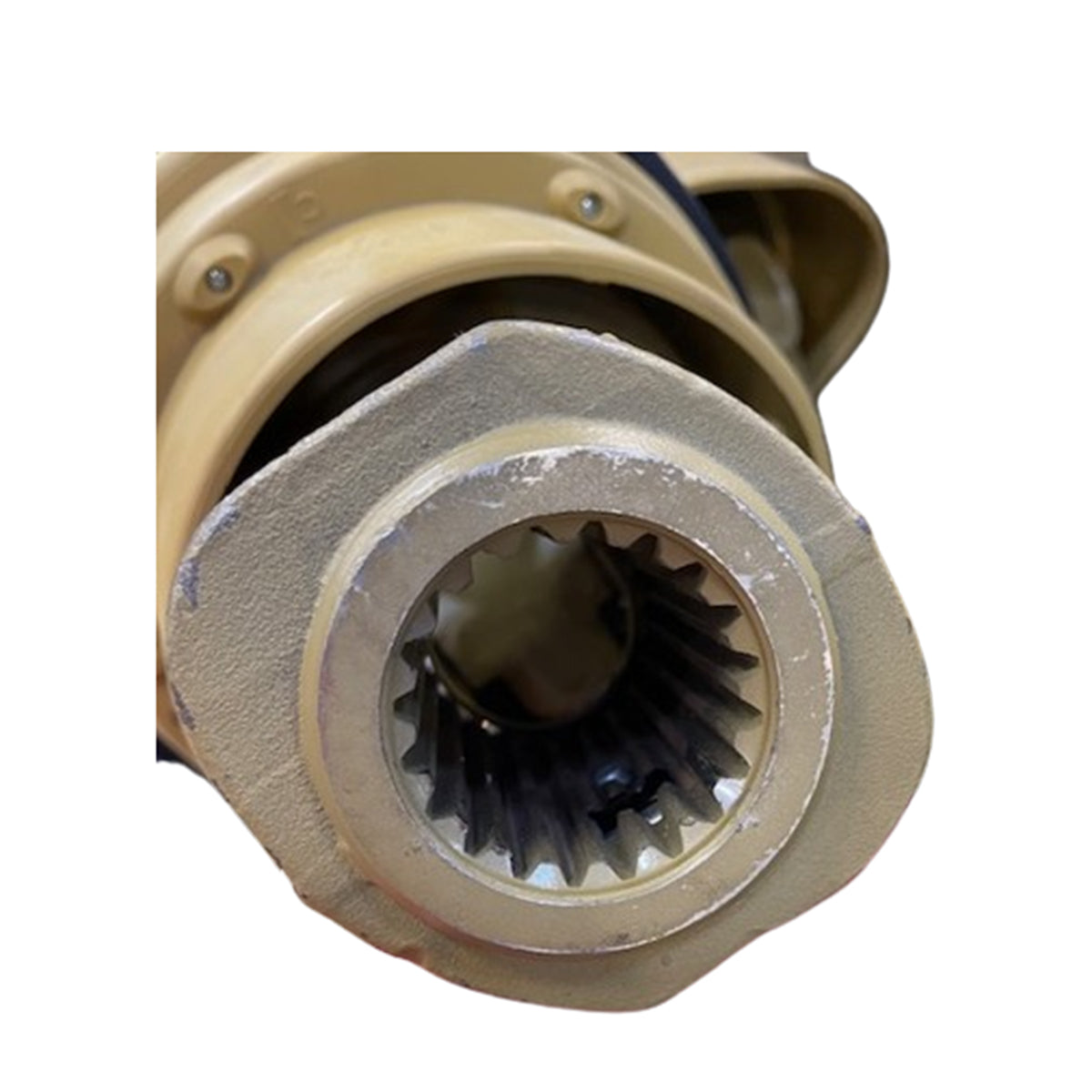

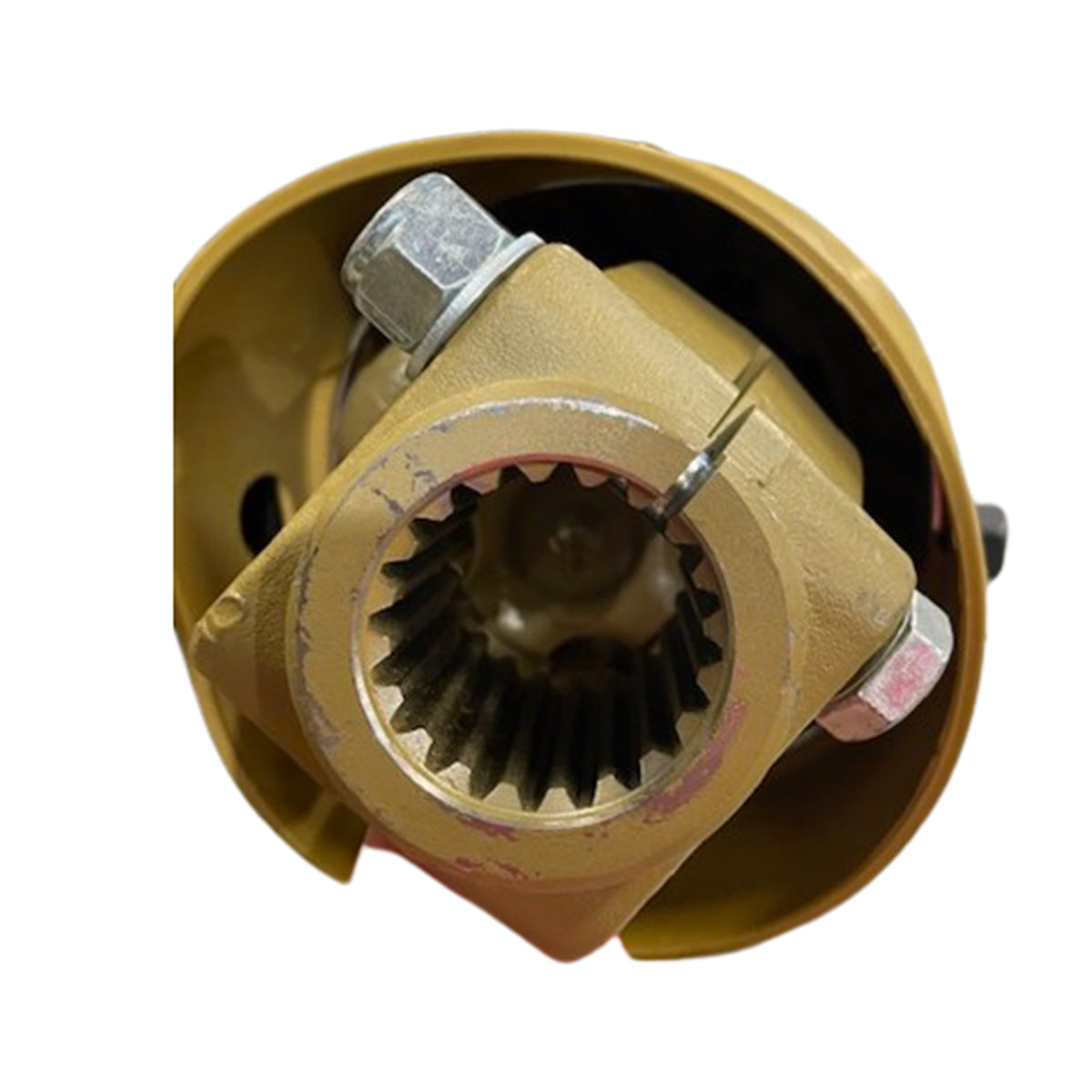

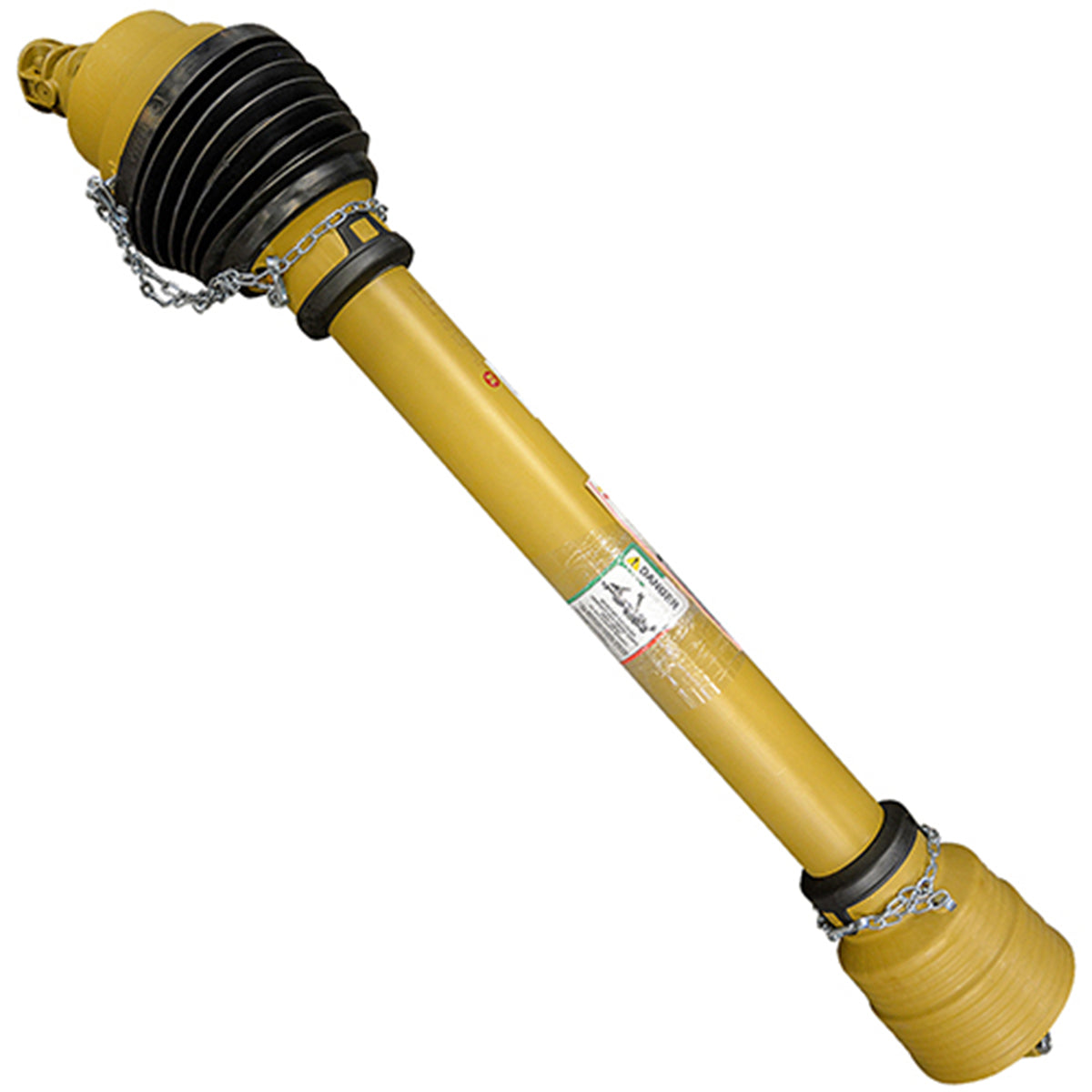

AJ8 51 in. OL 20-Spline x 20-Spline CV PTO Shaft

Description

This AJ8 51 in. OL series 8 constant velocity PTO shaft delivers smooth and reliable power transfer from tractor to implement. Equipped with 20-spline connections on both the tractor and implement ends with a slip clutch implement end yoke, this shaft is rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM, making it ideal for heavy-duty rotary cutter applications.

Featuring a constant velocity design for uniform rotation at varying angles and a slip clutch for overload protection, this PTO shaft includes protective shielding for operator safety. The shielding should always be maintained and kept in working order during operation.

Dimension

Length - Overall:

51 in.

Length - Usable:

69 in.

Weight:

70.72 lb

Specification

Brand:

Eurocardan

Features:

Constant velocity design for smooth power delivery at varying angles
Slip clutch implement end yoke for reliable overload protection
Rated for 91 HP at 540 RPM and 145 HP at 1,000 RPM
20-spline connections on both tractor and implement ends for secure fit
Protective shielding included for operator safety

HP at 1000 RPM:

145

HP at 540 RPM:

Implement End:

1-3/4 in.

Implement End Connection Type:

Slip Clutch

Implement End Spline Count:

Series:

AJ8

Series Size:

To Fit:

Rotary Cutters

Tractor End:

1-3/4 in.

Tractor End Spline Count:

Type:

Conversion Bushing

Used On:

Rotary Cutters

AJ8 51 in. OL 20-Spline x 20-Spline CV PTO Shaft
